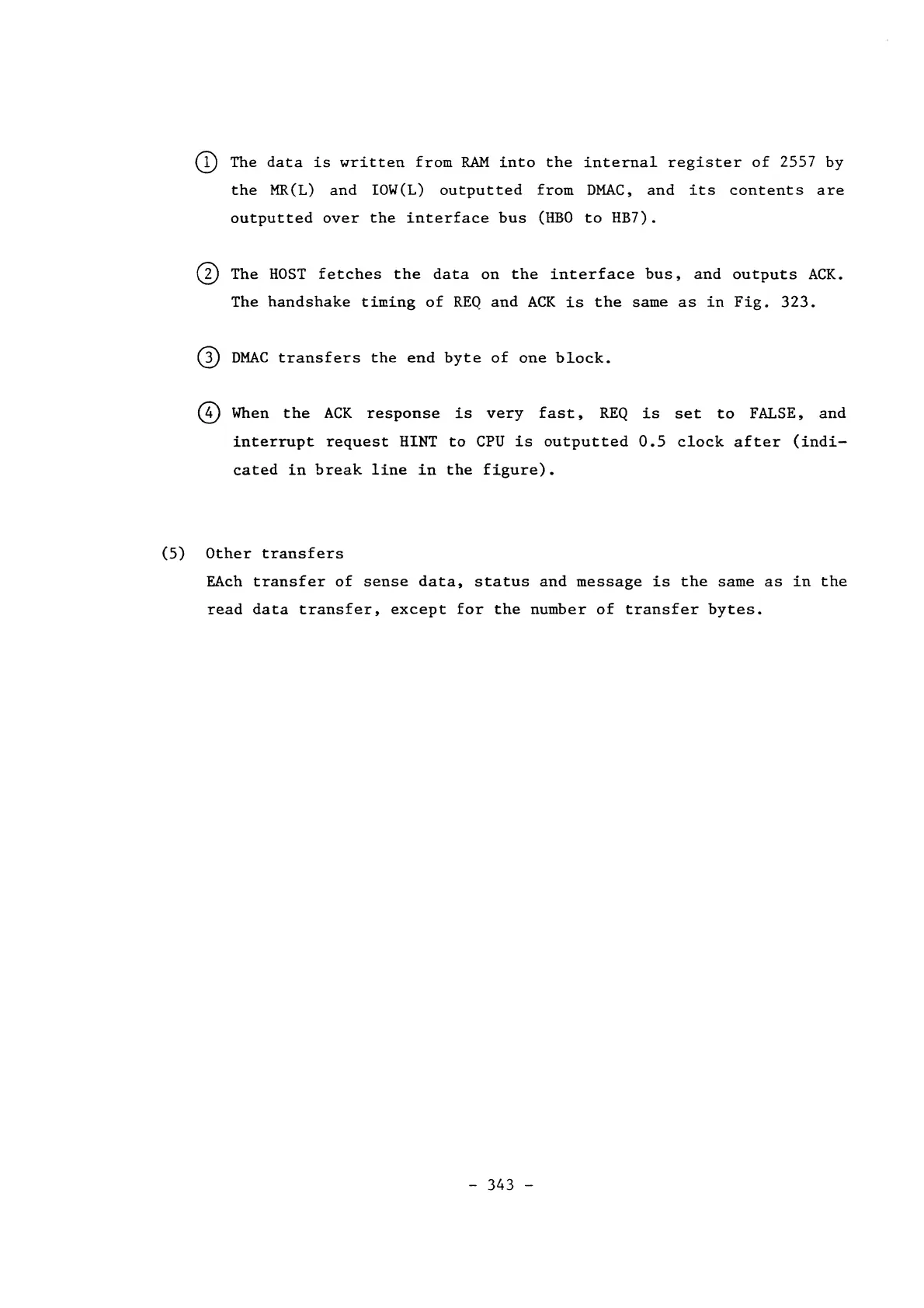

CD
The
data
is
written
from
RAM
into
the
internal
register
of
2557
by
the
MR(L)
and
roWeL)
outputted
from
DMAC,
and
its
contents
are
outputted
over
the
interface
bus
(HBO
to
HB7).
CD
The
HOST
fetches
the
data
on
the
interface
bus,
and
outputs
ACK.
The
handshake
timing
of
REQ
and
ACK
is
the
same
as
in
Fig.
323.
(]0
DMAC
transfers
the
end
byte
of
one
block.
o
When
the
ACK
response
is
very
fast,
REQ
is
set
to
FALSE,
and
interrupt
request
HINT
to
CPU
is
outputted
0.5
clock
after
(indi-
cated
in
break
line
in
the
figure).
(5)
Other
transfers
EAch
transfer
of
sense
data,
status
and
message
is
the
same
as
in
the
read
data
transfer.
except
for
the
number
of
transfer
bytes.
- 343 -
