(33) TP6 (CPU clock) PCBA Interface Control
Test point for measuring the CPU clock signal.
TP6 is used to check the CPU clock frequency.
TP6
Frequency = 3.07 MHz

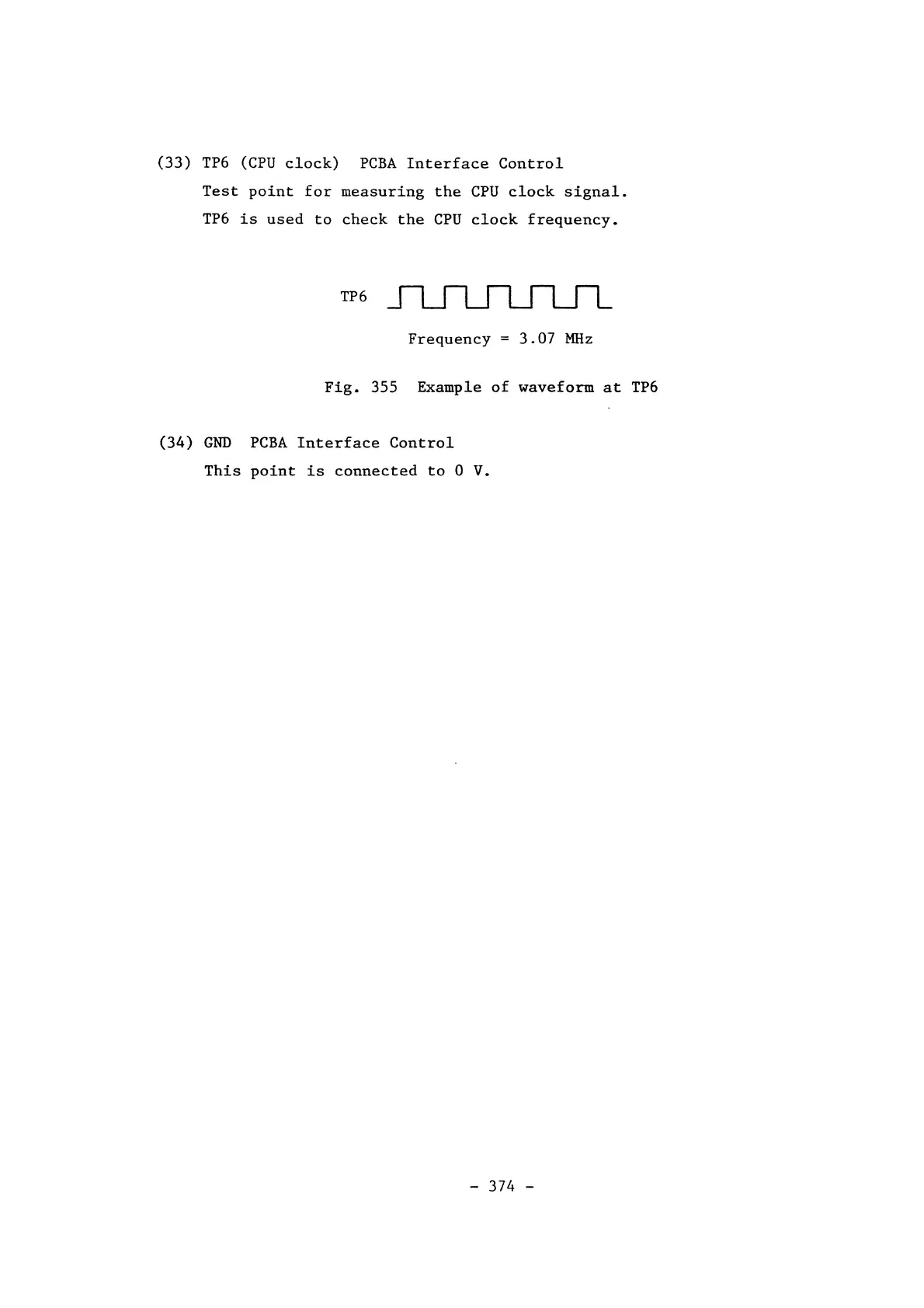

Fig. 355 Example of waveform at TP6
(34) GND PCBA Interface Control
This point is connected to 0 V.
