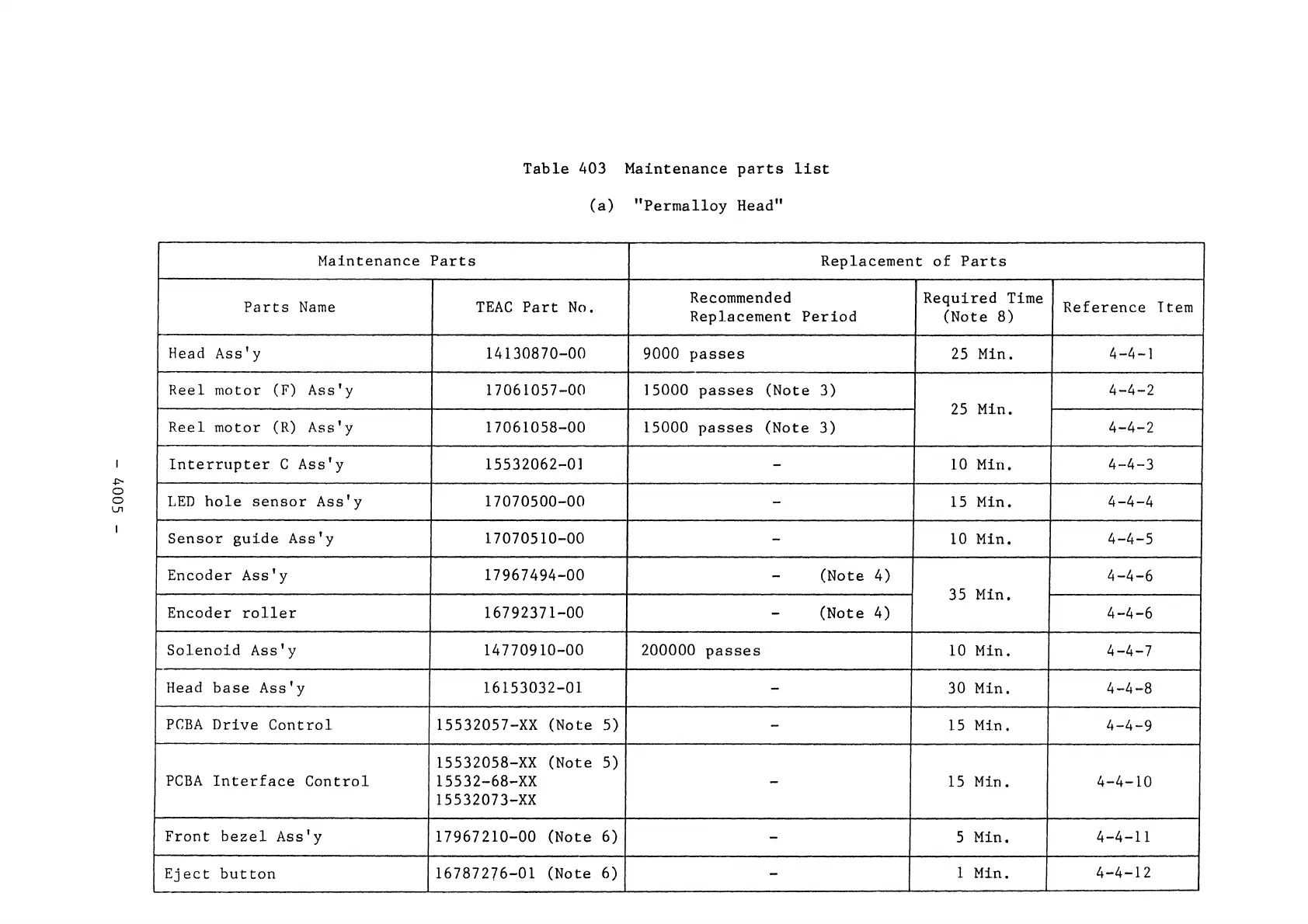

Table 403 Maintenance parts list
(a) "Permalloy Head"
Maintenance Parts
Replacement of Parts
Parts Name
TEAC Part No.
Recommended
Required Time
Replacement Period (Note 8)
Head
Assly
14130870-00 9000 passes
25 Min.
Reel motor (F) Assly
17061057-00
15000
passes (Note 3)
25 Min.
Reel motor (R) Assly
17061058-00 15000 passes (Note 3)
Interrupter C Assly
15532062-0)
-
10 Min.
LED hole sensor Assly
17070500-00
-
15 Min.
Sensor guide Assly
17070510-00
-
10 Min.
Encoder Assly
17967494-00
-
(Note 4)
35 Min.
Encoder roller
16792371-00
-
(Note 4)
Solenoid Assly
14770910-00
200000
passes
10 Min.
Head
base Assly
16153032-01
-
30 Min.
peBA Drive Control
15532057-XX (Note 5)
-
15 Min.
15532058-XX (Note 5)
PCBA Interface Control
15532-68-XX
-
15 Min.
15532073-XX
Front bezel Assly
17967210-00 (Note 6)
-
5 Min.
Ej ect button 16787276-01 (Note 6)
-
1 Min.
-- --_ .. _-
-- ---_ .. _----- ---
-
Reference Item
4-4-)
4-4-2
4-4-2
4-4-3
4-4-4
4-4-5
4-4-6
4-4-6
4-4-7
4-4-8
4-4-9
i
4-4-10
4-4-11
4-4-12
