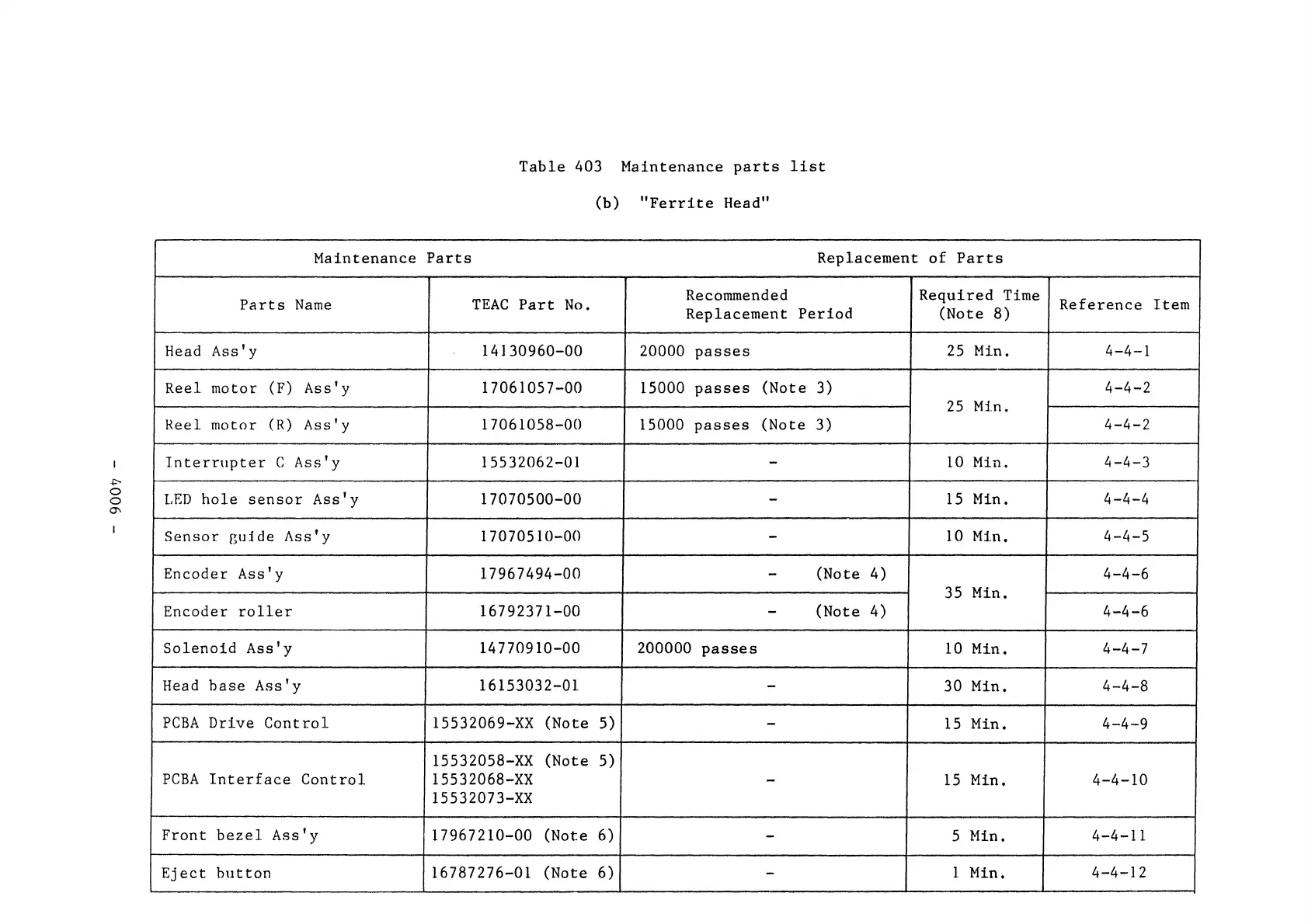

Table 403 Maintenance parts list
(b) "Ferrite Head"
Maintenance Parts Replacement of Parts
Parts Name TEAC Part No.
Recommended Required Time
Replacement
Period
(Note 8)
Head Ass'y 14130960-00 20000 passes 25 Min.
Reel motor (F)
Ass'y 17061057-00 15000 passes (Note 3)
25 Min.
Reel motor (R) Ass'y
17061058-00
15000
passes (Note 3)
Interrupter C Ass'y
15532062-01
-
10 Min.
LED hole sensor Ass'y
17070500-00
-
15 Min.
Sensor guide Ass'y
17070510-00
-
10 Min.
Encoder
Ass'y
17967494-00
-
(Note 4)
35 Min.
Encoder
roller 16792371-00
-
(Note 4)
Solenoid Ass'y
14770910-00 200000 passes
10 Min.
Head
base Ass'y
16153032-01
-
30 Min.
PCBA Drive Control
15532069-XX (Note 5)
-
15 Min.
15532058-XX (Note 5)
PCBA Interface Control
15532068-XX
-
15 Min.
15532073-XX
Front bezel Ass'y
17967210-00 (Note 6)
-
5 Min.
Eject button 16787276-01 (Note 6)
-
1 Min.
-----------_._._--- _._--------- ---~~
Reference Item
4-4-1
4-4-2
4-4-2
4-4-3
4-4-4
4-4-5
4-4-6
4-4-6
4-4-7
4-4-8
4-4-9
4-4-10
4-4-11
4-4-12
