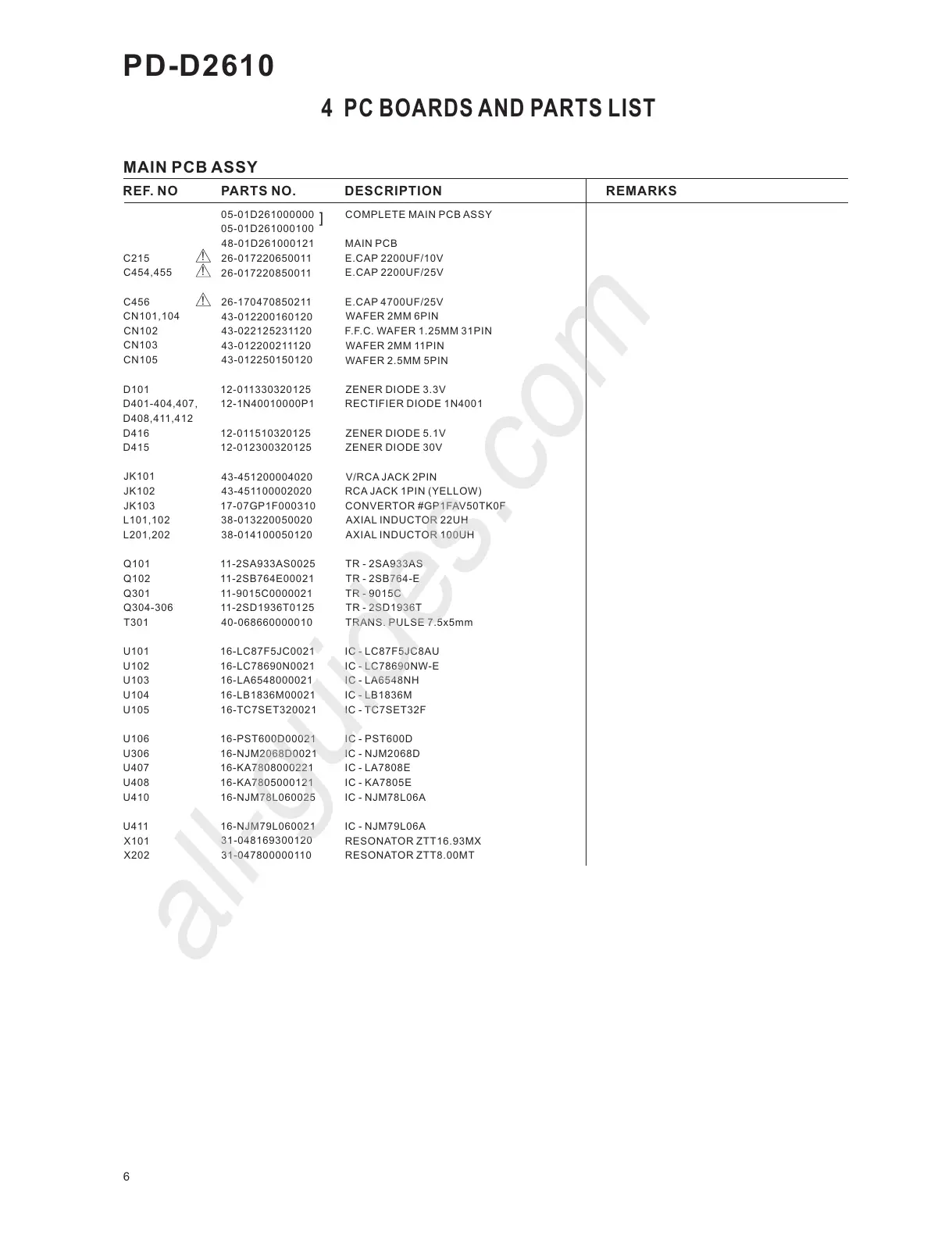

4 PC BOARDS AND PARTS LIST

MAIN PCB ASSY

REF. NO

REMARKS

PARTS NO.

DESCRIPTION

PD-D2610

05-01D261000000 COMPLETE MAIN PCB ASSY

]

48-01D261000121

MAIN PCB

05-01D261000100

U103

16-LA6548000021

IC - LA6548NH

U104

16-LB1836M00021

IC - LB1836M

U102

16-LC78690N0021

IC - LC78690NW-E

U101

16-LC87F5JC0021

IC - LC87F5JC8AU

U105

16-TC7SET320021

IC - TC7SET32F

JK103

17-07GP1F000310

CONVERTOR #GP1FAV50TK0F

CN102

43-022125231120

F.F.C. WAFER 1.25MM 31PIN

JK102

43-451100002020

RCA JACK 1PIN (YELLOW)

JK101

43-451200004020 V/RCA JACK 2PIN

Q101

11-2SA933AS0025

TR - 2SA933AS

Q102

11-2SB764E00021

TR - 2SB764-E

Q304-306

11-2SD1936T0125

TR - 2SD1936T

Q301

11-9015C0000021

TR - 9015C

D101

12-011330320125

ZENER DIODE 3.3V

D416

12-011510320125

ZENER DIODE 5.1V

D415

12-012300320125

ZENER DIODE 30V

D401-404,407,

D408,411,412

12-1N40010000P1

RECTIFIER DIODE 1N4001

U408

16-KA7805000121

IC - KA7805E

U407

16-KA7808000221

IC - LA7808E

U306

16-NJM2068D0021

IC - NJM2068D

U410

16-NJM78L060025

IC - NJM78L06A

U411

16-NJM79L060021

IC - NJM79L06A

U106

16-PST600D00021

IC - PST600D

C215

26-017220650011

E.CAP 2200UF/10V

C454,455

26-017220850011

E.CAP 2200UF/25V

C456

26-170470850211

E.CAP 4700UF/25V

X202

31-047800000110

RESONATOR ZTT8.00MT

X101

31-048169300120

RESONATOR ZTT16.93MX

L101,102

38-013220050020

AXIAL INDUCTOR 22UH

L201,202

38-014100050120

AXIAL INDUCTOR 100UH

T301

40-068660000010

TRANS. PULSE 7.5x5mm

CN101,104

43-012200160120

WAFER 2MM 6PIN

CN103

43-012200211120

WAFER 2MM 11PIN

CN105

43-012250150120

WAFER 2.5MM 5PIN
