REF. NO

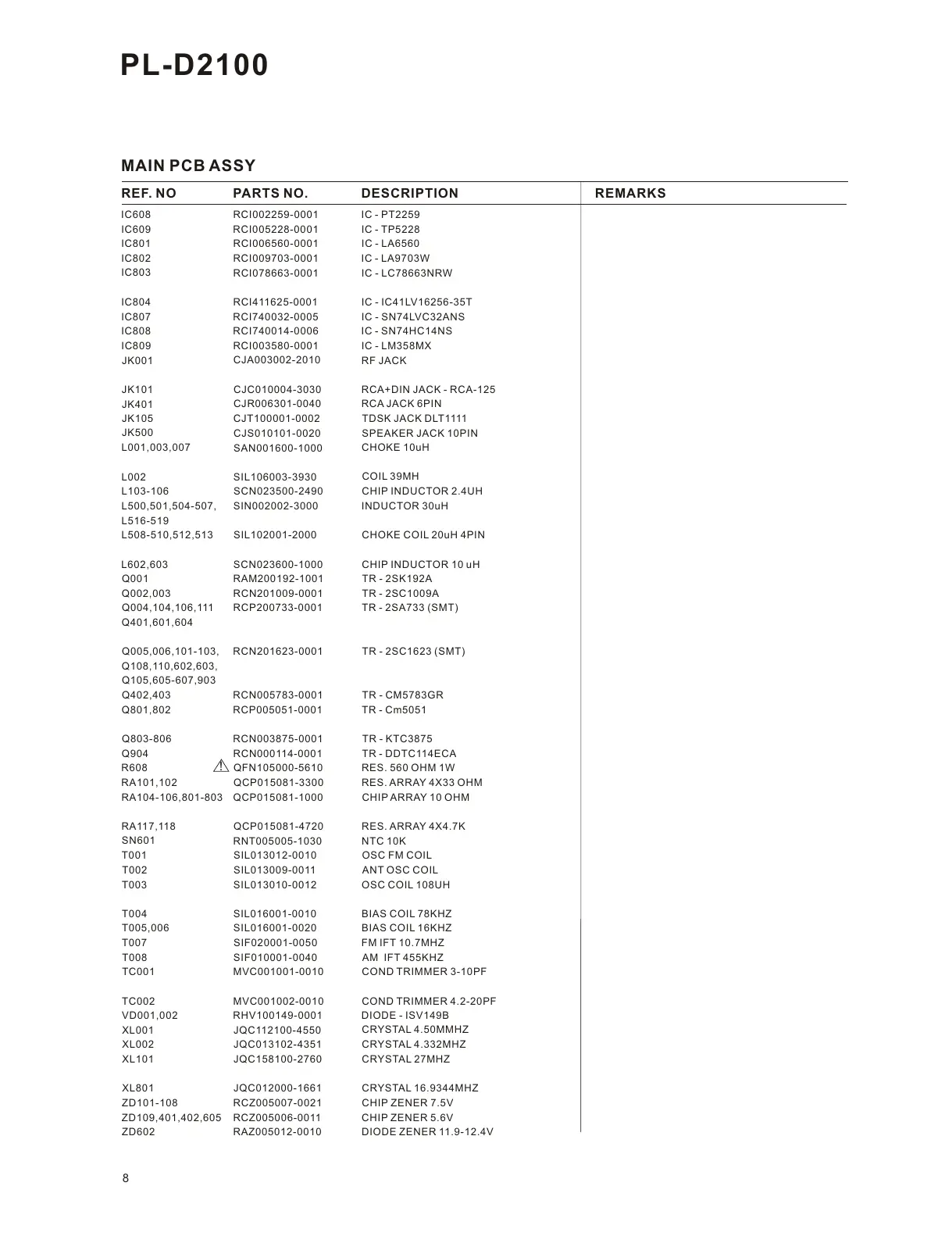

MAIN PCB ASSY
PARTS NO.
DESCRIPTION
REMARKS
IC - SN74LVC32ANS
IC807
RCI740032-0005
IC - IC41LV16256-35T
IC804
RCI411625-0001
ZD101-108
RCZ005007-0021
CHIP ZENER 7.5V
RCZ005006-0011
CHIP ZENER 5.6V
ZD109,401,402,605
ZD602
RAZ005012-0010
DIODE ZENER 11.9-12.4V
L602,603
SCN023600-1000
CHIP INDUCTOR 10 uH
Q004,104,106,111
Q401,601,604
RCP200733-0001
TR - 2SA733 (SMT)
Q108,110,602,603,
TR - 2SC1623 (SMT)
Q402,403
RCN005783-0001
TR - CM5783GR
Q801,802
RCP005051-0001
TR - Cm5051
Q803-806
RCN003875-0001
TR - KTC3875
Q005,006,101-103,
Q105,605-607,903
RCN201623-0001
Q904
RCN000114-0001
TR - DDTC114ECA
L103-106
SCN023500-2490
CHIP INDUCTOR 2.4UH
Q002,003
RCN201009-0001
TR - 2SC1009A
JK101
CJC010004-3030
RCA+DIN JACK - RCA-125
SN601
RNT005005-1030
NTC 10K
JK500
CJS010101-0020
SPEAKER JACK 10PIN
IC - SN74HC14NS
IC - LM358MX
L508-510,512,513
SIL102001-2000
CHOKE COIL 20uH 4PIN
JK401
CJR006301-0040
RCA JACK 6PIN
T002
SIL013009-0011
ANT OSC COIL
T001
SIL013012-0010
OSC FM COIL
T008
SIF010001-0040
AM IFT 455KHZ
T003
SIL013010-0012
OSC COIL 108UH
T007
SIF020001-0050
FM IFT 10.7MHZ
T004
SIL016001-0010
BIAS COIL 78KHZ
T005,006
SIL016001-0020
BIAS COIL 16KHZ
JK001
CJA003002-2010
RF JACK
L500,501,504-507,
L516-519
SIN002002-3000
INDUCTOR 30uH
L002
SIL106003-3930
COIL 39MH
Q001
RAM200192-1001
TR - 2SK192A
L001,003,007
SAN001600-1000
CHOKE 10uH
RA117,118
QCP015081-4720
RES. ARRAY 4X4.7K
RA104-106,801-803
QCP015081-1000
CHIP ARRAY 10 OHM
RA101,102
QCP015081-3300
RES. ARRAY 4X33 OHM
IC808
RCI740014-0006
IC809
RCI003580-0001
R608
QFN105000-5610
RES. 560 OHM 1W
TC001
MVC001001-0010
COND TRIMMER 3-10PF
JK105
CJT100001-0002
TDSK JACK DLT1111
XL101
JQC158100-2760
CRYSTAL 27MHZ
XL801
JQC012000-1661
CRYSTAL 16.9344MHZ
VD001,002
RHV100149-0001
DIODE - ISV149B
XL001
JQC112100-4550
CRYSTAL 4.50MMHZ
XL002
JQC013102-4351
CRYSTAL 4.332MHZ
TC002
MVC001002-0010
COND TRIMMER 4.2-20PF
IC - LA9703W
IC - LA6560
IC802
RCI009703-0001
IC801
RCI006560-0001
IC - LC78663NRW
IC803
RCI078663-0001
IC608
RCI002259-0001
IC - PT2259
IC609 RCI005228-0001
IC - TP5228
!
PL-D2100
8
