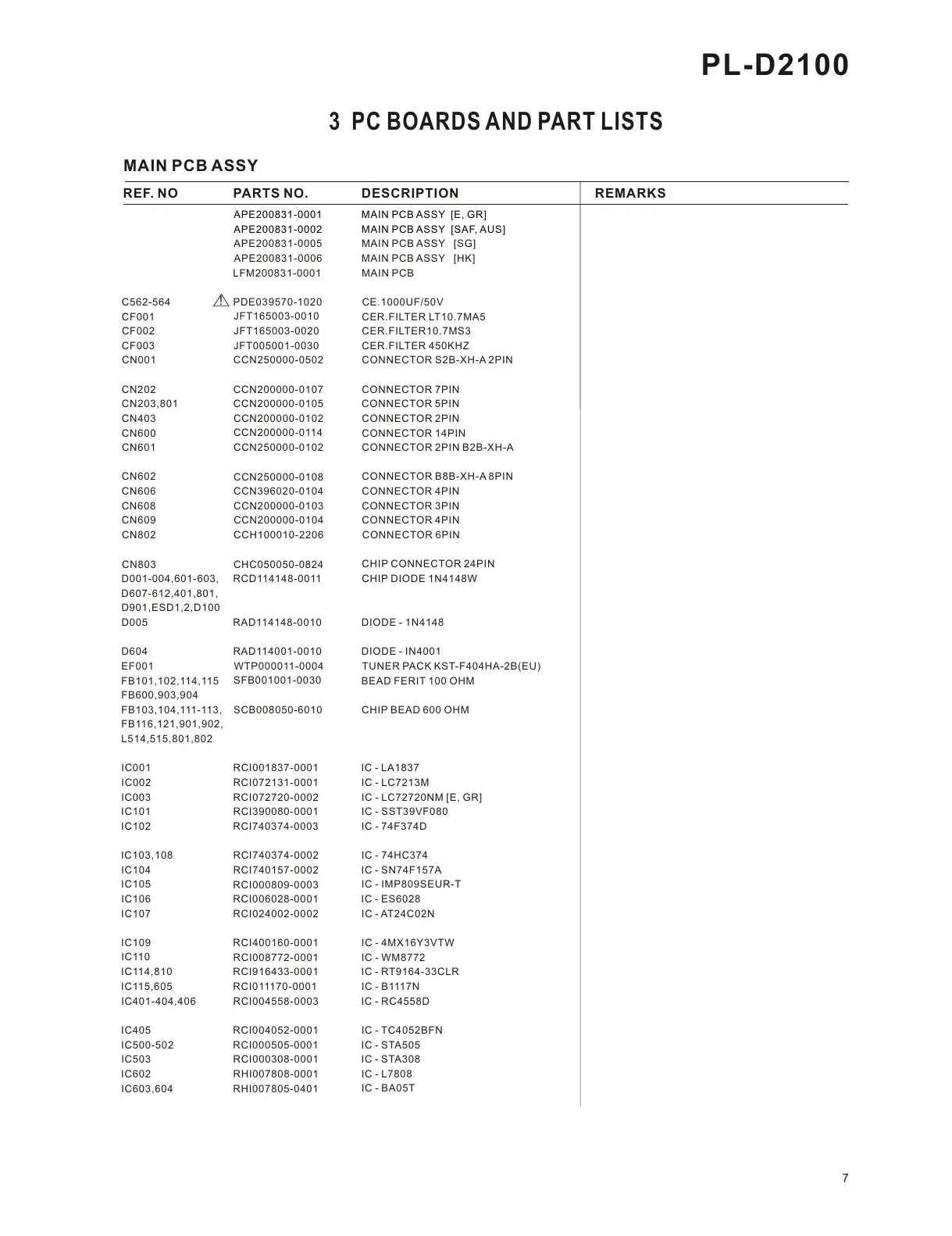

REF. NO
MAIN PCB ASSY
PARTS NO.
DESCRIPTION
APE200831-0001
MAIN PCB ASSY [E, GR]
REMARKS
3 PC BOARDS AND PART LISTS
APE200831-0002
MAIN PCB ASSY [SAF, AUS]
APE200831-0005
MAIN PCB ASSY [SG]
APE200831-0006
MAIN PCB ASSY [HK]
LFM200831-0001
MAIN PCB
CN608
CCN200000-0103
CONNECTOR 3PIN
CN606
CCN396020-0104
CONNECTOR 4PIN
CN203,801
CCN200000-0105
CONNECTOR 5PIN
CN602
CCN250000-0108
CONNECTOR B8B-XH-A 8PIN
CN202
CCN200000-0107
CONNECTOR 7PIN
CF002
JFT165003-0020
CER.FILTER10.7MS3
CF003
JFT005001-0030
CER.FILTER 450KHZ
CN001
CCN250000-0502
CONNECTOR S2B-XH-A 2PIN
EF001
WTP000011-0004
TUNER PACK KST-F404HA-2B(EU)
CN609
CCN200000-0104
CONNECTOR 4PIN
CN802
CCH100010-2206
CONNECTOR 6PIN
FB101,102,114,115
FB600,903,904
BEAD FERIT 100 OHM
SFB001001-0030
D001-004,601-603,
D607-612,401,801,
RCD114148-0011
D901,ESD1,2,D100
C562-564
PDE039570-1020
CE.1000UF/50V
CN403
CCN200000-0102
CONNECTOR 2PIN
CN600
CCN200000-0114
CONNECTOR 14PIN
CN803
CHC050050-0824
CHIP CONNECTOR 24PIN
CN601
CCN250000-0102
CONNECTOR 2PIN B2B-XH-A
D005
RAD114148-0010
DIODE - 1N4148
D604
RAD114001-0010
DIODE - IN4001
CHIP DIODE 1N4148W
IC109
RCI400160-0001
IC - 4MX16Y3VTW
IC107
RCI024002-0002
IC - AT24C02N
IC104
RCI740157-0002
IC - SN74F157A
IC405
RCI004052-0001
IC - TC4052BFN
IC401-404,406
RCI004558-0003
IC - RC4558D
IC103,108
RCI740374-0002
IC - 74HC374
IC500-502
RCI000505-0001
IC - STA505
IC106
RCI006028-0001
IC - ES6028
IC114,810
RCI916433-0001
IC - RT9164-33CLR
IC115,605
RCI011170-0001
IC - B1117N
IC101
RCI390080-0001
IC - SST39VF080
IC110
RCI008772-0001
IC - WM8772
IC002
RCI072131-0001
IC - LC7213M
IC003
RCI072720-0002
IC - LC72720NM [E, GR]
IC102
RCI740374-0003
IC - 74F374D
IC105
RCI000809-0003
IC - IMP809SEUR-T
IC001
RCI001837-0001
IC - LA1837
CF001
JFT165003-0010
CER.FILTER LT10.7MA5
FB103,104,111-113,
FB116,121,901,902,
SCB008050-6010
CHIP BEAD 600 OHM
L514,515,801,802
!
IC603,604
RHI007805-0401
IC - BA05T
IC602
RHI007808-0001
IC - L7808
IC503
RCI000308-0001
IC - STA308
