Teac SR-L7XI - Unit Feature Locations; Top View Layout; Front View Controls

Teac SR-L7XI
8 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...

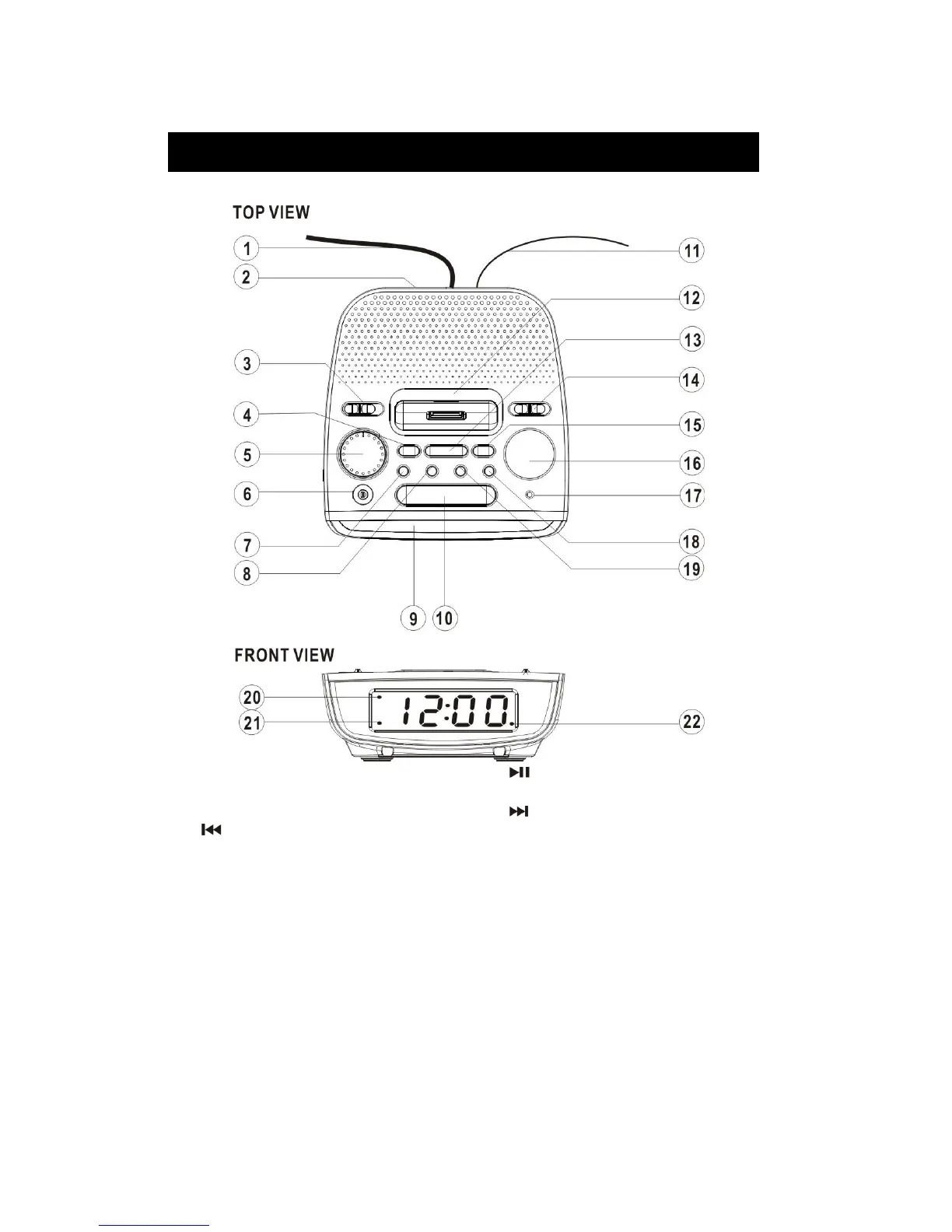

1 AC POWER CORD 13 PLAY / PAUSE Button
2 DIMMER Switch 14 FUNCTION Button
3 WAKE UP Switch 15 SKIP FORWARD Button
4 SKIP BACKWARD Button 16 TUNING Knob
5 VOLUME Knob 17 POWER Indicator
6 AUX Jack 18 POWER ON/OFF Button
7 SLEEP Button 19 AL. SET (ALARM SET) Button
8 TIME SET Button 20 PM (
CLOCK PM TIME
) Indicator
9 DISPLAY 21
AUTO (ALARM WAKE UP) Indicator
10
SNOOZE Button 22 SLEEP Indicator
11 FM Antenna
12
Dock for iPod
3
LOCATION OF UNIT
