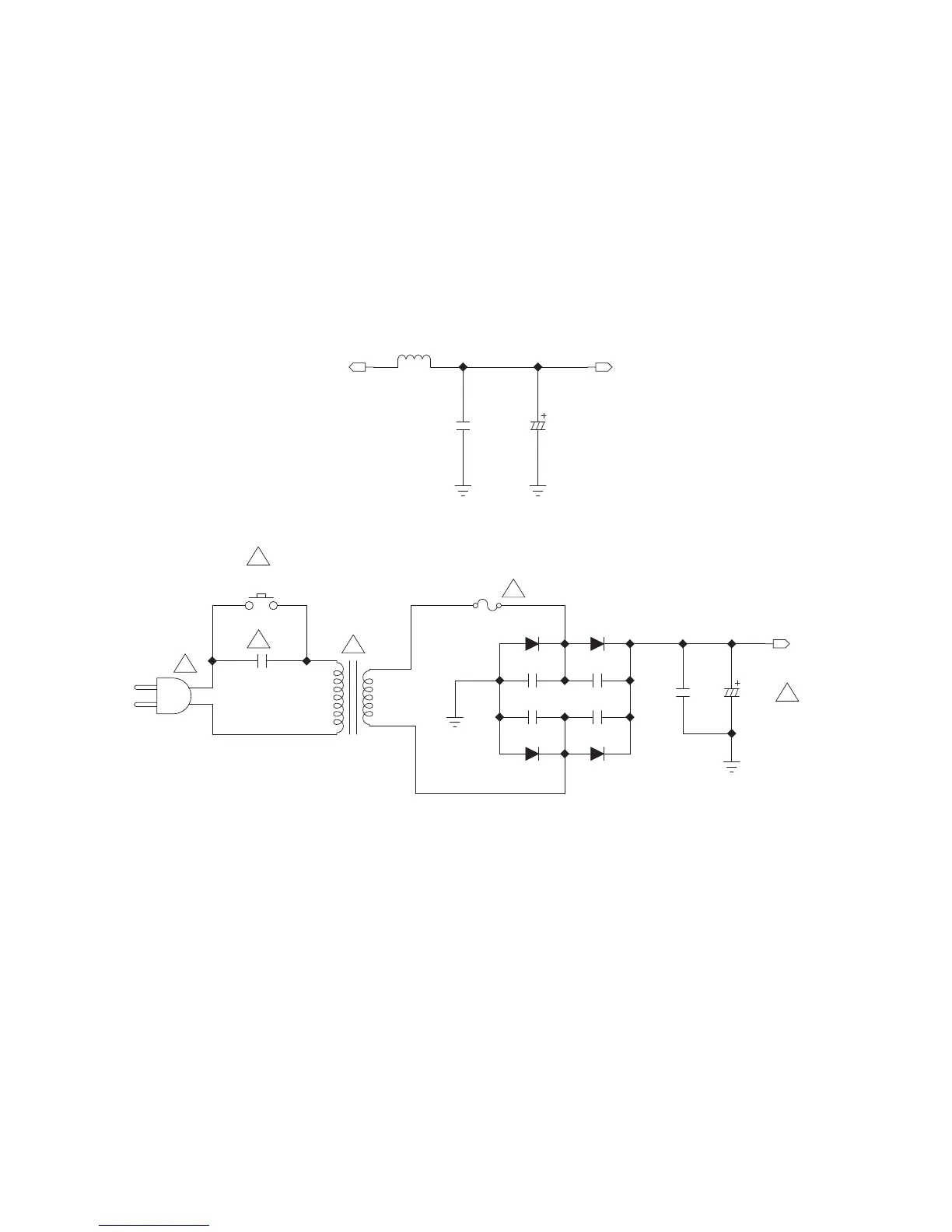

POWER SWITCH
AC
AC_TRANSFORMER
D102
IN4001
D103
IN4001
D104
IN4001
D101
IN4001
C134
223
C133
223
C131
223
C132
223
C135
2200u 25V
C136
104
S101
C101
103 250V
F101
T1.6AL 250V
L6
10uH
C60
104
C59
220u
A9V
DC5V
D5V
T-R610DAB
DAB/FM Tuner
POWER PCB
!
!
!
!
!
!
