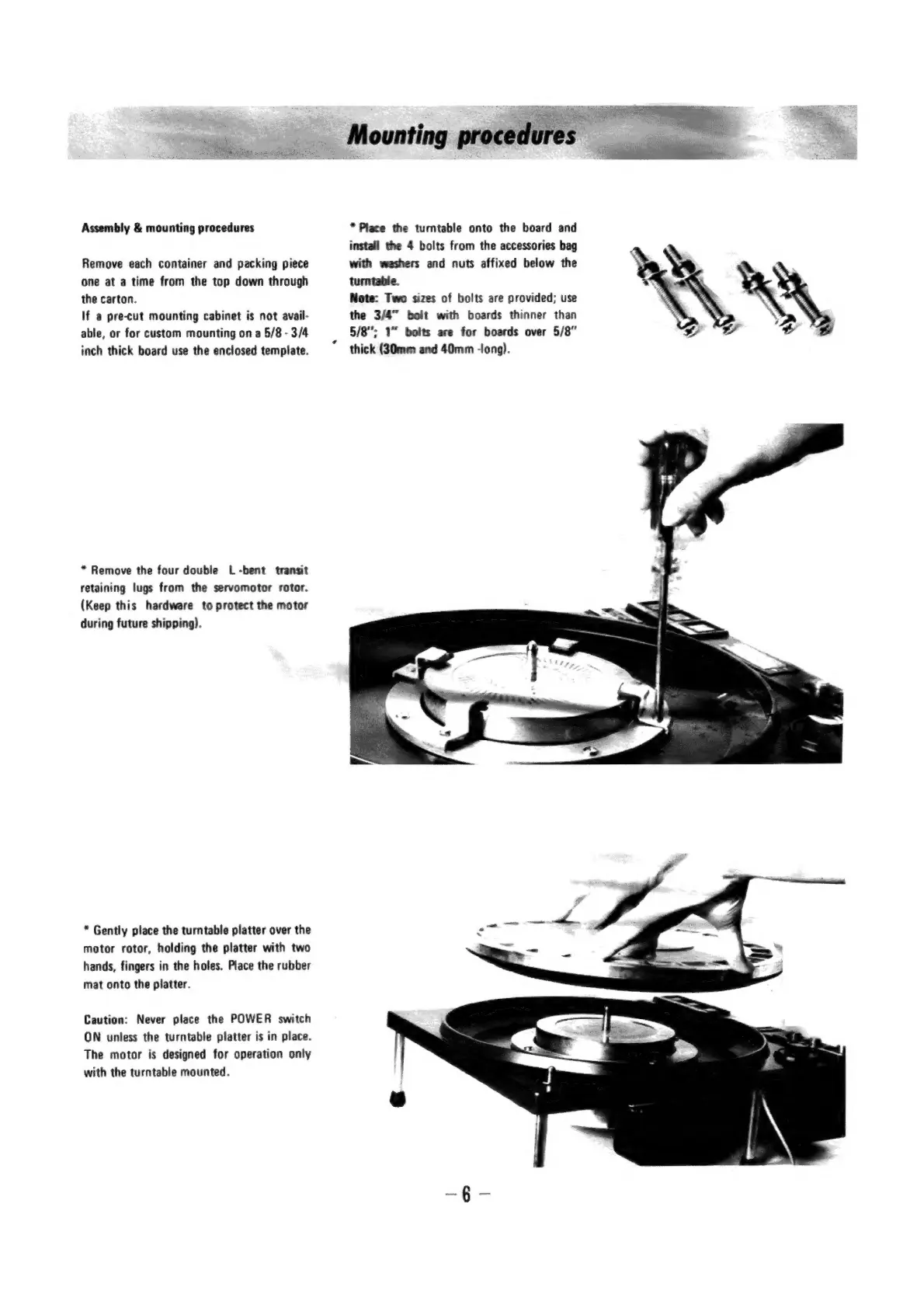

Assembly & mounting procedures
Remove each container and packing piece
one at a time from the top down through
the carton.
If a pre-cut mounting cabinet is not avail-
able, or for custom mounting on a 5/8 - 3/4
inch thick board use the enclosed template.
* Remove the four double L-bent transit
retaining lugs from the servomotor rotor.
(Keep this hardware to protect the motor
during future shipping).
* Gently place the turntable platter over the
motor rotor, holding the platter with two
hands, fingers in the holes. Place the rubber
mat onto the platter.
Caution: Never place the POWER switch
ON unless the turntable platter is in place.
The motor is designed for operation only
with the turntable mounted.
Mounting procedu
* Place the turntable onto the board and
install the 4 bolts from the accessories bag
with washers and nuts affixed below the
turntable.
Note: Two sizes of bolts are provided; use
the 3/4” bolt with boards thinner than
5/8"; 1” bolts are for boards over 5/8”
thick (30mm and 40mm -long).
