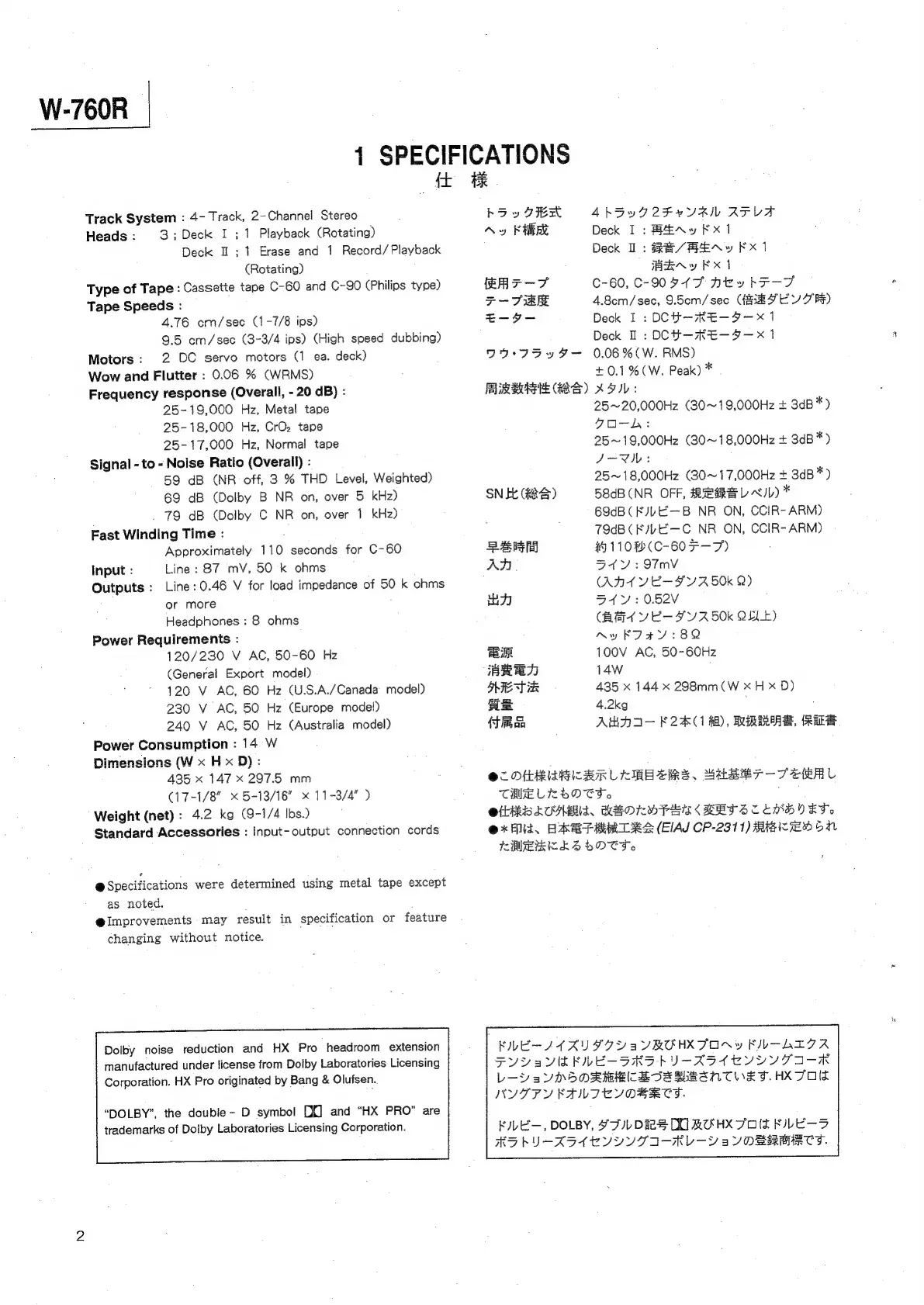

1 SPECIFICATIONS
tt
Track
System
:
4-
Track,
2-Channe!
Stereo
Heads:
3;
Deck
I;
1
Playback
(Rotating)
Deck
I;
1
Erase
and
1
Record/Playback
(Rotating)
Type
of
Tape
:
Cassette
tape
C-60
and
C-90
(Philips
type)
Tape
Speeds
:
4.76 om/sec (1-7/8 ips)
9.5
cm/sec
(3-3/4
ips)
(High
speed
dubbing)
Motors:
2
DC
servo
motors
(1
ea.
deck)
Wow
and
Flutter
:
0.06
%
(WRMS)
Frequency
response
(Overall,
-
20
dB):
25-19,000
Hz,
Metal
tape
25-18,000
Hz,
CrO,
tape
25-17,000
Hz,
Normal
tape
Signal
-
to
-
Noise
Ratio
(Overall)
:
59
dB
(NR
off,
3
%
THD
Level,
Weighted)
69
dB
(Dolby
B
NR
on,
over
5
kHz)
.
79
dB
(Dolby
C
NR
on,
over
1
kHz)
Fast
Winding
Time
:
:
Approximately
110
seconds
for
C-60
Input
:
Line:
87
mV,
50
k
ohms
Outputs
:
Line:
0.46
V
for
load
impedance
of
50
k
ohms
or
more
:
Headphones
:
8
ohms
Power
Requirements
:
120/230
V
AC,
50-60
Hz
(General
Export
model)
120
V
AC,
60
Hz
(U.S.A./Canada
model)
230
V
AC,
50
Hz
(Europe
model)
240
V
AC,
50
Hz
(Australia
model)
Power
Consumption
:
14
W
Dimensions
(W
x
H
x
D):
435
x
147
x
297.5
mm
(17-1/8"
x
5-13/16"
x
11-3/4"
)
Weight
(net):
4.2
kg
(9-1/4
Ibs.)
Standard
Accessories
:
input-output
connection
cords
@
Specifications
were
determined
using
metal
tape
except
as
noted.
;
@improvements
may
result
in
specification
or
feature
changing
without
notice.
Dolby
noise
reduction
and
HX
Pro
headroom
extension
manufactured
under
license
from
Dolby
Laboratories
Licensing
Corporation.
HX
Pro
originated
by
Bang
&
Olufsen.
“DOLBY”,
the
double-
D
symbol
D]
and
“HX
PRO”
are
trademarks
of
Dolby
Laboratories
Licensing
Corporation.
