Ref Description TITAN 10 TITAN 12 Qty Associated Parts Part Number Qty
1 Pair Of Wheels 580/70 R38 WE1309 WE1309 1 - Standard Axle (400 x 80)
2 Axle 2200mm (400 x 80) WA RS4686 RS4686 1
(Includes Items 4 - 7)
3 Axle Retaining Plate RS4681 RS4681 2 Bolt M24 x 170 FAS9794P 8
Locknut M24 FAS2337 8
Brake Ram Assembly 35mm TB1100 TB1100 2
(Comprising Items 4 & 6 - 7)
4 Brake Ram 35mm TB1101 TB1101 2 Seal Kit - Brake Ram 35mm CYL1212 1
5 Brake Cam Lever WE0861 WE0861 2
6 Tension Spring 185 x 3.3 SPR4612 SPR4612 4
7 Brake Ram Pivot Pin TB1102 TB1102 4 Circlip E-Series 12 (1500) FAS7514 8
8 Wire Rope Grip ROP1291 ROP1291 6
9 Cable Brake Lever RS4402 RS4689 1

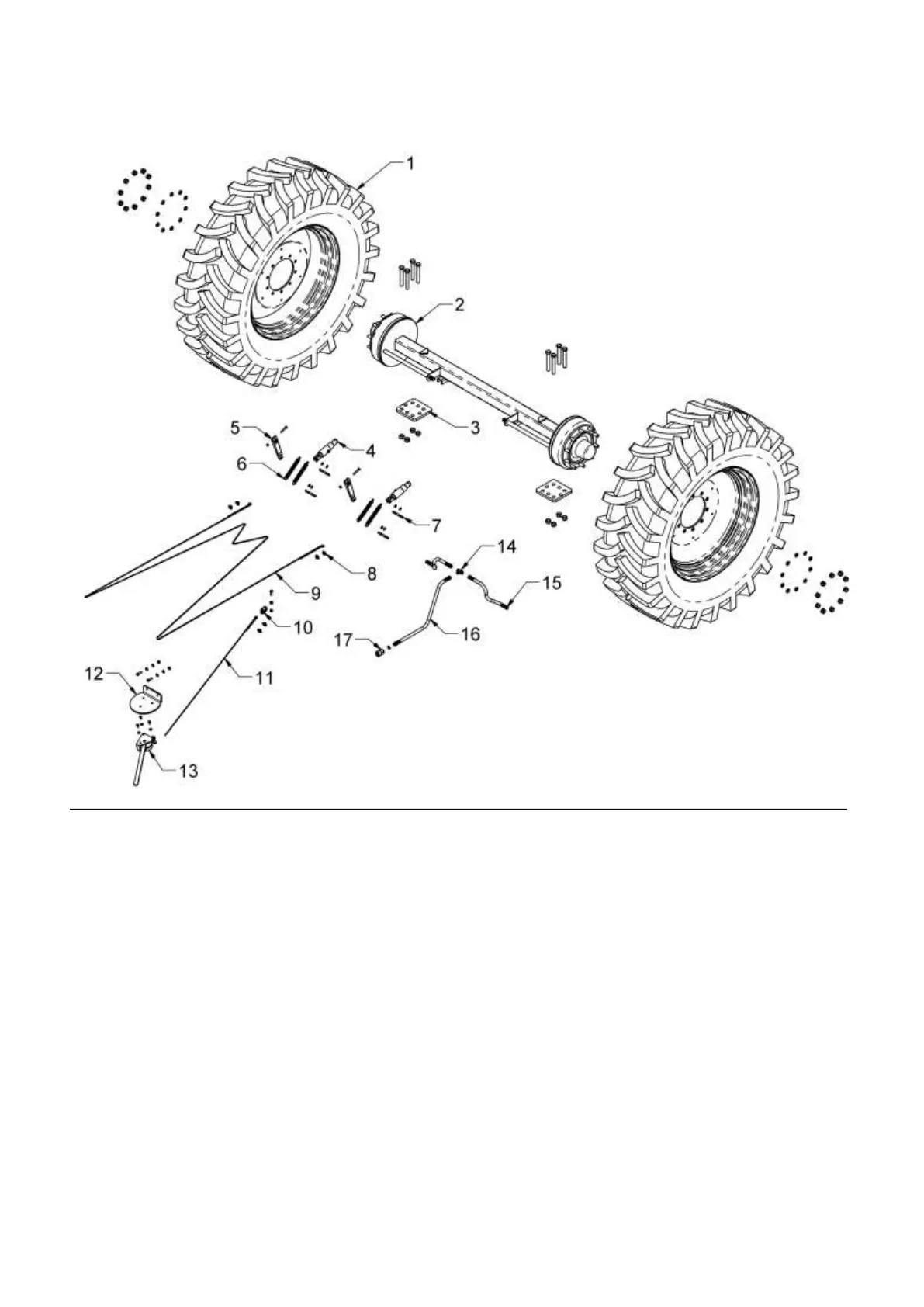

TITAN 10 AND TITAN 12 STANDARD AXLE AND WHEEL COMPONENTS
9
PARTS LIST
