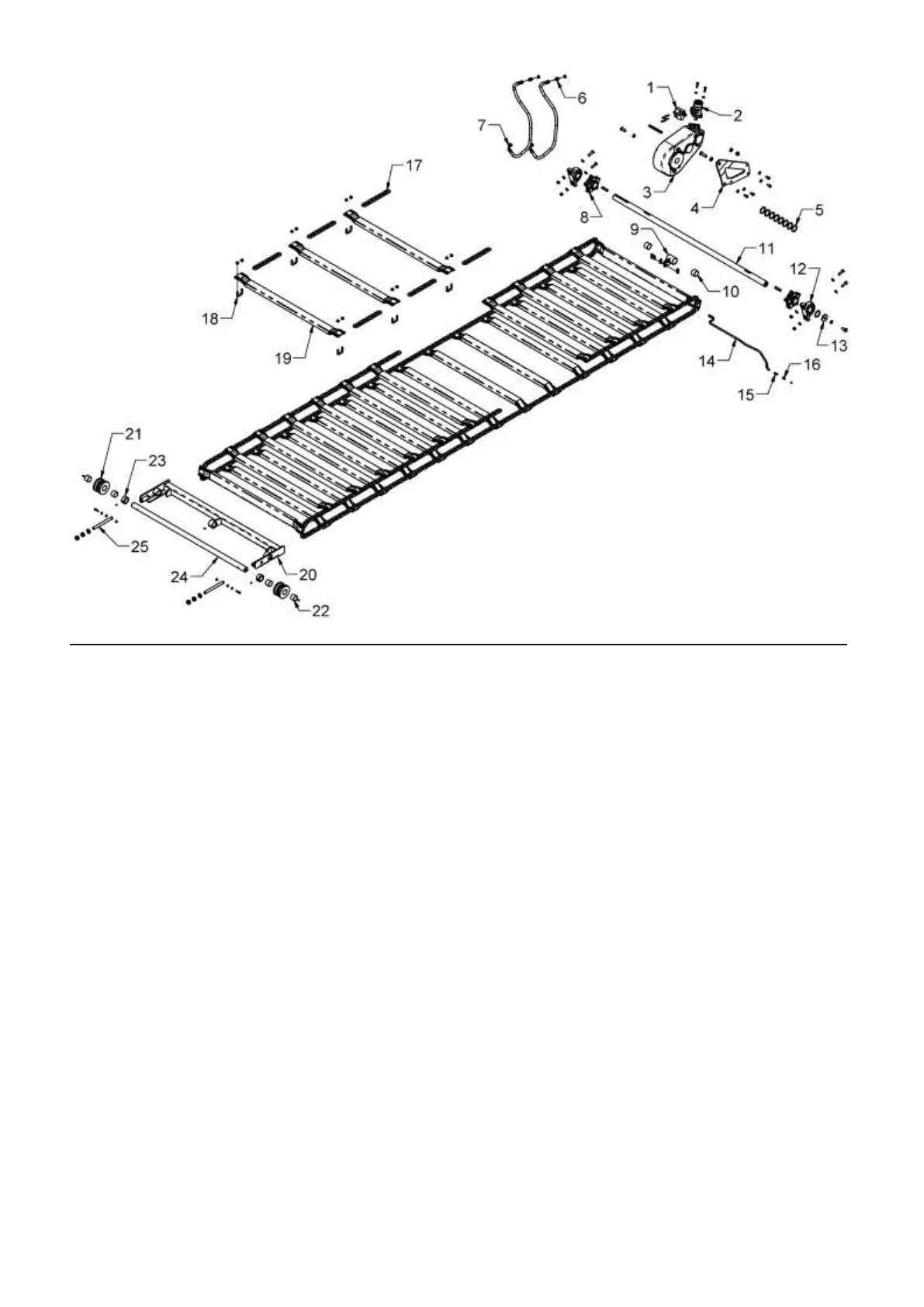

BED COMPONENTS
15
Ref Description TITAN 10/12 TITAN 15/17 Qty Associated Parts Part Number Qty
Gearbox Assembly Bed Drive RS4683 RS4736 1
(Comprising Items 1 - 4)
1 Dual Line Relief Valve HYD5026 HYD5026 1 M8 x 40 Skt Hd Scw 12.9 FAS9537 4
2 Hydraulic Motor HYD5235 HYD5232 1 Setscrew M12 x 40 FAS2680P 2
Plain Washer M12 FAS2345P 2
Key 8 x 7 x 30 FAS8134 1
Motor Seal Kit - Brevini HYD4891 1
Motor Seal Kit - M&S HYD4885 1
3 Gearbox Bed Drive RS4535 1 Plain Key 16 x 10 x 150 FAS8142 1
RS4735 1 Plain Key 16 x 10 x 170 FAS8149 1
4 Mounting Gearbox Bed RS4682 RS4740 1 Bolt M20 x 60 FAS9732P 1
Plain Washer M20 FAS2347P 2
Locknut M20 FAS2336 1
Setscrew M14 x 30 FAS2752P 4
Plain Washer M14 FAS2398P 4
5 Driveshaft Spacer 3mm RS4568 RS4568 9
6 1/2” x 1/2” M/M Union HYD1013 HYD1013 2 Bonded Seal 1/2” HYD4204 2
7 Hydraulic Hose 1/2” HYD2244 2 - Titan 10
Hydraulic Hose 1/2” HYD2245 2 - Titan 12
Hydraulic Hose 1/2” HYD2245 2 - Titan 15
Hydraulic Hose 1/2” HYD2247 2 - Titan 17
8 Sprocket Bed Drive (55mm) RS4532 RS4532 2 Key 18 x 11 x 80 FAS8138 2
To Next Page
