26

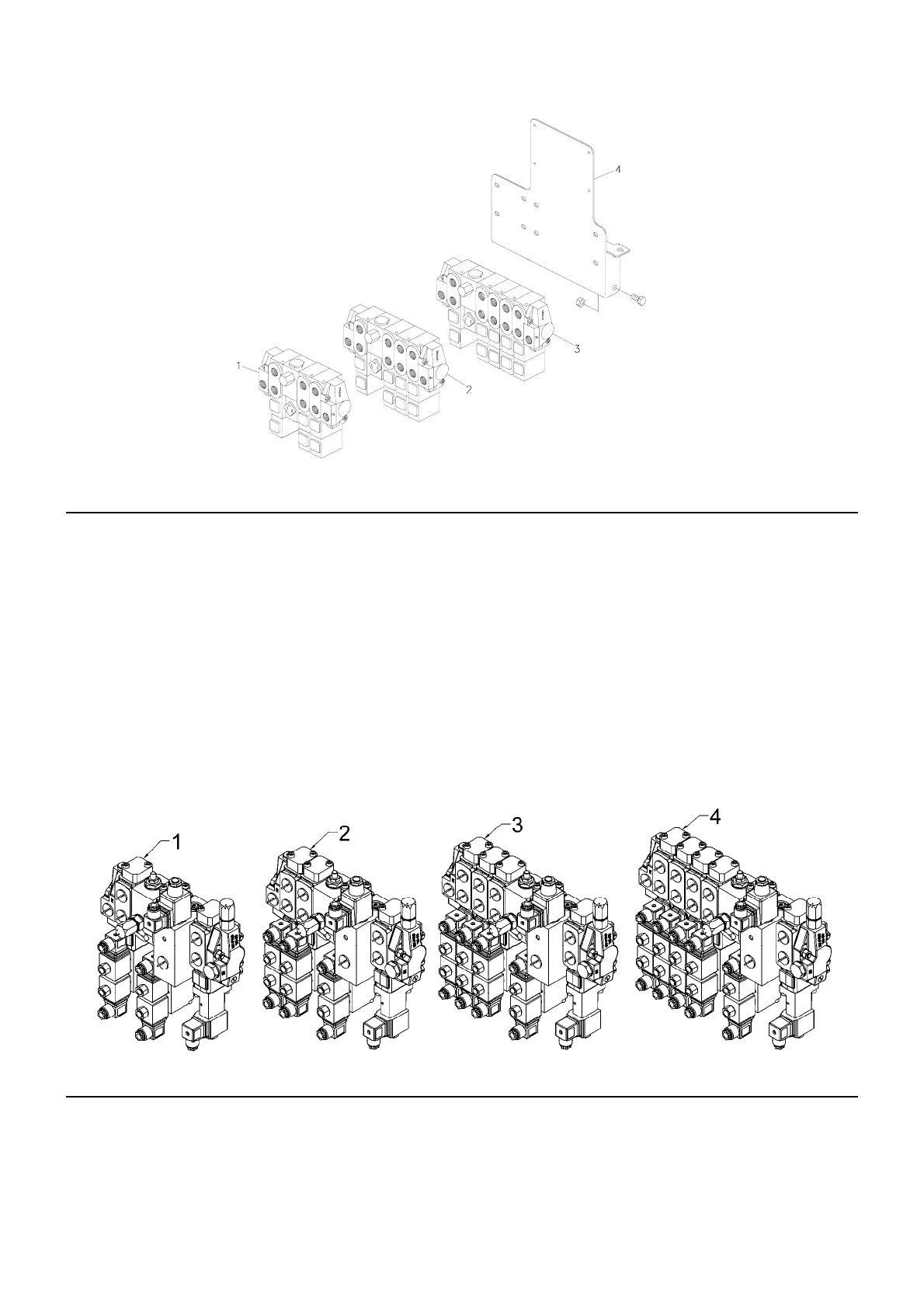

10.8 SOLENOID VALVE INDEPENDENT BED SPEED CONTROL
10.9 SOLENOID VALVE COMBINED BED FORWARD/SPEED CONTROL
Ref Description Part No.
1 Valve RH HYD5400
2 Valve SC HYD5401
3 Valve DC HYD5402
4 Valve TC HYD5403
Note: Valve mounting plate and fasteners are as for solenoid valve with independent speed control.
Ref Description Part No. RH Chute SC Chute TC/DC
1 Electric Valve HYD5094 1 -- --
2 Electric Valve HYD5095 -- 1 --
3 Electric Valve HYD5096 -- -- 1
4 Valve mount bracket SC3539 1 1 1
Setscrew M8 x 16 FAS2625P -- -- 4
Washer M8 FAS2343P -- -- 4
