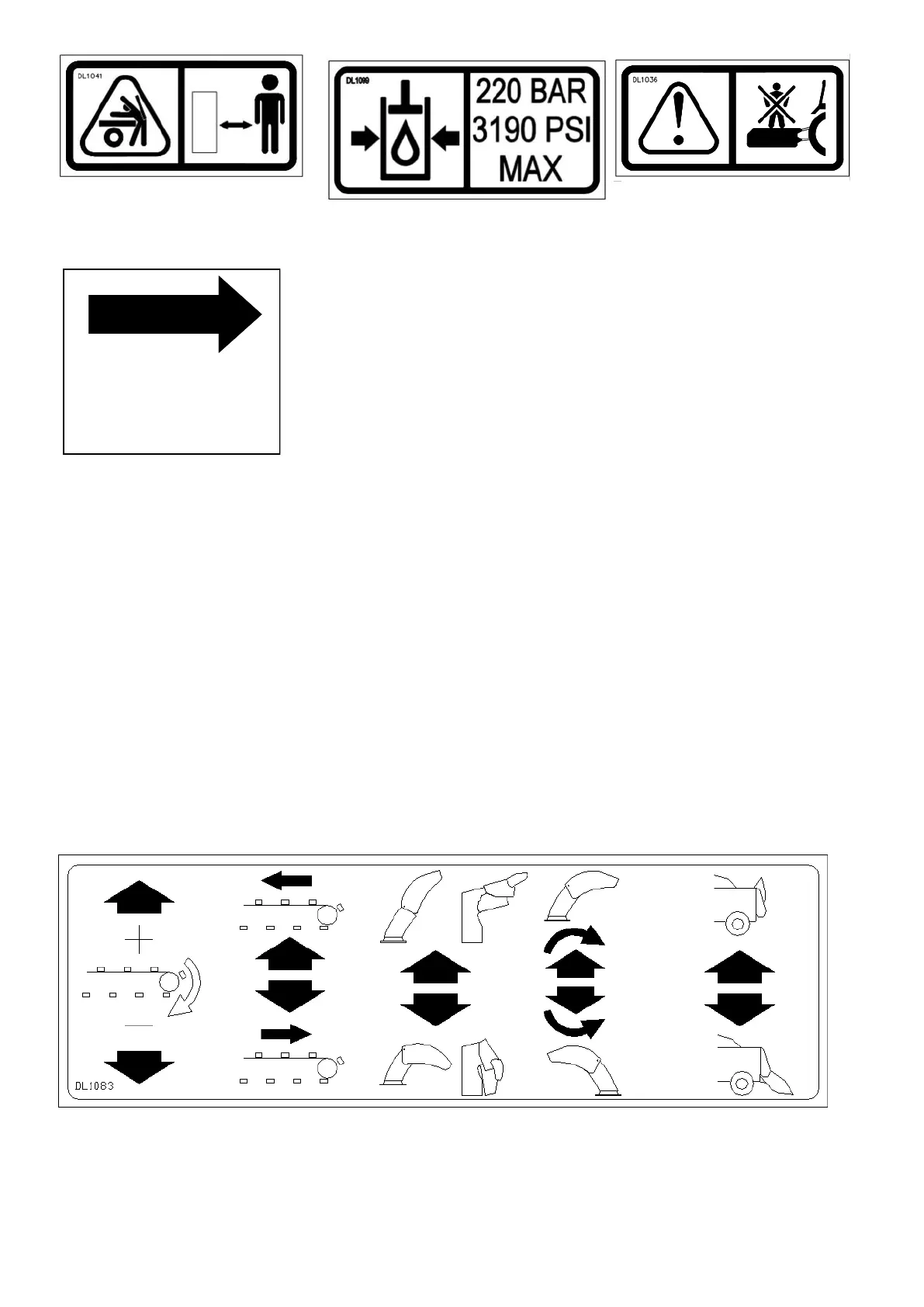

Increase bed chain
speed
Bed chain forward Raise deflector Rotate chute
clockwise
Tailgate raise
Decrease bed chain
speed
Bed chain reverse Lower deflector Rotate chute
anti-clockwise
Tailgate lower
11
Do not allow anyone to ride on
the machine
Beware crushing hazard
keep clear
Hydraulic flow rate & direction
60 L/min
13.2 Gal/min
MAX
DL1109
Maximum hydraulic circuit pressure
Tractor Cable Control Panel
