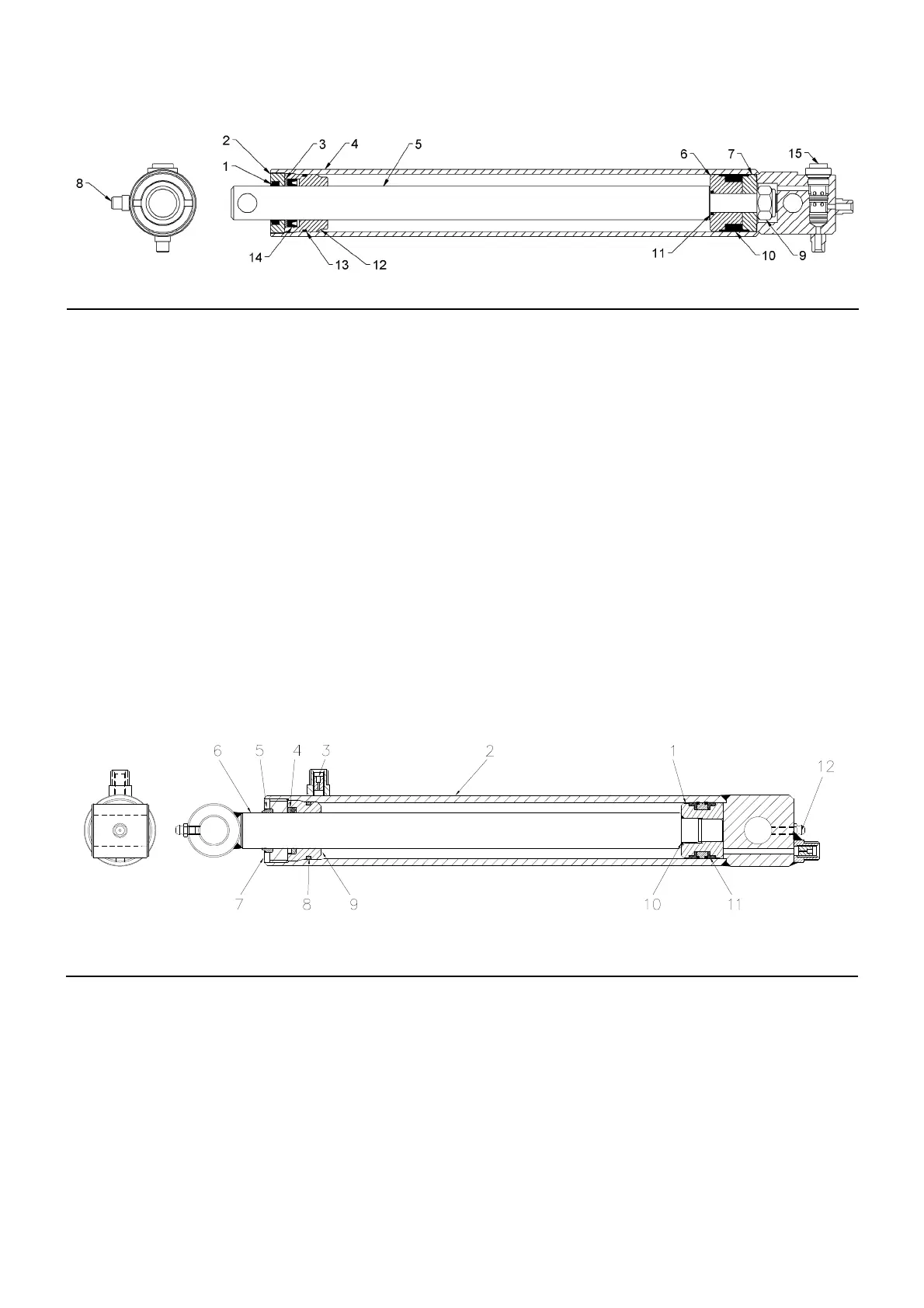

CHUTE RAM
Closed centres 386, Open centres 642, Stroke 256
Ram Assembly CYL1084 1
Seal Kit (Items 4, 5, 8 & 10) HYD4860 1
1 Piston CYL1075 1
2 Cylinder Body CYL1082 1
3 Restrictor 0.8mm Dia HYD1746 2
4 Rod Seal 25mm HYD4496 1
5 Wiper Seal 16mm HYD4524 1
6 Piston Rod CYL1083 1
7 Wiper Seal Housing CYL1077 1
8 "O" Ring B.S. 216 HYD4039 1
9 Rod Seal Housing CYL1076 1
10 "O" Ring B.S. 017 HYD4033 1
11 Piston Seal 40mm Dia. HYD4431 1
12 Grease Nipple 1/4” BSF BRG5004 2
Ref. Description Part No. Qty. Ref. Description Part No. Qty.
14
TAILGATE RAM (With Pilot Operated Check Valve)
Closed centres 571, Open centres 971, Stroke 400
Ref. Description Part No. Qty. Ref. Description Part No. Qty.
Ram Assembly CYL1135 2
Seal Kit (Items 1,10,11,13 & 14) HYD4813 1
(Check Valve Seals Not Included, See Item 16)
1 Wiper Seal HYD4517 1
2 Wiper Seal Housing CYL1004 1
3 Rod Seal Backup Ring DC1233 1
4 Cylinder Assembly CYL1136 1
5 Piston Rod CYL1067 1
6 Piston Body CYL1138 1
7 Piston End CYL1139 1
8 Restrictor 1.3mm HYD1746 1
9 Locknut M20 FAS2336 1
10 Seal HYD4498 1
11 "O" Ring HYD4007 1
12 Rod Seal Housing CYL1137 1
13 "O" Ring HYD4050 1
14 "U" Packing HYD4327 1
15 Pilot Operated
Check Valve CYL1128 1
16 Check Valve
Seal Kit (Not Shown) HYD4870 1
To Next Page
