15

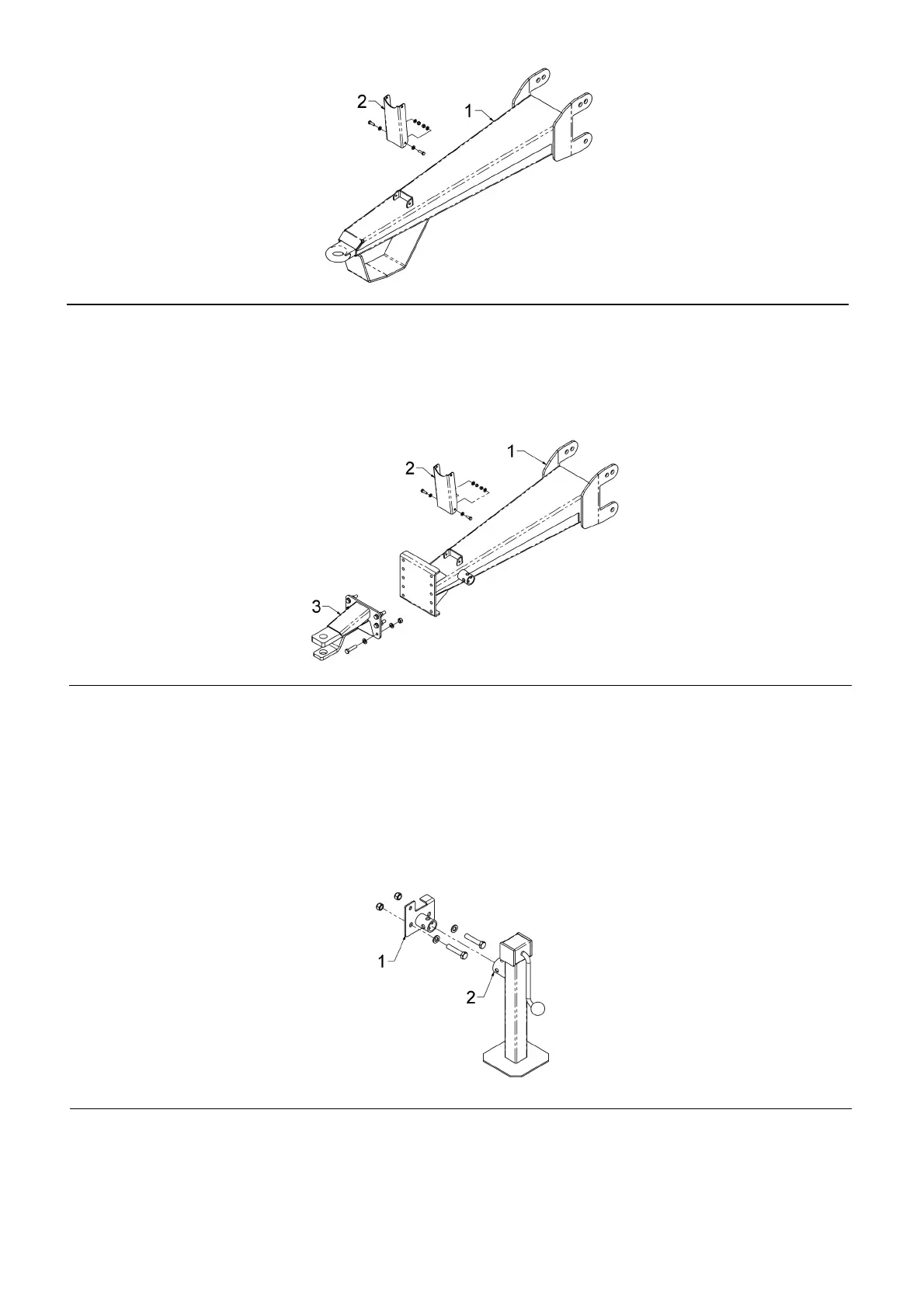

DRAWBARS & JACK
Ref. Description Part No. Qty. Associated Components Part No. Qty.
KIT Fixed Drawbar Assembly SC3825 1
(Comprising All Items)
1 Drawbar SC3801 1
2 PTO Rest SC4034 1 Setscrew M8 x 25 FAS2629P 2
Plain Washer M8 FAS2343P 4
Locknut M8 FAS2332 2
Ref. Description Part No. Qty. Associated Components Part No. Qty.
KIT Clevis Drawbar SC4068 1
(Comprising All Items)
1 Drawbar Beam SC3838 1
2 PTO Rest SC4034 1 Setscrew M8 x 25 FAS2629P 2
Plain Washer M8 FAS2343P 4
Locknut M8 FAS2332 2
3 Clevis SC3665 1 Bolt M12 x 55 FAS9683P 6
Plain Washer M12 FAS2345P 12
Locknut M12 FAS2334 6
Ref. Description Part No. Qty. Associated Components Part No. Qty.
KIT Jack SC4069 1
(Comprising All Items)
1 Jack Socket SC4916 1 Bolt M16 x 80 FAS9711P 2
Plain Washer M16 FAS2346P 2
Locknut M16 FAS2335 2
2 Tomahawk Jack SC1421 1
To Next Page
