Ref Description Part No. Qty Associated Components Part No. Qty
KIT Inline Filter SC3785 1
(Comprising All Items)
1 Pressure Line Filter HYD5343 1 Setscrew M10 x 16 FAS2650P 3
Plain Washer M10 FAS2344P 3
2 1/2” BSP - M22 M/M Union HYD1138 2 Bonded Seal 22mm HYD4210 2
3 Filter Mounting Bracket SC4932 1 Setscrew M12 x 45 FAS2681P 1
Setscrew M12 x 50 FAS2682P 1
Plain Washer M12 FAS2345P 4
Locknut M12 FAS2334 2
4 Hydraulic Hose HYD2205 1
Not Shown: Filter Element HYD5344 1

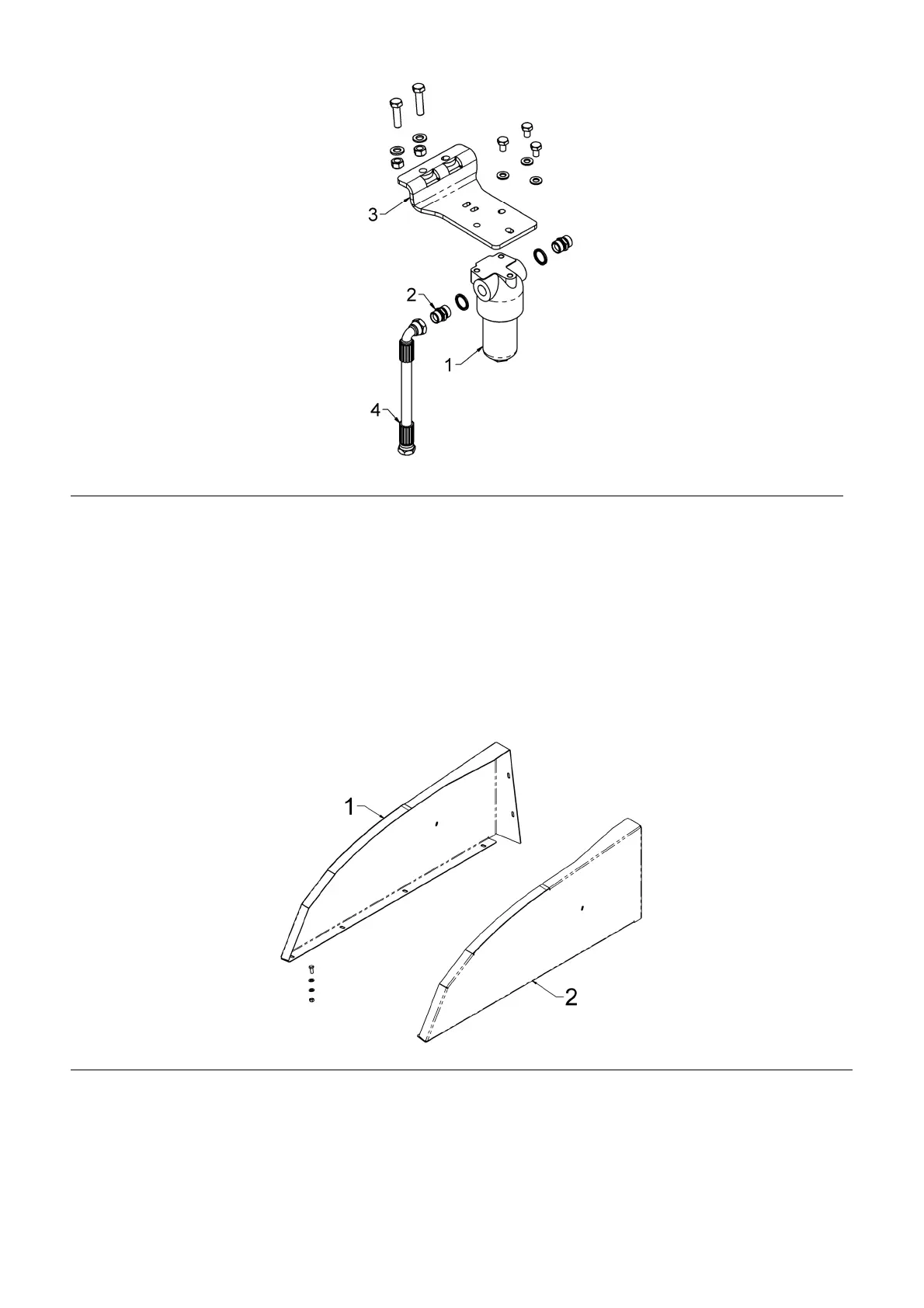

PRESSURE LINE FILTER
EXTENSION SIDES
Ref. Description Part No. Qty. Associated Components Part No. Qty.
KIT Extension Sides SC4594 1
(Comprising All Items)
1 Extension Side LH SC4592 1 Setscrew M12 x 30 FAS2678P 1
Plain Washer M12 FAS2345P 2
Locknut M12 FAS2334 1
2 Extension Side RH SC4593 1 Setscrew M12 x 30 FAS2678P 1
Plain Washer M12 FAS2345P 2
Locknut M12 FAS2334 1
