Teagle Tomahawk 8500 - Electronic Control Systems; Control Box Assembly; Junction Box Assembly

31
ELECTRONIC CONTROLS - LARGE RAISED FLAT BUTTONS
Right Hand Sloping Dual

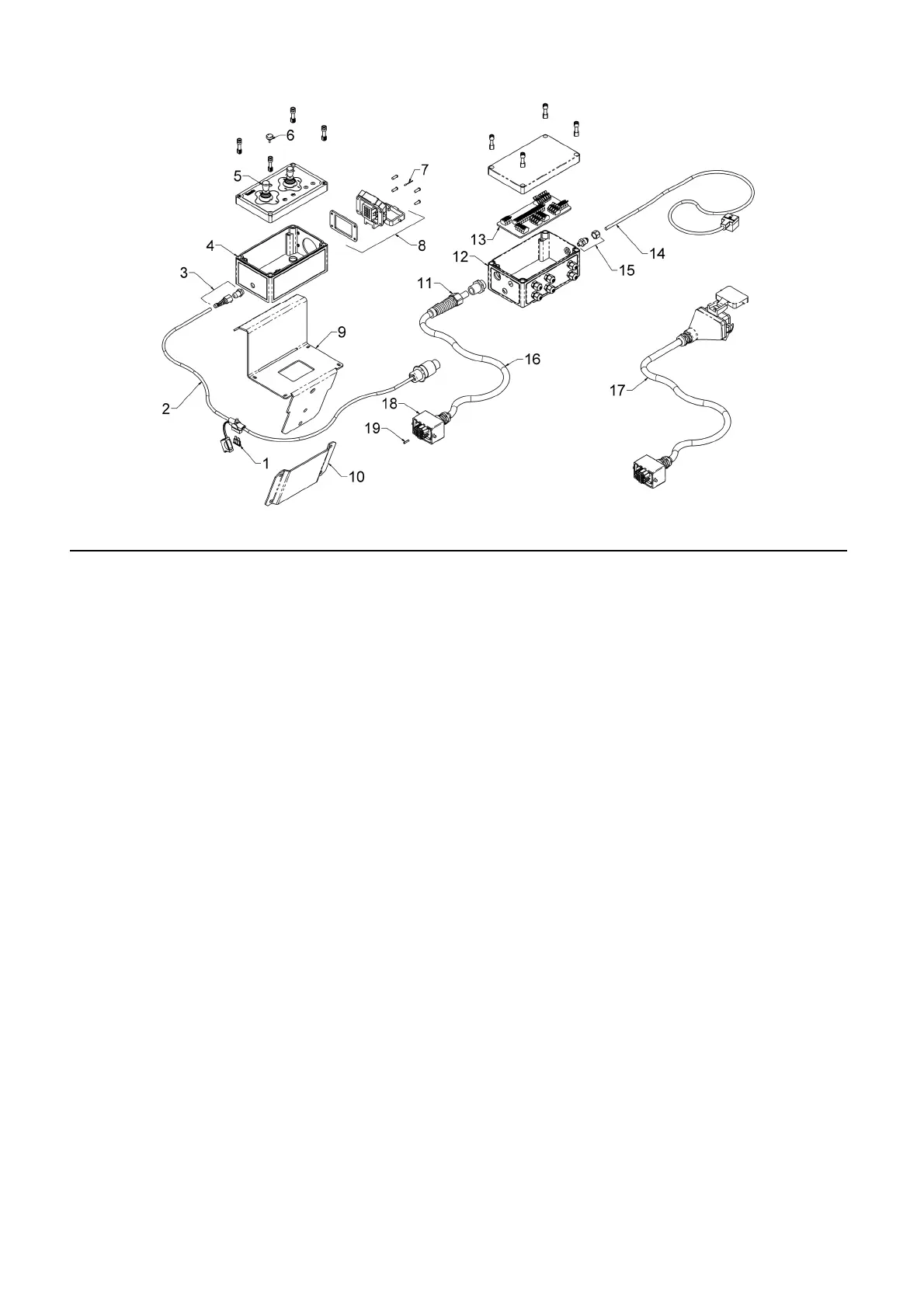

Ref. Description Chute Chute Chop Qty. Associated Components Part No. Qty.
Control Box Assembly SC3580 SC3579 SC3579 1
(Comprising Items 1 - 8)
1 7.5 Amp Fuse SC3535 SC3535 SC3535 1
2 Power Cable SC3503 SC3503 SC3503 1
3 Cable Gland SC3504 SC3504 SC3504 1
4 Base SC3506A SC3506A SC3506A 1
5 Joystick SC3510 SC3510 SC3510 1 Microswitch SC3566 4
6 Potentiometer SC3513 SC3513 SC3513 1
7 Male Crimp Contact SC3516 SC3516 SC3516 18
8 Control Box Socket SC3515 SC3515 SC3515 1 M4 x 16 Pan Head FAS2430S 4
Locknut M4 FAS2329S 4
9 Control Box Mounting Plate SC3538 SC3538 SC3538 1 M4 x 16 Pan Head FAS2430S 4
Locknut M4 FAS2329S 4
10 Mounting Bracket DC0459 DC0459 DC0459 1
Junction Box Assembly SC3583 SC3582 SC3581 1
(Comprising Items 11 - 19)
11 Cable Gland SC3524 SC3524 SC3524 1
12 Enclosure SC3525 SC3525 SC3525 1 M4 x 16 Pan Head FAS2430S 4
Locknut M4 FAS2329S 4
13 PCB (Large Controls) SC3575 SC3575 SC3575 1 M4 x 3/8” Pan Head FAS2431 2
14 Solenoid Cable SC3548 SC3548 SC3548 2 Connector Screw SC3585 2
15 Sealing Gland SC3537 -- -- 7
-- SC3537 -- 9
-- -- SC3537 13
16 18 Core Cable Assy. 4m SC3522 SC3522 SC3522 1
18 Core Cable Assy. 5m SC3592 SC3592 SC3592 Opt.
18 Core Cable Assy. 7m SC3594 SC3594 SC3594 Opt.
17 Cable Extension Assy. 5m SC3599 SC3599 SC3599 Opt.
18 Cable Socket SC3568 SC3568 SC3568 1
19 Female Crimp Contact SC3519 SC3519 SC3519 18
