32

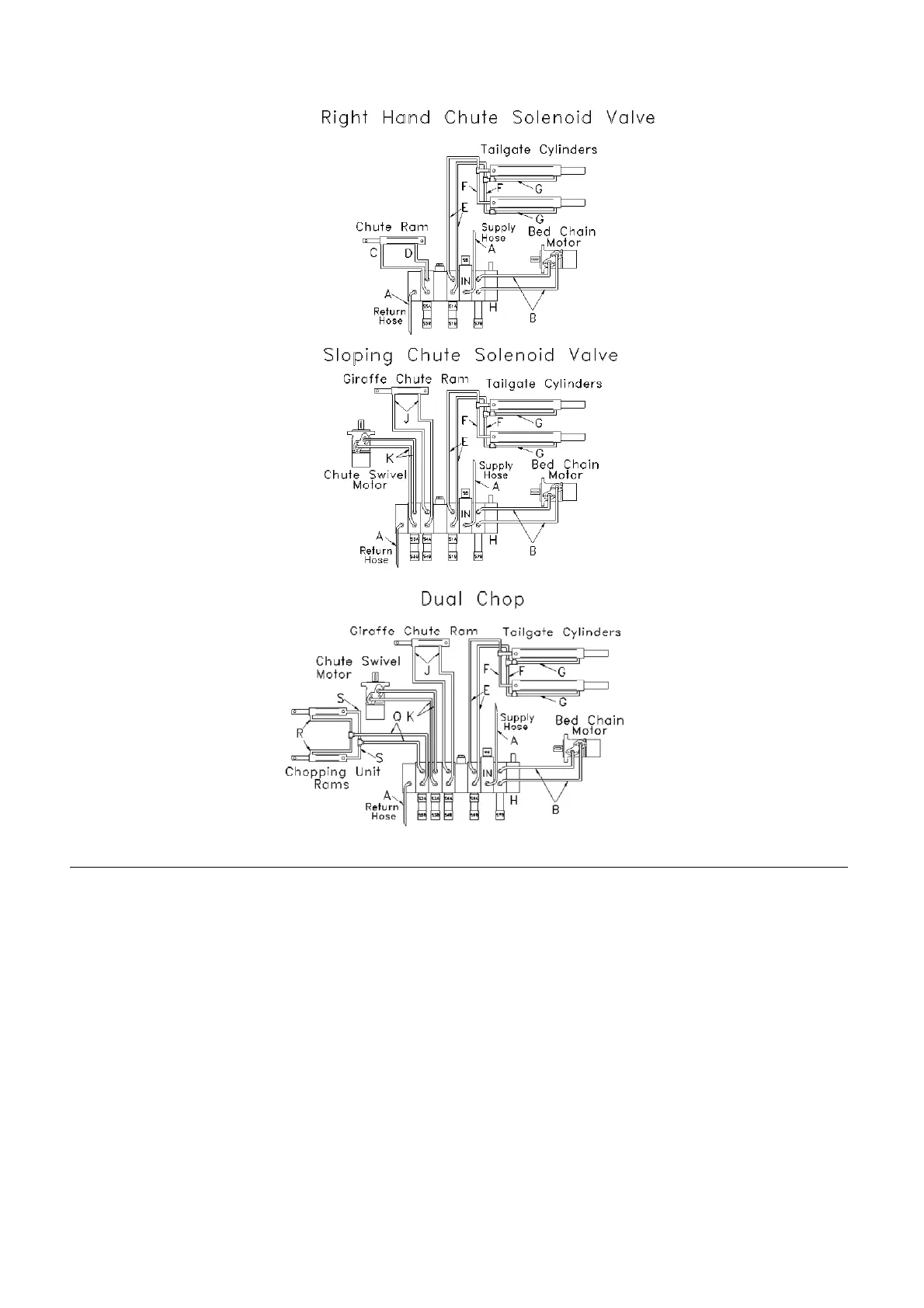

HYDRAULIC HOSES
Ref Description Part No. Qty. Associated Components Part No. Qty.
A Valve Supply Hose HYD2228 2 Bonded Seal 1/2” BSP HYD4204 2
Quick Release Coupling Male HYD1901 2
B Bed Motor Hose HYD2207 2
C Chute Ram - Outer HYD2043 1
D Chute Ram - Inner HYD2046 1
E Valve To 'T' Piece HYD2058 2 1/4” BSP T Piece M/M/F HYD1930 2
F Tailgate Ram Front Hose HYD2045 2
G Tailgate Ram Rear Hose HYD2061 2 1/4” BSP T piece M/M/F HYD1930 2
J Giraffe Chute Ram Hose HYD2047 2
K Chute Motor Hose HYD2063 2
Q Valve to ‘T’ Piece HYD2064 2 1/4” BSP T Piece M/M/M HYD1921 2
R Dual Chop Unit Side Hose HYD2065 2 1/4” BSP M/F 90° Elbow HYD1760 2
S Dual Chop Unit Rear Hose HYD2066 2
NOT SHOWN - Strap non re-useable FAS9051 8
