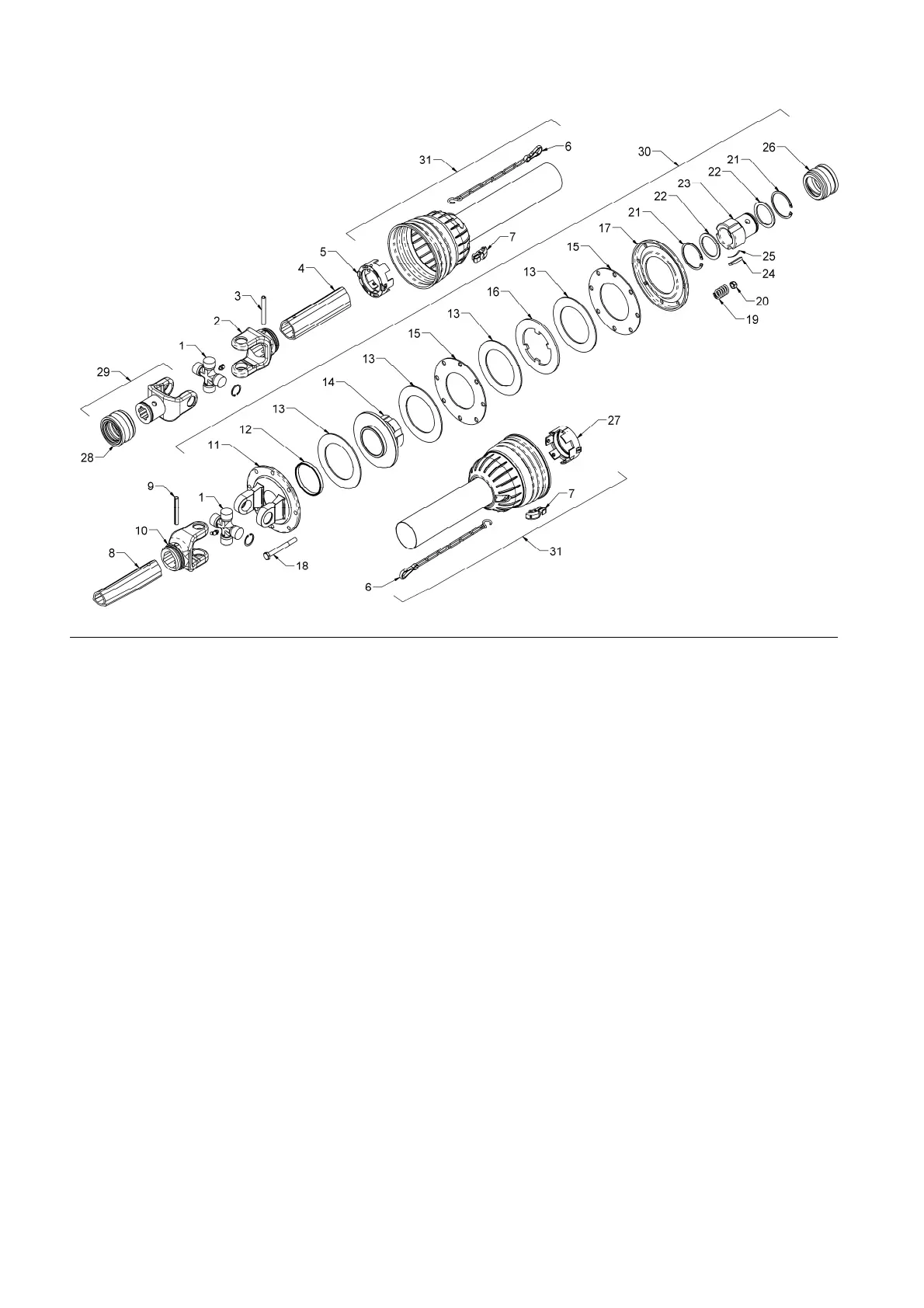

COMER PTO SHAFT – COMBINED SLIP & OVERRUN CLUTCH
Ref Description Part No. Qty Ref Description Part No. Qty
PTO Shaft Complete 540rpm PTO8086
PTO Shaft Complete 1000rpm PTO8079
Tractor End Half Shaft 540rpm PTO2785
Tractor End Half Shaft 1000rpm PTO2786
Machine End Half Shaft PTO2793
1 Cross Journal Kit PTO2321 2
2 Outer Yoke PTO1915 1
3 Spring Tension Pin 10 x 80mm FAS4147 1
4 Outer Tube PTO2705 1
5 Outer Guard Retaining Ring PTO2768 1
6 Anchor Chain PTO2336 2
7 Guard Clip PTO2707 4
8 Inner Tube PTO2706 1
9 Spring Tension Pin 10 x 70mm FAS4145 1
10 Inner Yoke PTO1918 1
11 Flanged Yoke PTO2070 1
12 Bush PTO2071 1
13 Clutch Plate 152.5 x 102 PTO2058 4
14 Overrun Clutch Body PTO2072 1
15 Inner Plate PTO2073 2
16 Intermediate Plate PTO2074 1
17 Pressure Plate PTO2075 1
18 Bolt M10 x 100mm FAS2065 8
19 Spring PTO2076 8
20 Locknut M10 FAS2333 8
21 Inner Circlip FAS7112 2
22 Retaining Washer PTO2077 2
23 Hub - 6 Spline PTO1908 1
24 Ratchet Tooth PTO1911 3
25 Spring PTO1912 3
26 Pull Back Collar For RF Clutches PTO2958 1
27 Inner Guard Retaining Ring PTO2769 1
28 Pull Back Collar Set PTO2771 1
29 6 Spline Yoke PTO2775 1
21 Spline Yoke PTO2784 1
30 Clutch Assembly PTO2929 1
31 T60 Guard Complete PTO2936 1
* Spring length to give correct slip clutch setting.
Minimum torque setting at 35.2mm
Maximum torque setting at 32.5mm
