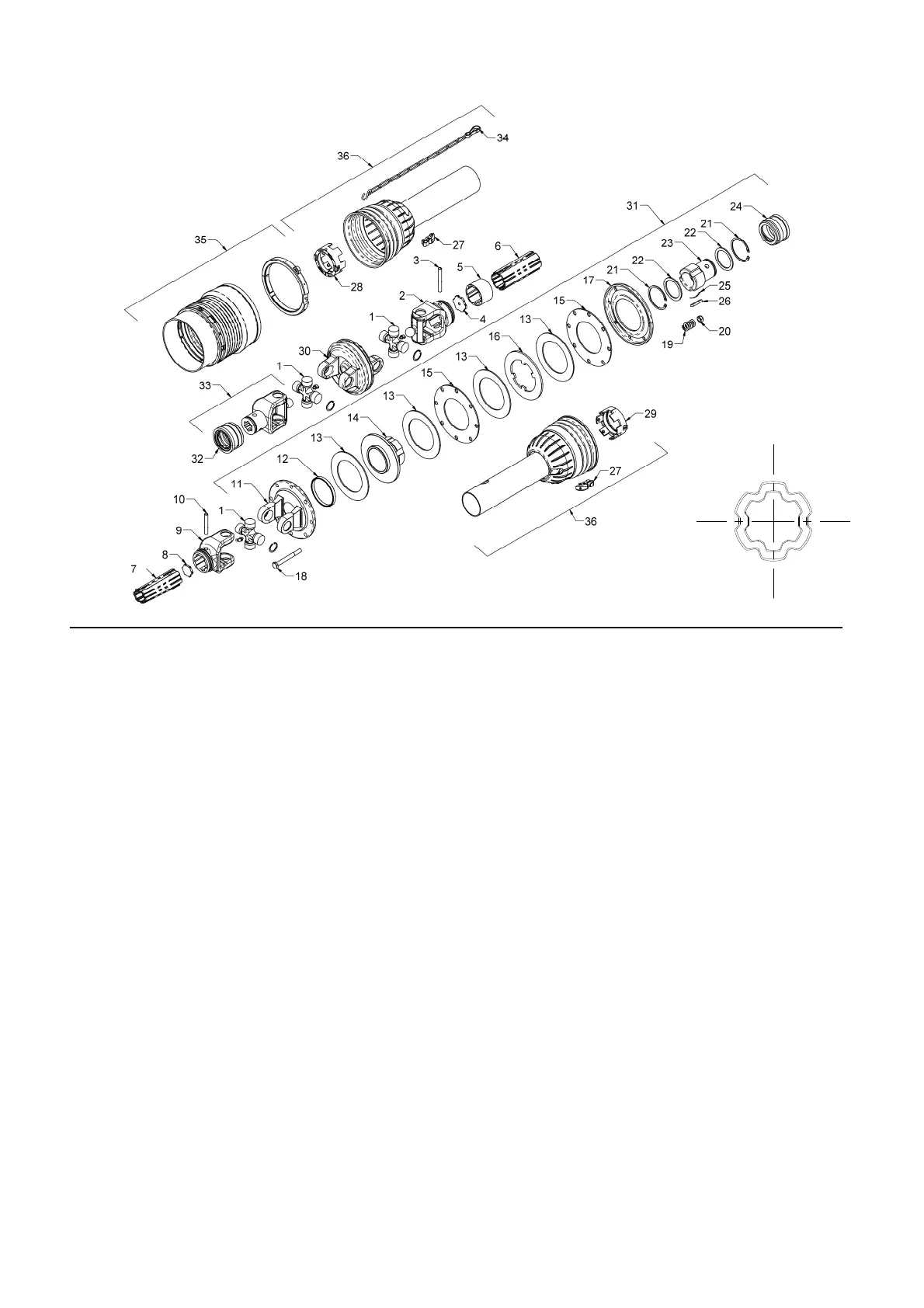

COMER PTO SHAFT – WIDE ANGLE C.V. JOINT FOR TRAILED MACHINES
Tube
Ref Description Part No. Qty Ref Description Part No. Qty
PTO Shaft Complete 540rpm PTO8085
PTO Shaft Complete 1000rpm PTO8088
Tractor End Half Shaft 540rpm PTO2737
Tractor End Half Shaft 1000rpm PTO2738
Machine End Half Shaft PTO2739
1 Cross Journal Kit - C.V. Joint PTO1975 2
2 Outer Yoke PTO2728 1
3 Spring Tension Pin 10 x 80mm FAS4147 1
4 Outer Cap PTO2729 1
5 Wiper PTO2731 1
6 Outer Tube PTO2730 1
7 Inner Tube PTO2732 1
8 Inner Cap PTO2733 1
9 Inner Yoke PTO2734 1
10 Spring Tension Pin 10 x 70mm FAS4145 1
11 Flanged Yoke PTO2070 1
12 Bush PTO2071 1
13 Clutch Plate 152.5 x 102 PTO2058 4
14 Overrun Clutch Body PTO2072 1
15 Inner Plate PTO2073 2
16 Intermediate Plate PTO2074 1
17 Pressure Plate PTO2075 1
18 Bolt M10 x 100mm FAS2065 8
19 Spring PTO2076 8
20 Locknut M10 FAS2333 8
21 Inner Circlip FAS7112 2
22 Retaining Washer PTO2077 2
23 Hub - 6 Spline PTO1908 1
24 Pull Back Collar For RF Clutches PTO2958 1
25 Spring PTO1912 3
26 Ratchet Tooth PTO1911 3
27 Guard Clip PTO2707 4
28 Outer Guard Retaining Ring PTO2768 1
29 Inner Guard Retaining Ring PTO2769 1
30 Wide Angle Double Yoke PTO1911 1
31 Clutch Assembly PTO2929 1
32 Pull Back Collar Kit Set PTO2771 1
33 6 Spline Wide Angle Collar Yoke PTO2721 1
21 Spline Wide Angle Collar Yoke PTO2059 1
34 Anchor Chain PTO2336 2
35 Cone Guard Set PTO1974 1
36 T60 Guard Complete PTO2936 1
(Does Not Include Item 35)
* Spring length to give correct slip clutch setting
Minimum torque setting at 35.2mm
Maximum torque setting at 32.5mm
