38

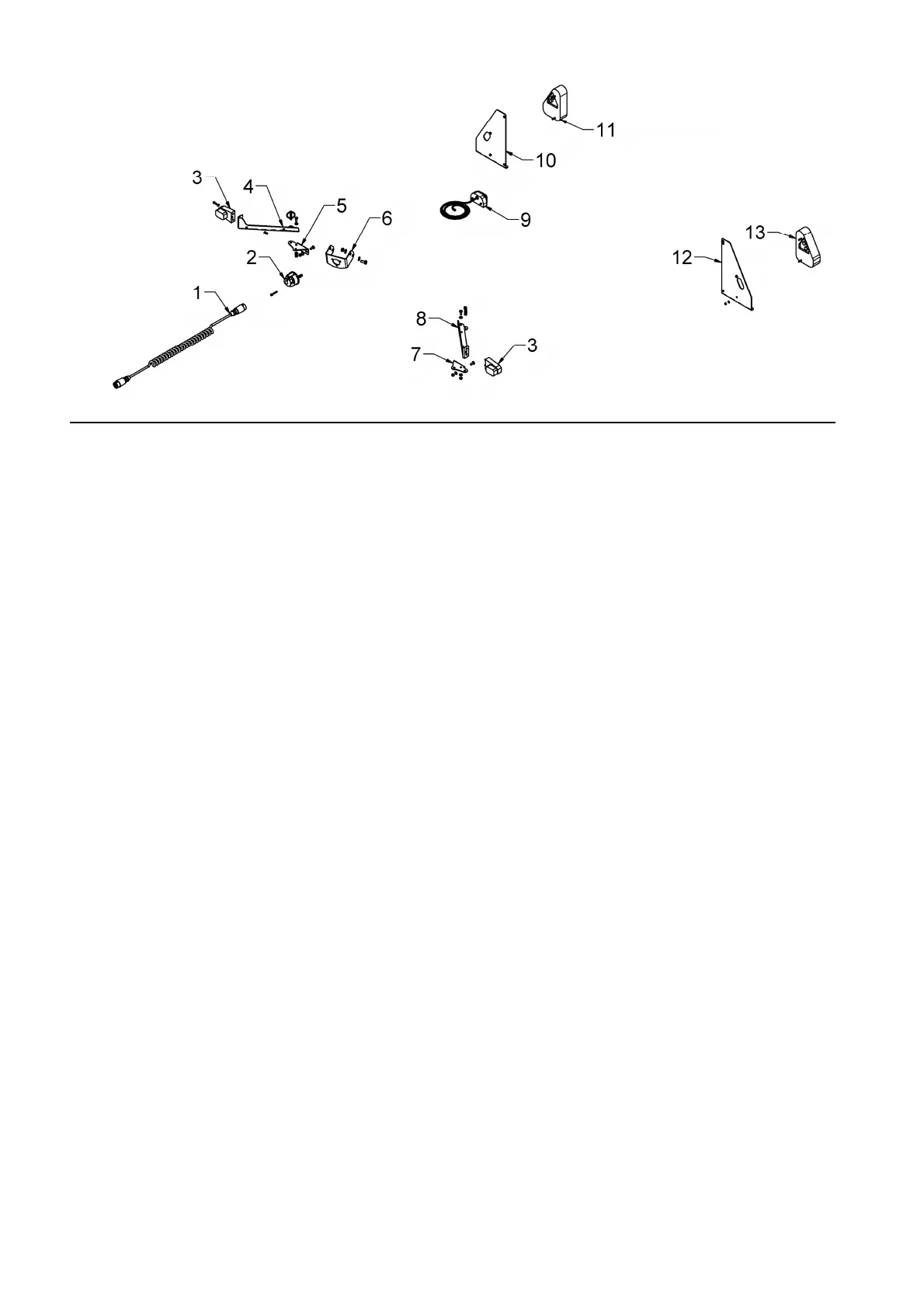

LIGHTS
Ref Description Part No. Q’ty Associated Components Part No. Q’ty
KIT Road Traffic Lighting SC3060 1 Lighting Loom EC1124 1
(Comprising Items 2 - 13)
1 Tractor To Machine Lead - Europe EC1101 1
Tractor To Machine Lead - N America
EC1123 1
2 7 Pin Socket Assembly EC1102 1 M6 x 40 Skt Hd Screw 12.9 FAS9523 3
Plain Washer M6 FAS2342P 3
Locknut M6 FAS2330 3
3 Marker Light EC1103 2 Setscrew M6 x 20 FAS2603P 4
Plain Washer M6 FAS2342P 8
Locknut M6 FAS2330 4
4 Front Light Mounting RH SC4889 1 Setscrew M8 x 20 FAS2627P 1
Plain Washer M8 FAS2343P 2
Locknut M8 FAS2332 1
Lynch Pin 8mm FAS6102 1
5 Front Light Bracket RH SC4892 1 Cup Square Bolt M8 x 20 FAS9241P 2
Plain Washer M8 FAS2343P 2
Locknut M8 FAS2332 2
6 Socket Mounting Bracket SC4912 1 Setscrew M10 x 25 FAS2654P 4
Plain Washer M10 FAS2344P 8
Locknut M10 FAS2333 4
7 Front Light Bracket LH SC4891 1 Cup Square Bolt M8 x 20 FAS9241P 2
Plain Washer M8 FAS2343P 2
Locknut M8 FAS2332 2
8 Front Light Mounting LH SC4888 1 Setscrew M8 x 20 FAS2627P 1
Plain Washer M8 FAS2343P 2
Locknut M8 FAS2332 1
Lynch Pin 8mm FAS6102 1
9 Number Plate Light EC1110 1 Shakeproof Washer M4 FAS9207P 2
Plain Nut M4 FAS2312P 2
10 Rear Light Mount RH SC4884 1
11 Rear Light Unit RH EC1105 1 Lens Rear Light Unit RH EC1107 1
Shakeproof Washer M6 FAS9209P 2
Plain Nut M6 FAS2301P 2
12 Rear Light Unit LH EC1104 1 Lens Rear Light Unit LH EC1106 1
Shakeproof Washer M6 FAS9209P 2
Plain Nut M6 FAS2301P 2
13 Rear Light Mount LH SC4883 1
To Next Page
