SansAmp RBI Specifications
Note: With on-going product development and improvements, specifications and/or
the cosmetic appearance of this unit may change without prior notice.
Replacement parts are available, i.e., knobs, rack handles, faceplate, etc. For
more information, please contact your authorized dealer or Tech 21, Inc.
Model Number: RBI
Input Impedance-Input 1: 1M
Input Impedance-Input 2: 1M
Output Impedance-1/4”: 1K Ohm min
Output Impedance-XLR: 600 Ohm min
Input Level-Input 1: 1V RMS max
Input Level-Input 2: 1V RMS or 10V max, with -20dB pad engaged
Output Level-XLR: Switchable to -20dB or 0dB range
Maximum Output Level: +10dB or better
Effects Loop Send: 1K Ohm min, -20dB
Effects Loop Return: 100K Ohm min, -20dB
Low Frequency Response: 10Hz or better*
High Frequency Response: Harmonic content, 20kHz or better*
Maximum Power Consumption: 5 Watts
AC Input Power (factory set): 100V, 117V, 220V, 230V, 240V
Cycles: 50/60 Hz
NOTE: Each unit is constructed for specific
voltages. AC power cannot be switched.
Enclosure: Aluminum and steel, fully shielded
Dimensions: 19.0”w x 1.75”h x 5.25”d / Overall depth: 6.25”
Weight: 5 lbs.
NOTES: ___________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
*Due to the variety of amplifier emulations available, frequency response
characteristics will vary.
To FOOTSWITCH
IN of
SansAmp RBI #2
To FOOTSWITCH
(Tech 21 FSWA or
EQUIVALENT)
LINE or INST
LEVEL IN
*
LINE or INST
LEVEL IN
*
To AMP
To SansAmp RBI #2
SansAmp RBI #1
SansAmp RBI #2
CHAINING 2 SANSAMP RBIs
GENERAL
"BIAMP" with 2 SANSAMP RBIs
SEND
LINE or INST
LEVEL IN
LINE or INST
LEVEL IN
*
To AMP #2
To AMP #1 To SansAmp RBI #2
SansAmp RBI #1 (set to distorted Highs)
SansAmp RBI #2 (set to clean Lows)
To MIXER
To MIXER
CHANNEL A
To MIXER
CHANNEL B
To
FOOTSWITCH
IN of 2ND RBI
DRY SIGNAL
to MIXER or
RECORDER
To OUTPUT
of PROCESSOR
To FOOTSWITCH
(FSWA or
EQUIVALENT)
DRY FEED to 2nd
AMP, PREAMP or PROC./
TUNER OUTPUT
LINE or INST
LEVEL IN
To MIXER
of PA or
RECORDER
To AMP,
POWER AMP, MIXER,
RECORDER or
SOUNDCARD
To INPUT of
PROCESSOR

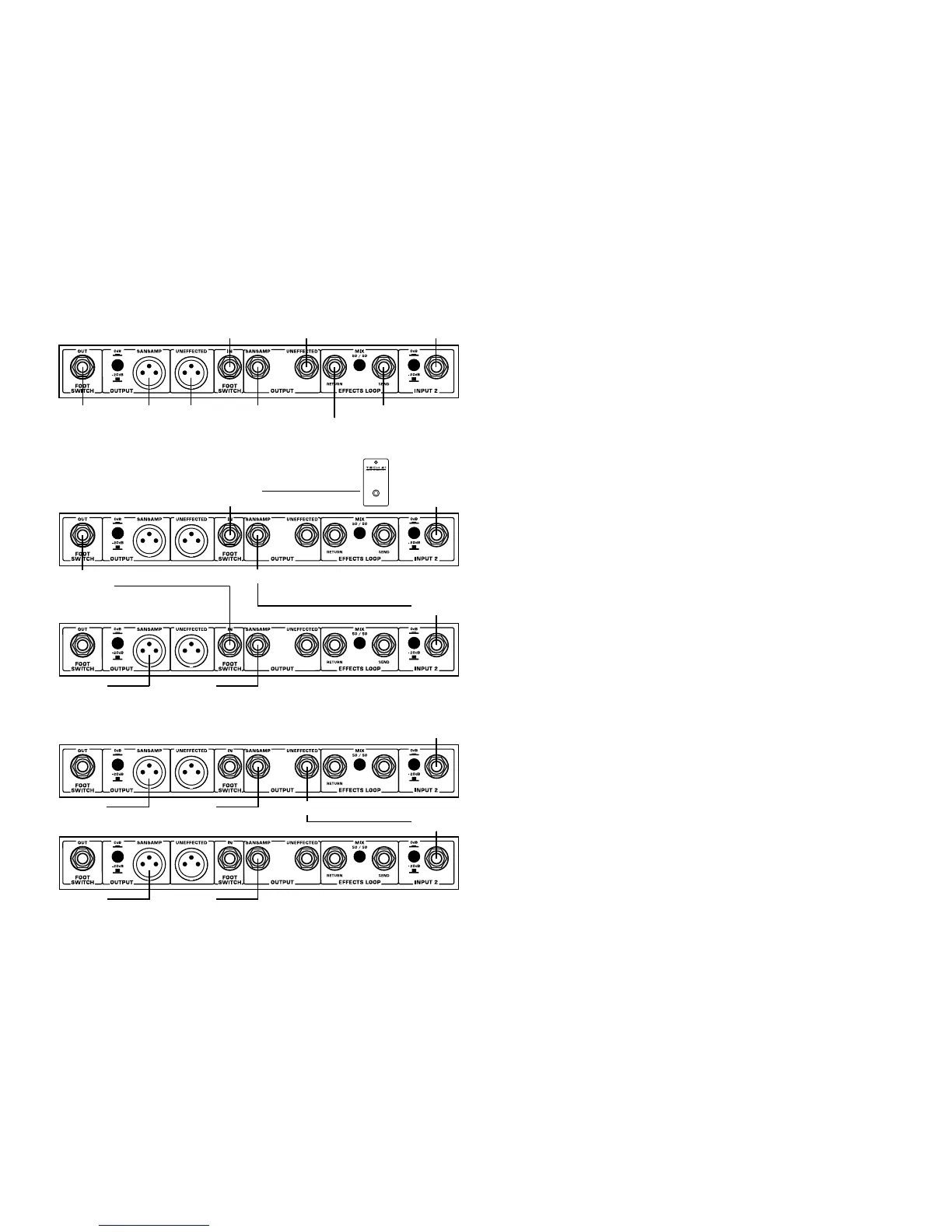

HOOK-UP DIAGRAMS
*NOTE: Engage 0dB pad when biamping.
*NOTE: Set both units at same level,
according to the instrument's output.
"Biamp" with channel switching can be accomplished with four SansAmp RBIs.
For hook-up details, contact Tech 21.
