Tech West ACL2S2 - Desiccant Air Dryer Assembly

12
KEY PART NO. DESCRIPTION UNIT
1 DSV-115 115V PURGE SOLENOID VALVE 1 2 DSV-230 230V PURGE SOLENOID VALVE 1 3 AS-500 1/2 FILTER ASSY 1 4 RDC-100 REPLACEMENT DESSICANT TANK 1 5 MV-250 METERING VALVE 1 6 SN-250-CL STAINLESS STEEL NIPPLE 1/4 3 7 FE-4-6 FLAIR FITTING 1/4 X 3/8 1 8 BV-250 BALL VALVE 1/4 1 9 BT-250 BRASS TEE 1/4 2
10 PFH-375 CLEAR DRAIN HOSE PER FOOT
11 MSD-100 MOLECULAR-SIEVE 1 LB 2LBS
12 MSD-200 ACTIVATED ALUMINA 1 LB 2LBS 13 CV-250D 1/4 CHECK VALVE 1

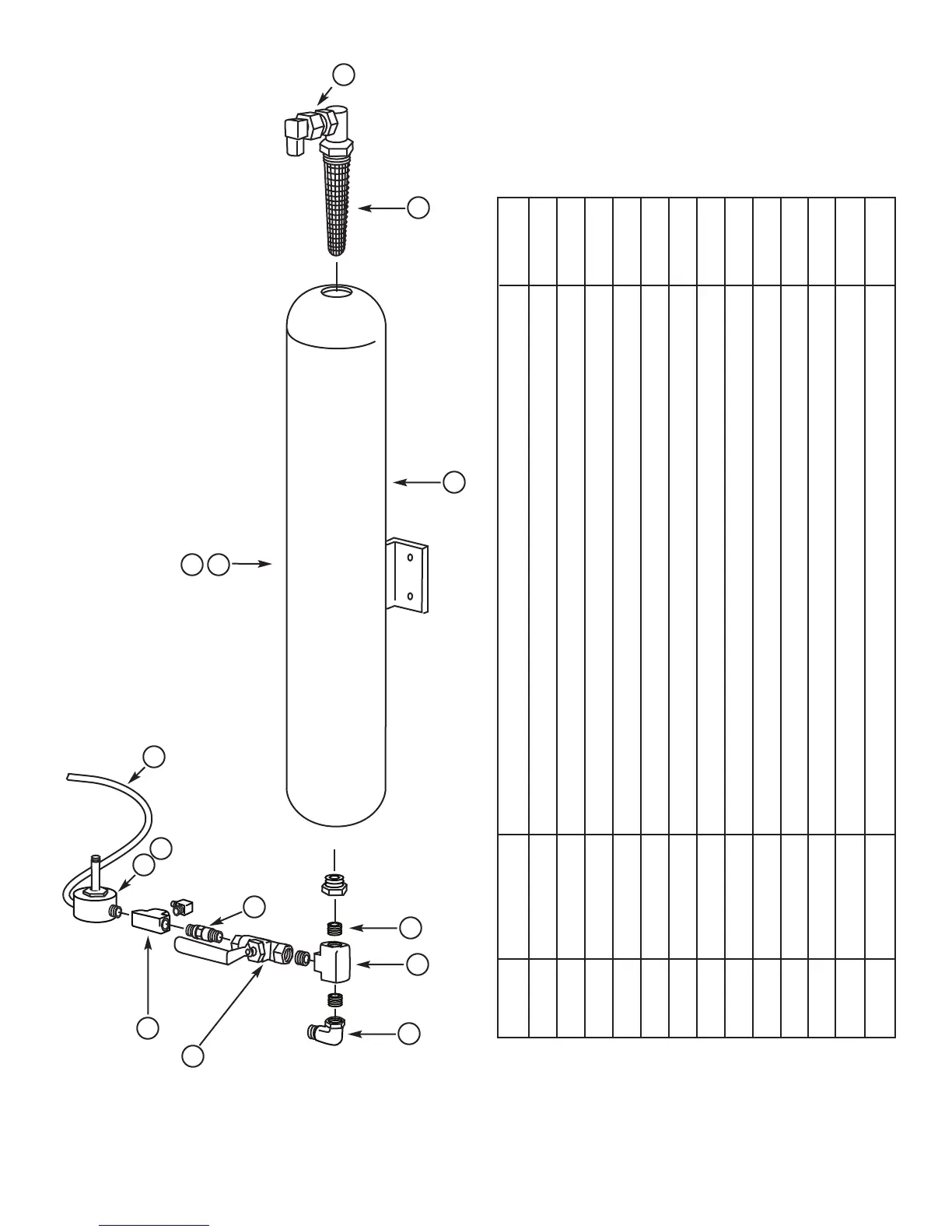

NEW DESICCANT AIR DRYER ASSEMBLY
4
3
5
6
9
7
8
9
1
2
13
12
11
INSIDE
TANK
ELEMENT
10
