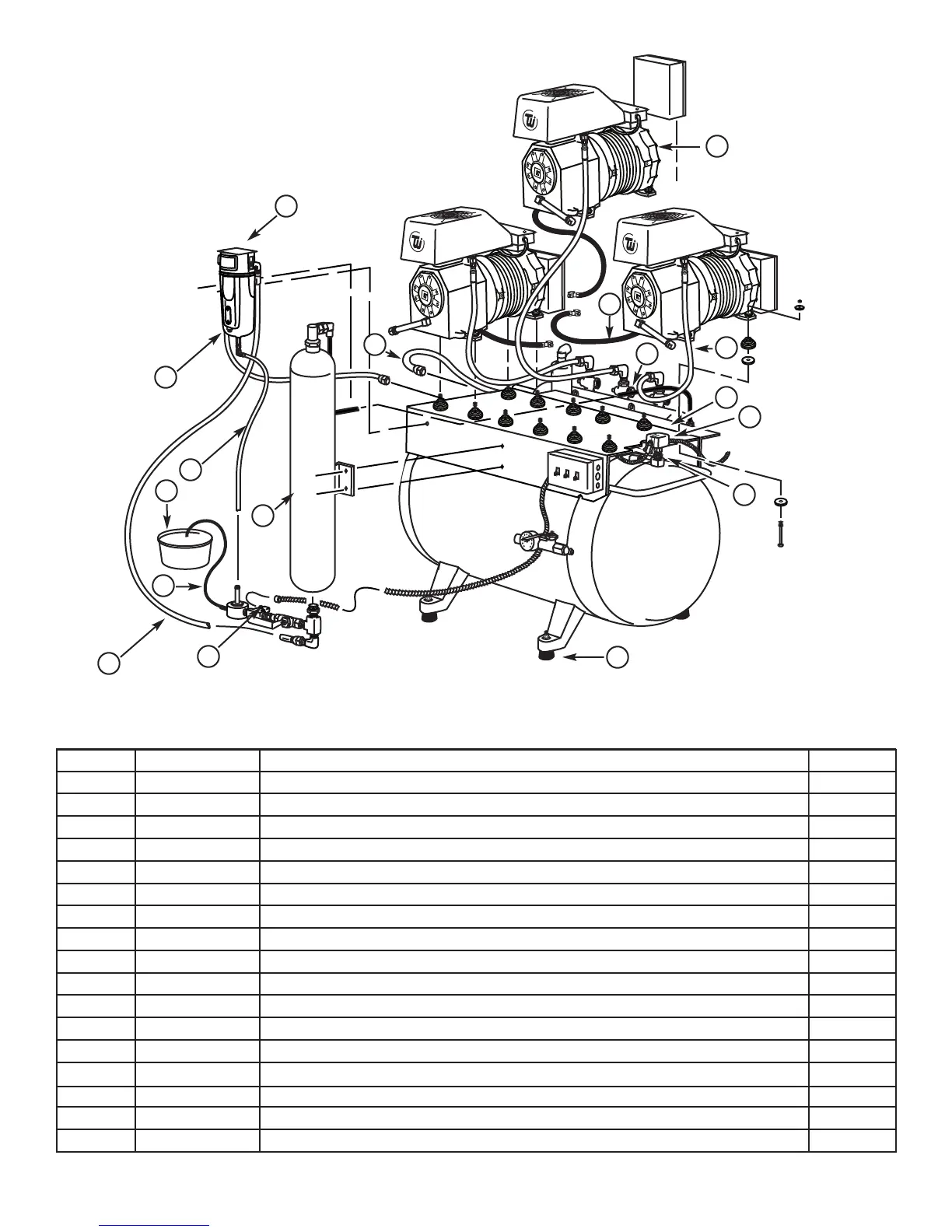

Tech West ACL2S2 - Triple Compressor Assembly

16
KEY PART NO. DESCRIPTION UNIT
1 SBHA-21-375 STEEL BRAID HOSE ASSEMBLY 1
2 SBHA-10-375E STEEL BRAID HOSE ASSEMBLY 1
3 SBHA-9-375E STEEL BRAID HOSE ASSEMBLY 1
4 FPH-375 PURGE FLEX HOSE CLEAR PER FT
5 ZZACS61 POLY FLO TUBE 1/4 1
6 PFT-500 POLY FLO TUBE 1/2 PER FT
7 CFAO-375 COALESCING FILTER 3/8 1
9 DPB-100 DRYER PURGE BUCKET 1
10 CPT-100 COMPRESSOR PURGE TANK 1
11 RDC-100 REPLACEMENT DESICCANT CARTRIDGE 1
12 CV-375D-100 3/8 CHECK VALVE 3
13 DSV-230 PURGE VALVE SOLENOID VALVE 230V 1
14 SBHA-18-375 STEEL BRAID HOSE ASSEMBLY 3
15 CCH-230 LUBRICATED COMPRESSOR HEAD 230V 3
16 RFV-100 RUBBER MOUNTING FEET 4
17 PSC-3 PRESSURE SWITCH 1
18 POVA-100 SAFETY POP OFF VALVE 1
TRIPLE ULTRA CLEAN LUBRICATED COMPRESSOR
14
17
6
16
15
18
2
7
5
13
11
9
4
10
1
3
12
