Tech West ACL2S2 - Page 9

7

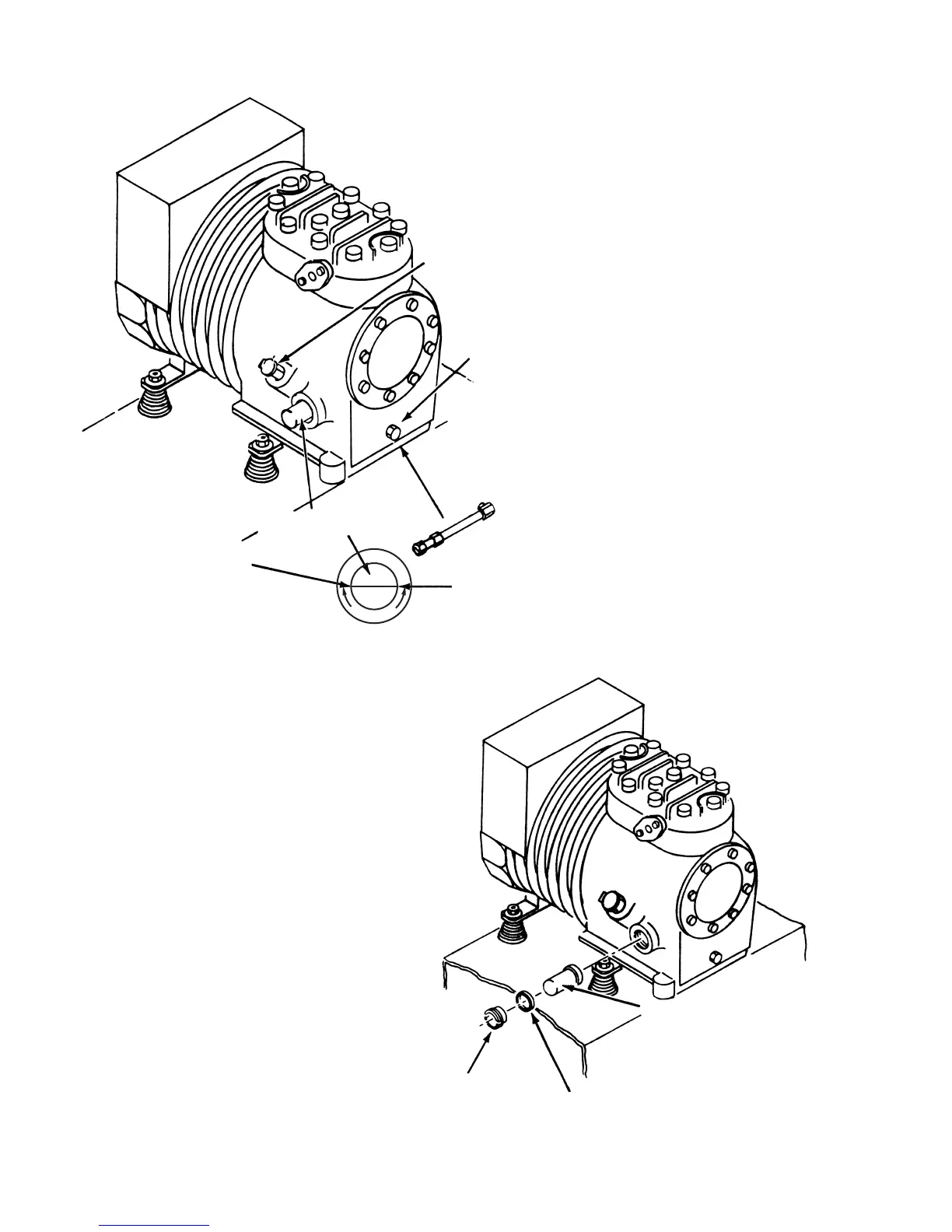

Figure 3: Checking and Changing the Oil
D
O
N
O
T
O
V
E
R
F
I
L
L
K
E
E
P
F
U
L
L
Oil Filler Spout
Indicator Lens
Oil Drain Plug
Keep full to here.
Alternate
Drain Spout
Instructions
Add oil to compressor through
oil filler spout. Do not overfill.
Keep filled to level as shown
below. Oil should be changed
annually or when oil becomes
discolored.
Check oil level with compressor
off and compressor sitting level.
Figure 4: Replace Oil Indicator Lens
Important!
Drain oil from compressor head
before removing lens.
Indicator Lens
Retaining Ring
Gasket
Note:
Replace only if damaged
or discolored.
part #OSG-100
