10.2 Back Board
13. Troubleshooting and Repair
13.1 External Parts
- Check physical appearance of the radio.
Versa PATROL PARTS:
DEFECTS

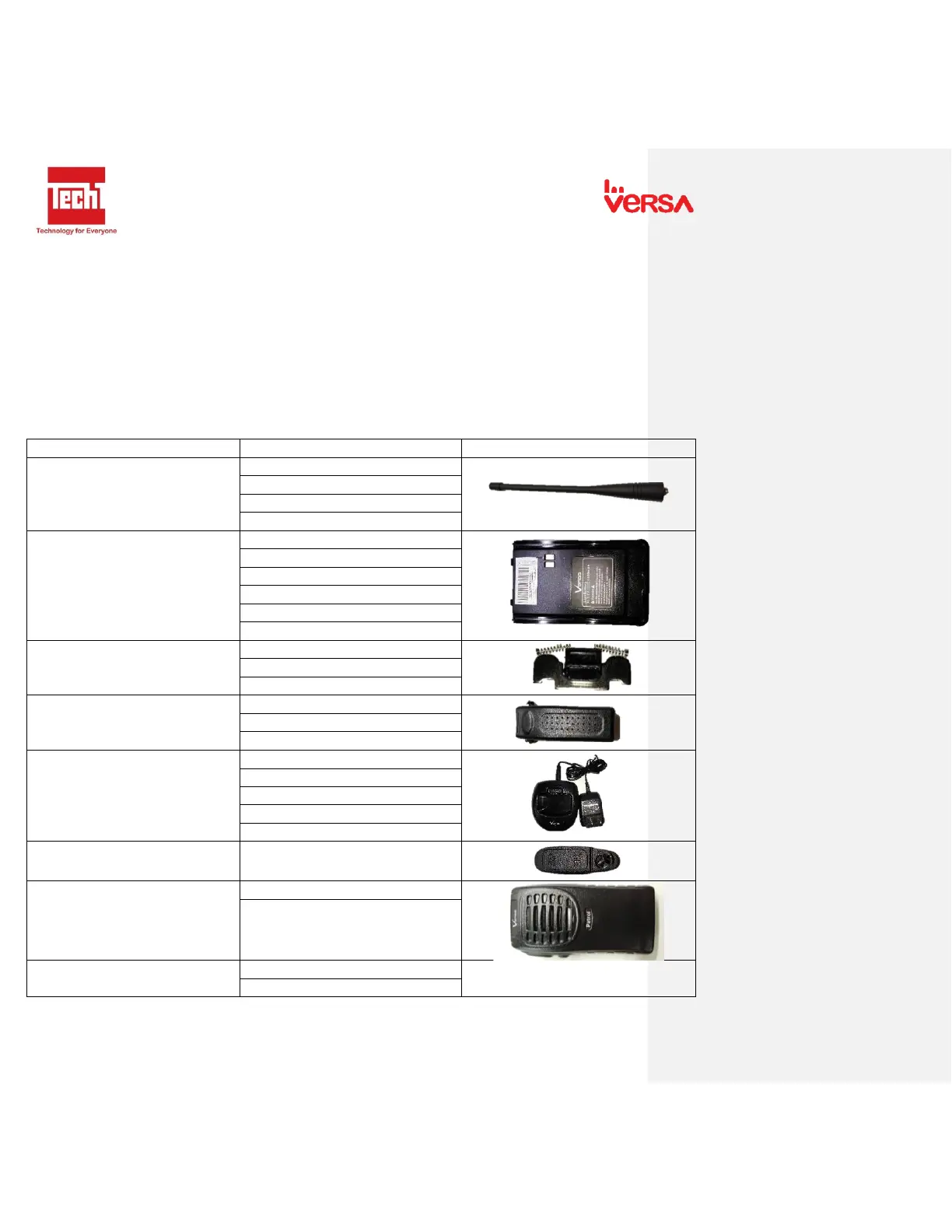

SAMPLE IMAGE
ANTENNA
Bent or Cut
The coil is separated to the insulator
Torn antenna rubber
No Input Terminal
BATTERY
No voltage output (Shorted)
Bloated
No terminal dome
Battery is separated from the housing
Battery has no belt clip terminal
Shorted battery
BATTERY LOCK
No spring
Stuck from the housing
Rusty Spring
BELTCLIP
Bent belt clip
Damaged belt clip
Broken belt clip
CHARGER
No voltage output
Blinking LED
Damaged housing
Cannot charge the battery
No metal terminal
EARMIC COVER
Torn earmic cover
HOUSING
Damaged battery lock holder
Mighty-bonded Housing
PTT RUBBER
Torn PTT Rubber
Hard to press PTT Rubber
