14
 Printable discs are not recommended for use with this unit as the
label side may be sticky and damage the unit.  Do not use
protective coating spray on the discs.  Do not write on discs with
ball point or hard tipped pens. Only use oil-based felt tipped pens. 
Do not use stabilizers. Using commercially available CD stabilizers

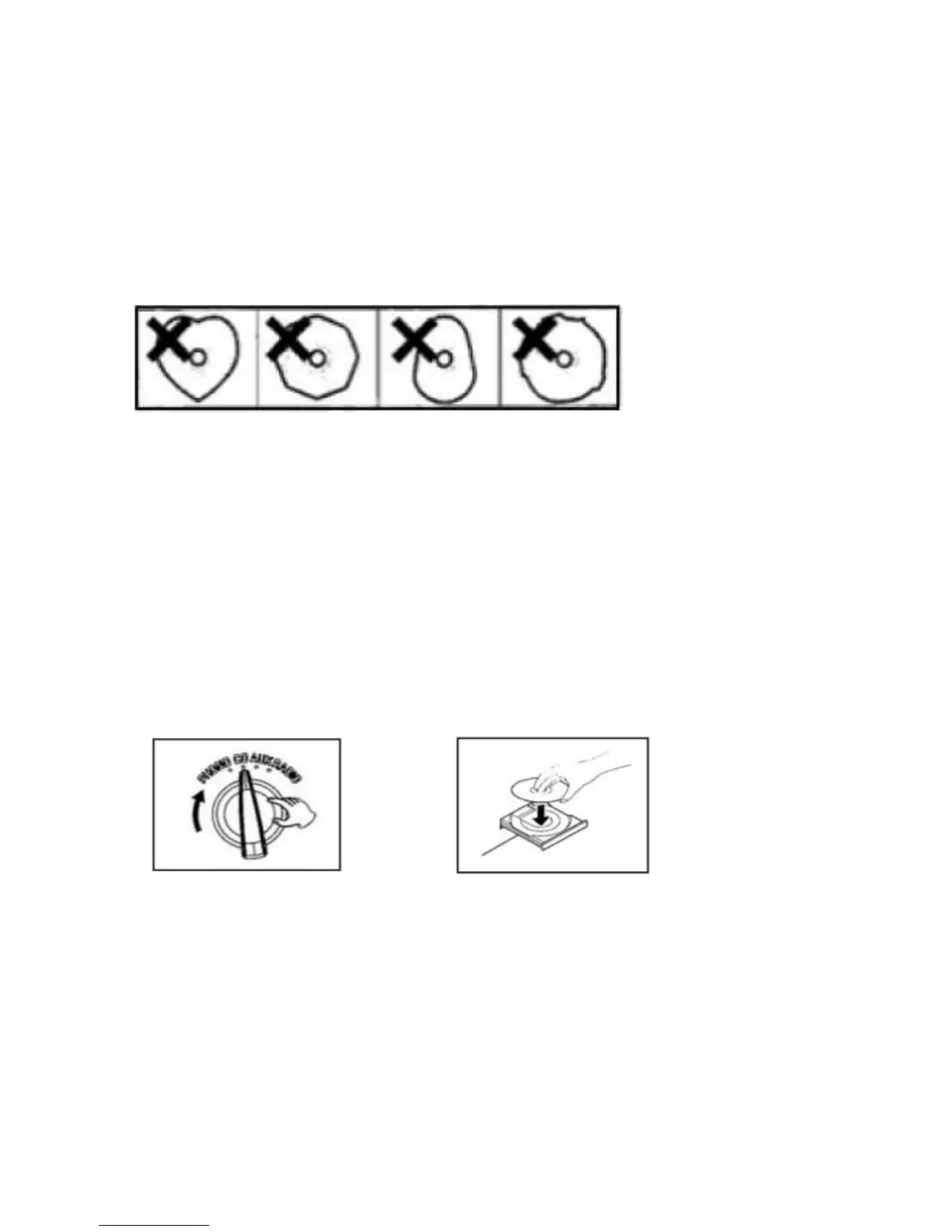

may cause damage to this unit.  Do not use CD’s with an irregular
shape as they may damage the Unit.
 If you have any doubts about the care and handling of a disc, read
the precautions supplied with the disc, or contact the manufacturer
directly.
Playing a CD
 Turn the unit ON by pressing the Power button. Set the function
knob (PHONO/CD/AUX/RADIO) to CD.
 “- -” will blink for a few seconds. When no disc is loaded “no” will
appear on the display screen.
 Place a disc on the tray with the printed label facing up.
 Do not place more than one disc in the tray at a time.
 The disc must be placed in the centre of the disc tray. If the disc is
not properly inserted, it may not be possible to get the disc out once
it has closed.

Technaxx TX-103 Specifications

General

Type	Belt-drive audio turntable
Operation	Semi Automatic
Motor type	DC motor
Product color	Black, Gold
Cartridge type	Ceramic stereo cartridge
Volume control	Rotary
Cassette player	Yes
Turntable speeds	33, 45, 78 RPM
Supported radio bands	AM, FM
Audio formats supported	MP3, WMA
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, SD, SDHC
Signal-to-Noise Ratio (SNR)	45 dB
USB version	2.0
Bluetooth range	8 m
Bluetooth version	2.0+EDR
Bluetooth profiles	A2DP, HFP
USB ports quantity	1
Power supply type	AC
AC adapter frequency	50 Hz
AC adapter output voltage	230 V
Power consumption (typical)	18 W
Impedance	4 Ω
Frequency range	60 - 16000 Hz
RMS rated power	2.5 W
Number of speakers	2

Weight and Dimensions

Depth	445 mm
Width	335 mm
Height	235 mm
Weight	7000 g
