Estative
Metallic, very stable, provided with coaxial controls at both sides to enable coarse and fine
focusing. The right control has a tension adjusting ring; the left one has a fast focusing devi-
ce. The nosepiece is quadruple or quintuple, up to the model.
Focusing travelling
- Macro = 25 mm with final stop.
- Micro = 25 mm, 0-200 microns each 2 microns.
Head
We have available different types of head depending on the model you choose:
- Monocular, inclined 45º and rotary 360º. It can be fixed in any position.
- Binocular, inclined 45º and rotary 360º. Symmetrical interpupillary graduation with scale
from 53 up to 72 mm, dioptric equalizing rings (2 dioptres each), with tube's equalizing scale
(160 mm).
- Trinocular, it is provided with a binocular head, inclined 45º and rotary 360º. Symmetrical
interpupillary graduation with scale from 53 up to 72 mm, dioptric equalizing rings (2 diop-
tres each) and a vertical tube to be adapted to a photographic camera or a video.
- Multiple head, for simultaneous observation in the same direction, bright and magnifica-
tion, with a beam's adapter divider.
Condenser
Abbe double lens.
- Numerical aperture: 1.25.
- Moveable filter holder. It includes blue and green filters (32 mm diameter).
- Vertically variable by pinion and rack.
Stage
- Coaxial and vertical control knobs.
- Dimensions: 140 x 140 mm
- Travelling area: 70(X) x 50(Y) mm.
- Graduated scales at 0,1 mm.
Iris diaphragm
- Located under the condenser and the stage, it controls the amount of light that enters the
condenser.
Illuminator
- Halogen, low tension with halogen lamp 6V 20W, built-in feeder (220-230V 50Hz ±10%),
switch and intensity adjust potentiometer. Concave mirror included for reflected life ligh-
ting.
Packaging
- Cardboard box with protective items to send the equipment.
- Dimensions: 380x340x520 mm.
- Weight: 14 kg.
Version 3 November-07 Instruction manual 50100XXX Page 29

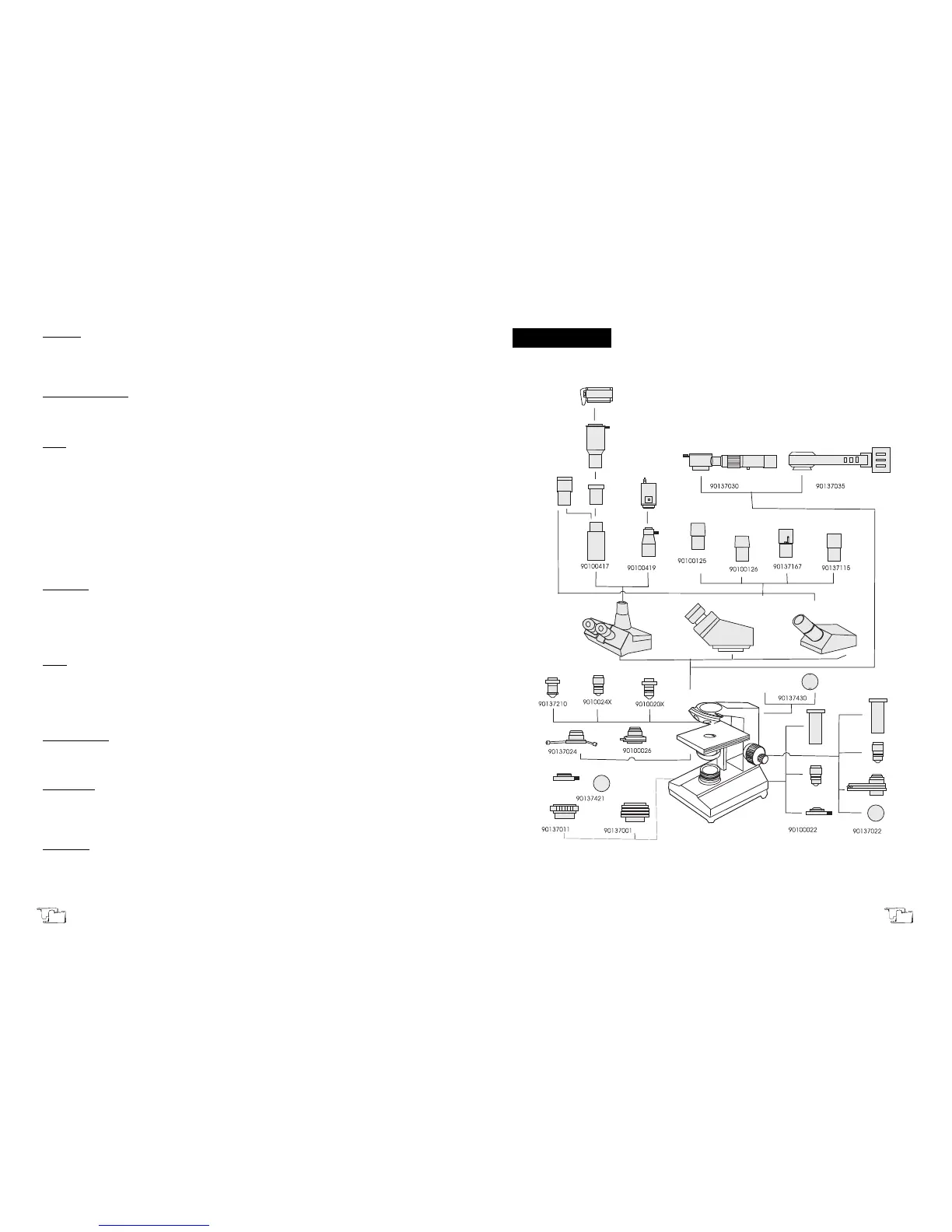

10. ACCESSORIES
