PX3000
9. 1/4” INPUTS
Connect the 1/4” inputs from your signal sources to these inputs.
10. SPEAKON OUTPUTS
The PX3000 comes equipped with two speakon connectors. When connecting the speakon cable, insert the
Speakon connector and turn it to the right to lock it into place.
NOTE: Use the banana binding post or speakon outputs. The banana binding post and speakon outputs should
Not be used at the same time.

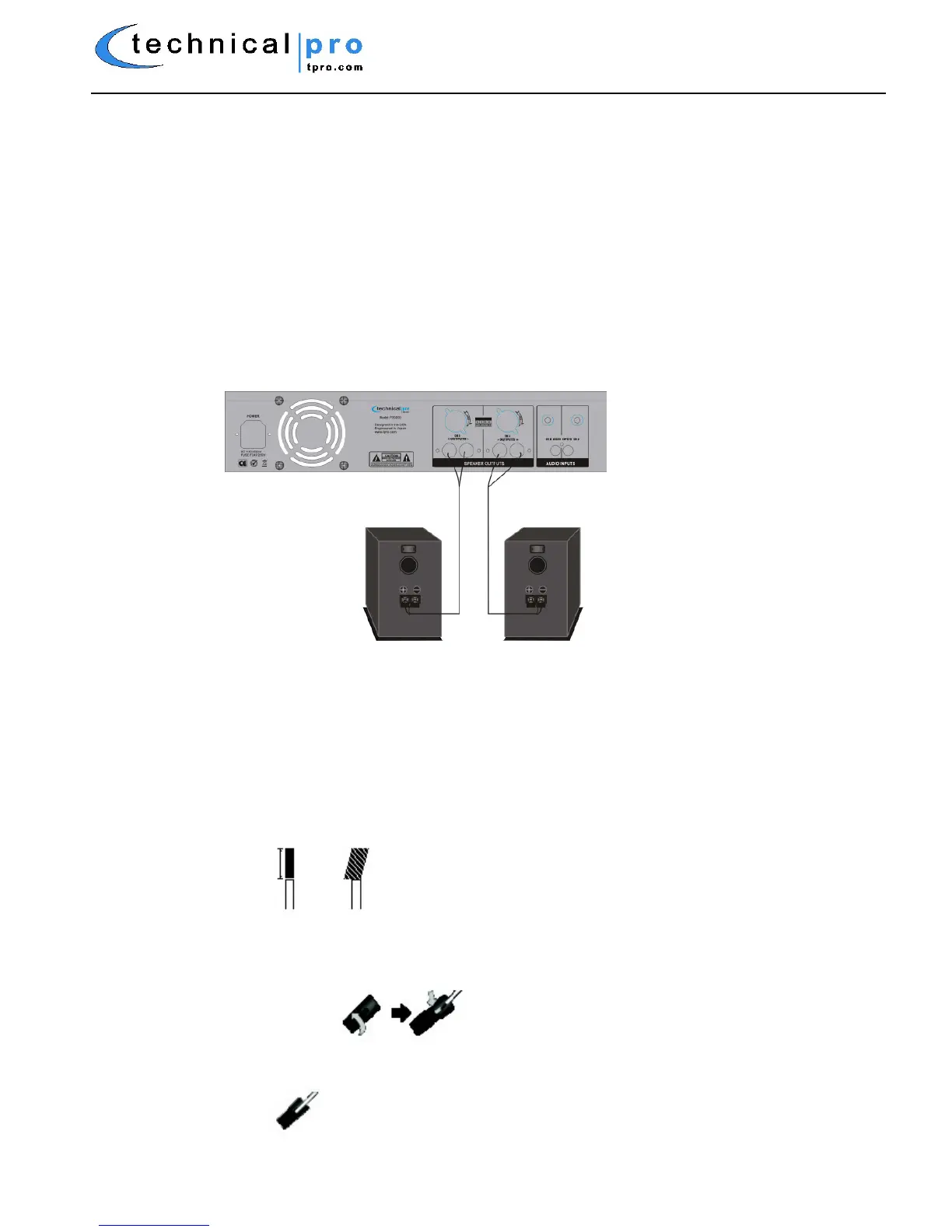

Wiring the Amplifier using Speaker Wire
There are two banana binding post outputs on the rear of PX3000. To use the banana binding post
Outputs you will need to use a banana connector or speaker wire. You can connect the speakers
To these speaker ouputs via the speaker cable included. See below on how to connect two speakers
To the PX3000 main speaker outputs using speaker wire.
------------------------------------------------------------------------------------------------------------------------------
1. Remove approximately 10mm(0.4 in) of insulation from the end of each speaker
Cable and twist the exposed wires of the cable together to prevent short circuits.
-----------------------------------------------------------------------------------------------------------------------------------------------
2. Unscrew the banana binding post output terminal on the rear of the PX3000. Insert the exposed
Speaker wire into the opening.
-----------------------------------------------------------------------------------------------------------------------------------------------
2. Tighten the knob.
NOTE: WHEN MAKING THESE CONNECTIONS THE POWER OF THE PX3000 AND THE SIGNAL
SOUCE SHOULD ALL BE IN THE OFF POSITION WITH THE VOLUME LEVELS TURNED DOWN.
To Next Page
