Model: RX38Ur
Sub1
SUBOUT
SUBOUT
Sub2
NOTE:SURROUND ONLY WORKS WHEN ALL
SURROUND SPEAKERS ARE CONNECTED.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Typical RX38Ur Input and Output Connections
NOTE: WHEN MAKING THESE CONNECTIONS THE POWER OF THE
RX38Ur
AND THE SIGNAL
SOURCE SHOULD ALL BE IN THE OFF POSITION WITH THE VOLUME LEVELS TURNED DOWN
TAPE RECORDER
(AUDIO OUTPUT)
(AUDIO INPUT)
(AUDIO OUTPUT)
iPhone

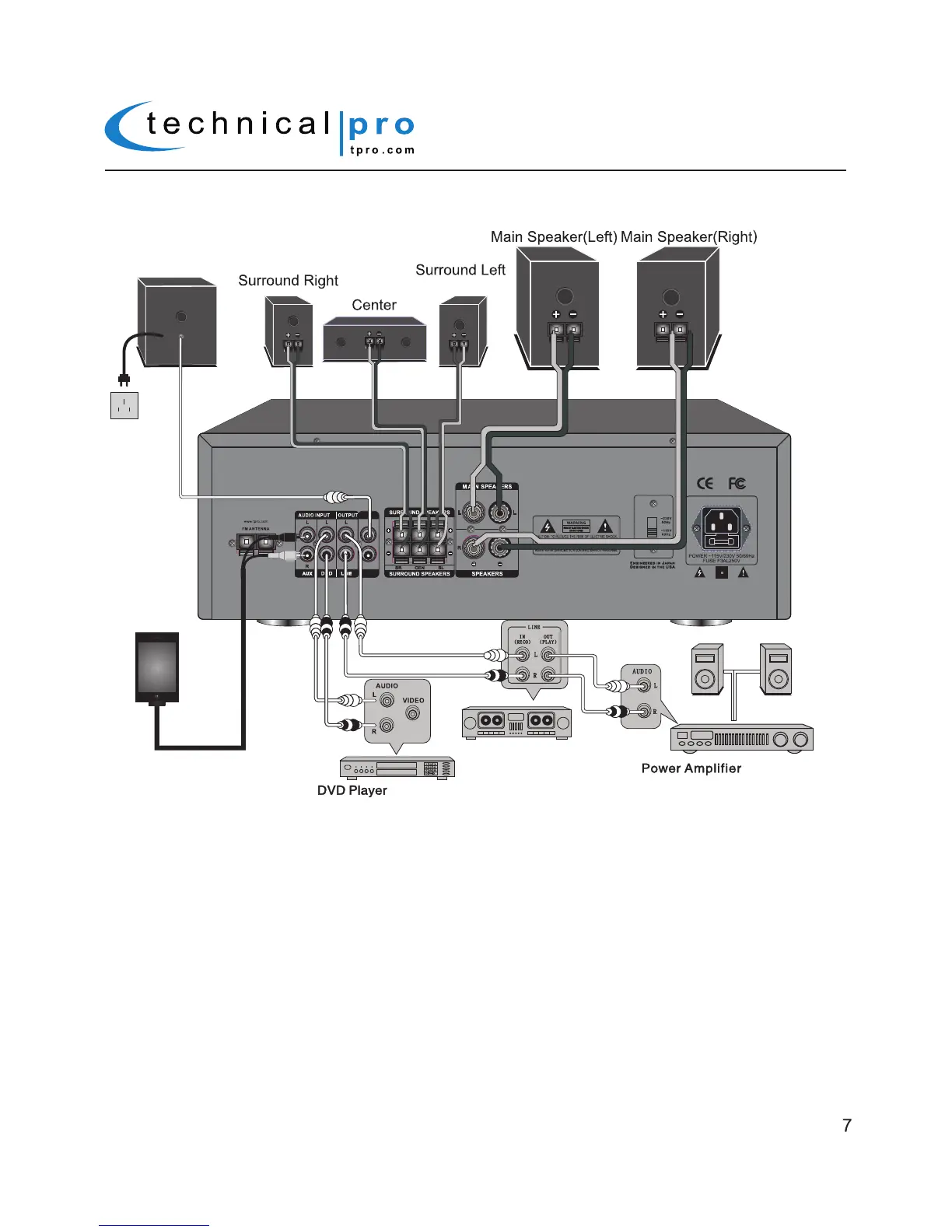

In the typical setup, a user should wire from the output of the signal source directly to one of the
RCA inputs on the rear of the RX38Ur. Once the input signal source is connected to the RX38Ur,
connect the speakers to the RX38Ur’s main outputs. Pictured above is an iPhone and DVD player
connected to the RX38Ur inputs. The RX38Ur has two full range loudspeaker, three surround
speakers and one subwoofer connected to it which will play either the signal from either the iPhone,
DVD,USB Flash Drive,SD Card,
iPod
™
(Classic and Nano) or MP3 player .The surround speakers only
work when ALL surround speakers are connected.The LINE OUTPUT is connected to the input of a
tape recorder. The output of the tape recorder is connected to the input of another amplifier. You can
bypass the tape recorder and connect the LINE OUTPUT directly to the input of another amplifier. The
LINE OUTPUT will send the signal from the selected input (AUX, DVD, USB Flash Drive,SD Card,
iPod
™
(Classic and Nano) or MP3 player).
