Technicolor TG588v v2 Configuration Manual

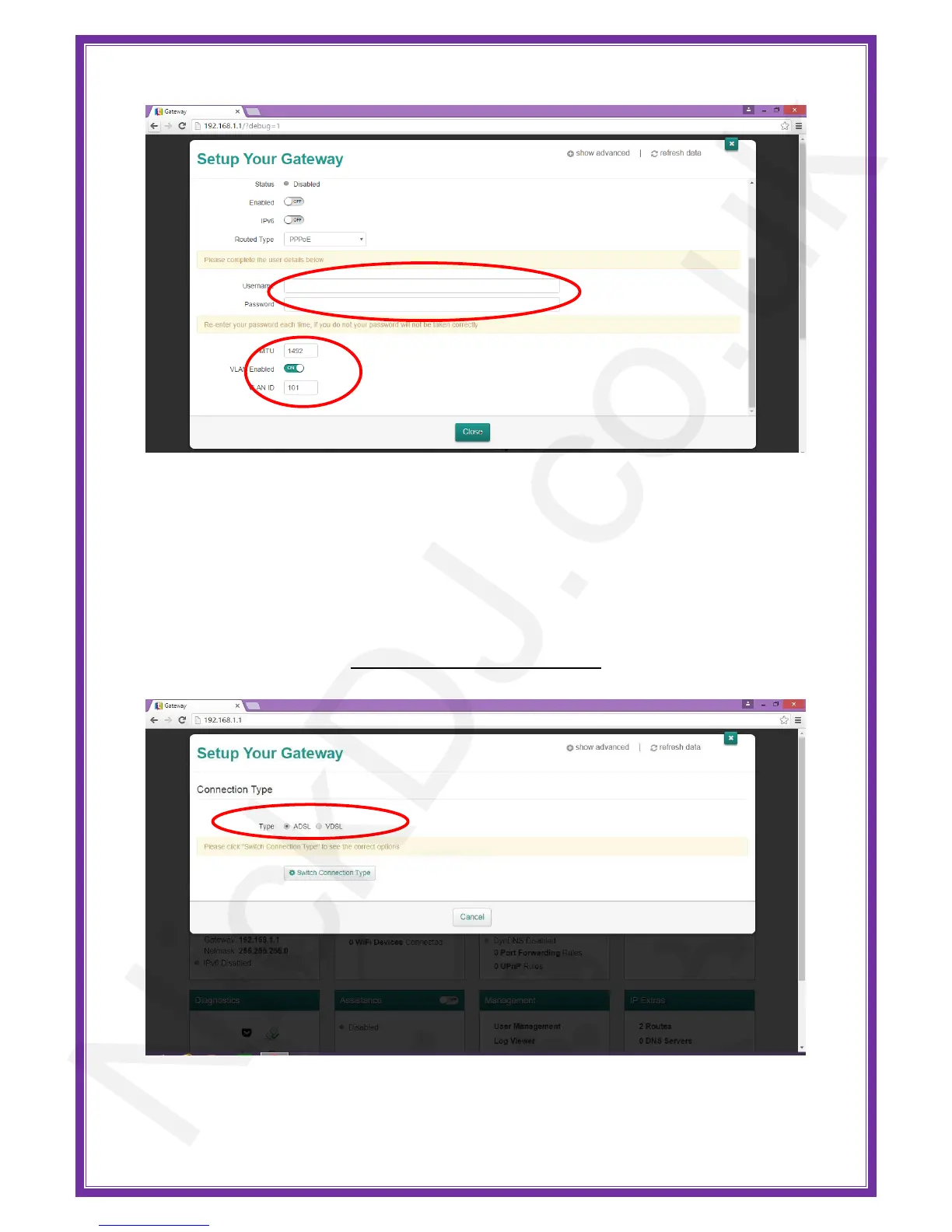

Enter the username and password provided by your ISP. If configuring for VDSL/FTTC make sure
make sure MTU is set to 1492 and VLAN is enables with the ID of 101. This should be the default
setting.
Once complete click Save to finish the process. You may need to wait a few minutes for the router
to connect.
Configuring for ADSL
When you select the option ADSL you will get the above screen. Click on Save Connection Type.
NickDJ.co.uk

Technicolor TG588v v2 Specifications

General

Device Type	ADSL2+ Modem Router
Wi-Fi Standards	802.11b/g/n
Wi-Fi Frequency	2.4 GHz
WLAN speed	Up to 300 Mbps
Ethernet Ports	4 x 10/100 Mbps
USB Ports	1 x USB 2.0
DSL Interface	RJ-11
Security	WEP, WPA, WPA2, WPS
Weight	320 g
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
ADSL Standards	ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite), ITU-T G.992.3, ITU-T G.992.5 (ADSL2+)
VoIP	Yes
Humidity	20% to 90% (non-condensing)
