6
7

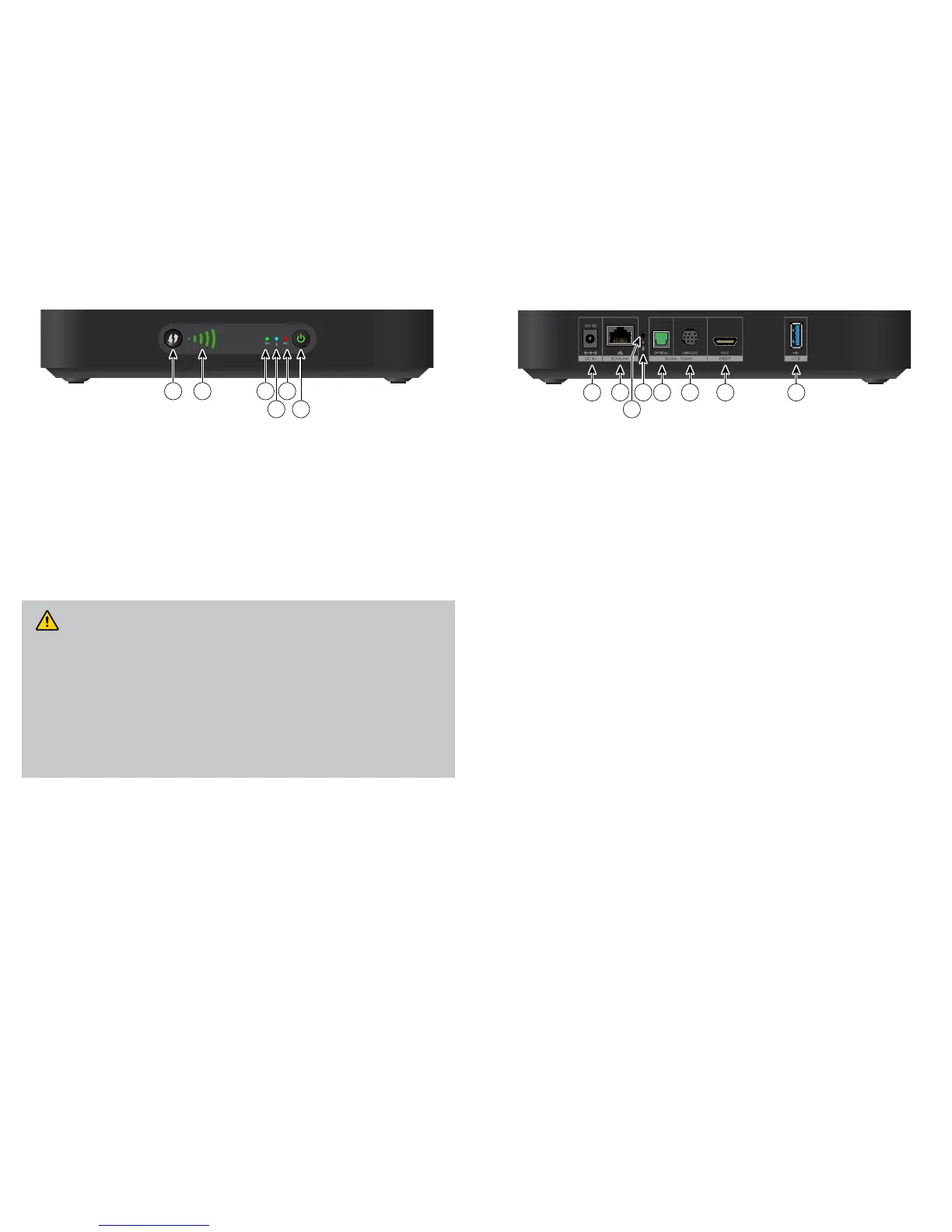

UIW8001 and UIW4001 Front Panel UIW8001 and UIW4001 Back Panel
1 WPS button Press to pair with Wireless Access Point.
2 Signal Strength Indicator Identifies the strength of the wireless connection.
3 Link LED Indicates network link status. The LED is green.
4 Bluetooth LED Indicates when a Blutooth Remote is paired with the set-top. The LED
is blue.
5 REC LED Indicates that a recording is in progress. The LED is red.
6 Power Button and LED Powers on the set-top box or places it in standby. The LED is green
when on and red when in standby.
Note: This illustration may vary from the actual product.
CAUTION: Your set-top box may be equipped with a hard disk drive to store programs
that you record and to allow you to rewind and pause live TV. Any time the set-top box is powered
on (power LED is illuminated) or a recording is in progress (the record LED is illuminated) the
hard disk drive is in use.
If you need to move the set-top box, complete the following steps to allow the hard disk drive to
shut down properly. First, make sure that no recording is in progress (record LED is o). Then,
turn o power by pressing the Power switch. Finally, unplug the unit and wait 10 seconds for the
hard disk drive to spin down (stop). At this point the unit can be moved safely.
You should handle this product with the same level of care that you would use when handling
other electronics containing a hard disk drive, such as a laptop computer or other hard disk
drive-equipped devices.
1 Power Connect the DC output of the AC power adapter (provided) to
deliver power to the set-top box. Use only the AC power adapter
provided with the set-top box.
2 Ethernet Connect to Ethernet (CAT-5) network at your home, if applicable.
3 DR Press and release to trigger a disaster recover recovery process.
4 Bluetooth Press and release to initiate Bluetooth remote control unit pairing with
wireless receiver.
5 Optical Connect to an optical cable to send a digital audio signal to a surround
sound system or other digital audio device.
6 Analog Mini-DIN Alternative method for video and audio connections. Oers analog
component, composite, and stereo audio outputs.
7 HDMI Connect an HDTV HDMI (High-Definition Multimedia Interface)
cable from the HDTV to the HDMI port. HDMI supports both digital
audio and video. See page 13 for more information
8 USB 3.0 Allows connectivity with USB 3.0 devices.
Note: This illustration may vary from the actual product.
T16708
1 2 3
4 6
5
DR
T16709
1 2 4 5 6 7 6
3
