Technicolor UIW8001 - Advanced HDTV Connections; HDTV Connection with DVI Connector; HDTV Connection with Mini-DIN Connector

14
15

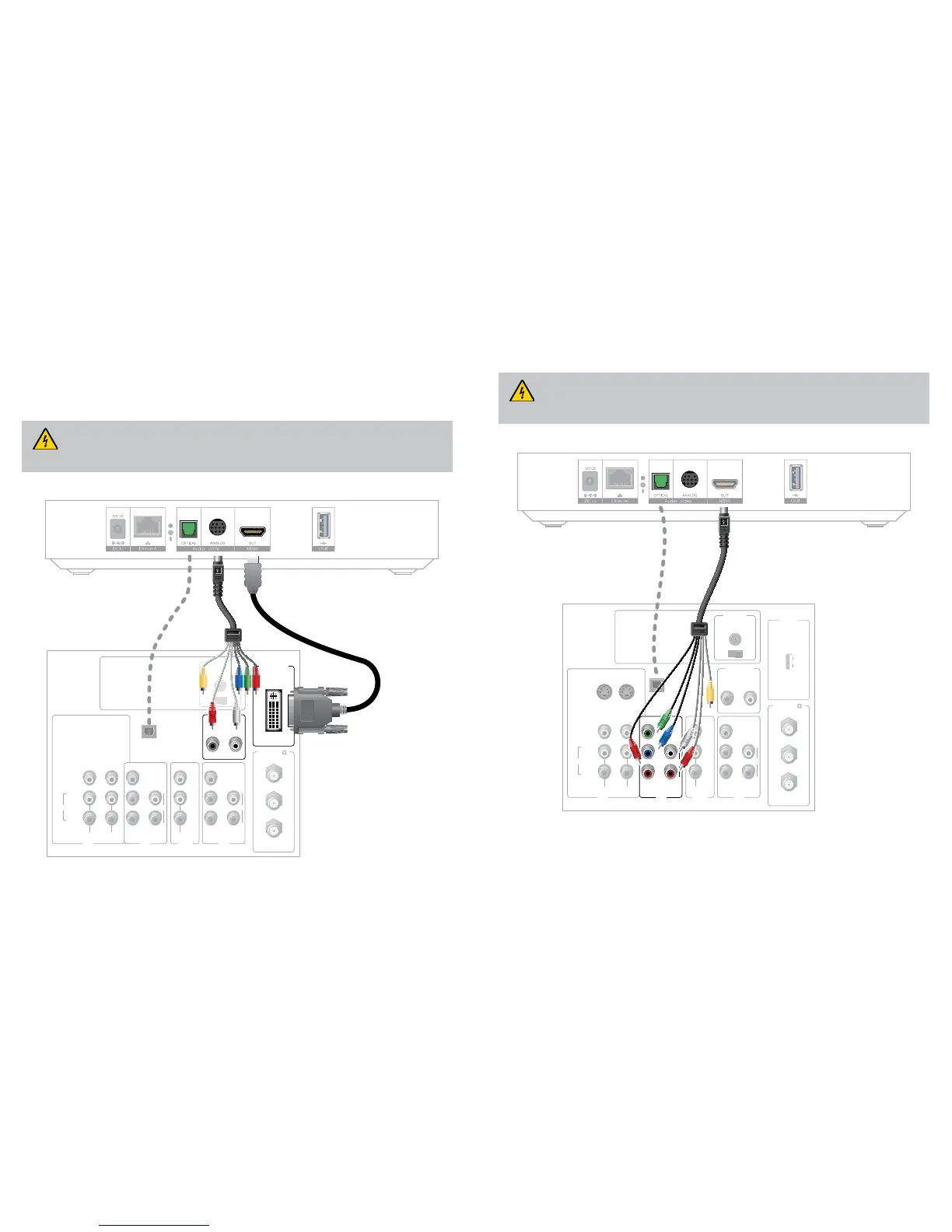

Connecting to an HDTV with a DVI Connector
Cables Used in this Configuration
• 1 HDMI-to-DVI cable or 1 HDMI cable and 1 HDMI-to-DVI adapter
• 1 Mini-DIN cable
Notes:
• The DVI port on the TV must support high-bandwidth digital content protection (HDCP)
• When you connect the HDMI connector to the DVI connector on your HDTV, you need an HDMI-to-
DVI adapter and a separate audio connection
Connecting to an HDTV with a Mini-DIN Connector
Cables Used in this Configuration
• 1 Mini-DIN cable (You can also use an optical cable [indicated by the dotted line] instead of the Audio
Left/Right Cable as shown in the diagram, dependent upon your TV’s capabilities.)
WARNING: Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the set-top box.
WARNING: Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the set-top box.
Back of Set-Top Box
DR
Back of HDTV
AUDIO
CENTER
CHANNEL IN
ANT (75 )
INOUT
ANT-1
HD 2
Y
OUT
ANT-2
PB
PR
L
R
VIDEO
L/
MONO
R
L/
MONO
R
AUDIO
IN
ON OFF
IN
HD 1
S-VIDEO
VIDEO
Y
PB
PR
L
R
AUDIOAUDIO
DVI/HDCP
IN
AUDIO IN
DVI/HDCP
LR
OPTICAL
INPUT
OR
T16713
T16714
Back of HDTV
HDMI
AUDIO
CENTER
CHANNEL IN
AUDIO IN
DVI/HDCP
ANT (75 )
INOUT
LR
ANT-1
HD 2
Y
OUT
ANT-2
PB
PR
L
R
VIDEO
L/
MONO
R
L/
MONO
R
AUDIO
IN
ON OFF
S-VIDEO
VIDEO
AUDIO
IN
HD 1
Y
PB
PR
L
R
AUDIO
OPTICAL
INPUT
Back of Set-Top Box
DR
OR
