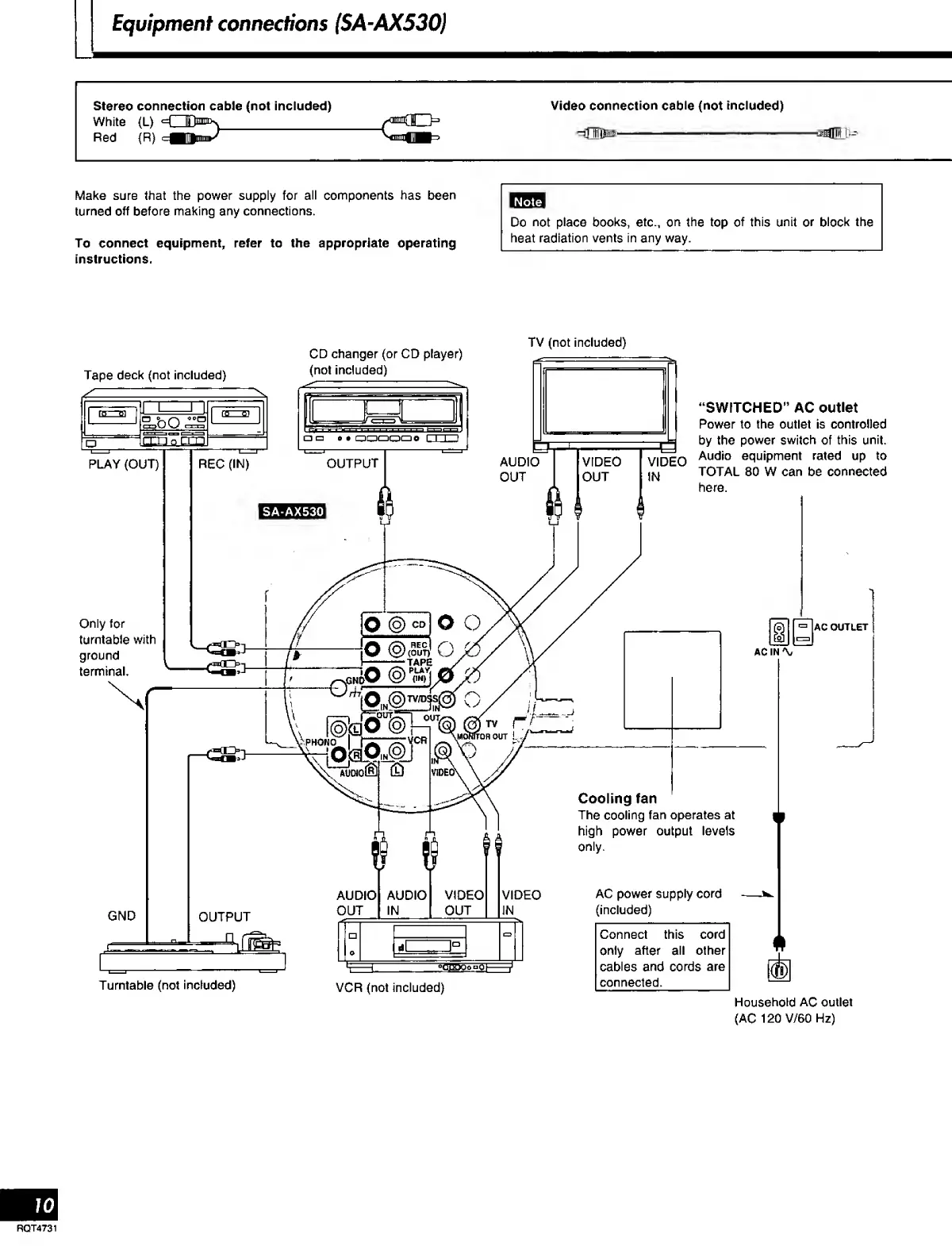

Equipment
connections
(SA-AX530)
Stereo
connection cable (not included) Video
connection cable (not included)
White (L)
Red
(R)
Make sure that the power supply for
all
components has been
turned
off
before
making
any
connections.
To connect
equipment, refer to the appropriate operating
instructions.
Do
not place books,
etc.,
on the
top
of this unit or block
the
heat
radiation vents in
any way.
Tape
deck (not included)
CD
changer (or CD player)
(not included)
TV (not included)
1
1 1
I
|
rn—tn
]
|
io ai
|
1 1 1 Inl 1 M
I -T"
"SWITCHED" AC
outlet
Power to the outlet is controlled
by the
power switch
of
this unit.
Audio equipment rated up to
TOTAL 80 W can be
connected
here.
Turntable (not
included)
VCR (not included)
Household AC outlet
(AC
120 V/60 Hz)
10
RQT4731
