Technics SA-EX310 Service Manual

SA-EX310

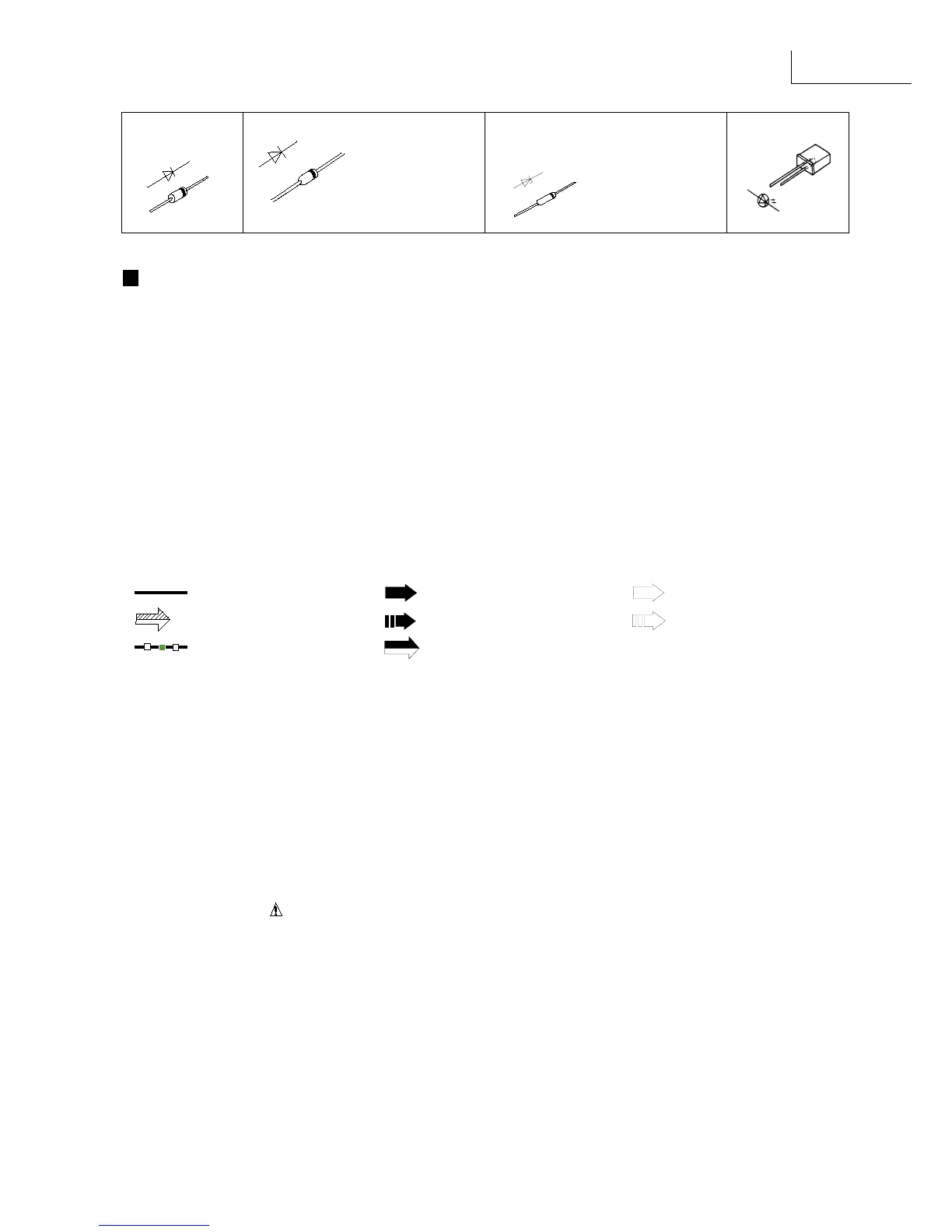

MTZJ5R1BTA
MTZJ5R6BTA
MTZJ7R5CTA
MTZJ9R1CTA
MTZJ6R2BTA
MTZJ15CTA
MTZJ6R8BTA
MTZJ4R7BTA
MTZJ3R9ATA
MTZJ10CTA
MTZJ27DTA
MTZJ24DTA
RVD1SS133TA
1SR35200TB
1SS291TA
MA165TA
Ca
A
Cathode
Anode
Ca
Cathode
Anode
A
: +B line
: Main signal line
: B line
: AM signal line
: AM OSC signal line
: FM/AM signal line
: FM signal line
: FM OSC signal line
 Signal line
Schematic Diagram
(All schematic diagrams may be modified at any time with the development of new technology)
Note :
 S946 : Power switch
 S947 : Phono select switch
 S948 : Muting switch
 S950 : FM Auto/ Mono switch
 S951 : Band select switch
 S952 : Tuning decrease switch
 S953 : Tuning increase switch
 S955 : Memory manual/auto switch
 S956 : Preset decrease switch
 S957 : Preset increase switch
 S960 : Tuner select switch
 S961 : CD select switch
 S962 : Tape select switch
 S963 : TV/DVD select switch
 S964 : VCR select switch
 S970 : Search switch
 S971 : EON switch
 S972 : PTY up switch
 S973 : PTY down switch
 S974 : Display mode switch
 S980 : Speaker switch
 S983 : Dolby Pro Logic/SFC off on switch
 S984 : Dolby Pro Logic mode select switch
 S985 : Center mode select switch
 VR501-1 ~ VR501-4 : Volume control
 VR502 : Balance control
 VR511-1 ~ VR511-2 : Bass control
 VR512-1 ~ VR512-2 : Treble control
Importance safety notice:
Components identified by
mark have special characteristics important for safety. Furthermore, special parts which have purposes of
fire-retardant (resistors), high-quality sound (capacitors), low-noise (resistors), etc. are used. When replacing any of components, be sure
to use only manufacturer's specified parts shown in the parts list.
Caution !
IC, LSI and VLSI are sensitive to static electricity.
Secondary trouble can be prevented by taking care during repair.
Cover the parts boxes made of plastics with aluminium foil.
Ground the soldering iron.
Do not touch the pins of IC, LSI or VLSI with fingers directly.
Put a conductive mat on the work table.
The voltage value and waveforms are the reference voltage of this unit measured by DC electronic voltmeter (high impedance) and oscillo-
scope on the basis of chassis.
Accordingly, there may arise some error in voltage values and waveforms depending upon the internal impedance of the tester or the
measuring unit.
( ) ..... AM < > ..... FM
1N5402BM21
SB360L6508
Ca
A
Cathode
Anode
Anode
Cathode
Ca
A
LN846RPH
