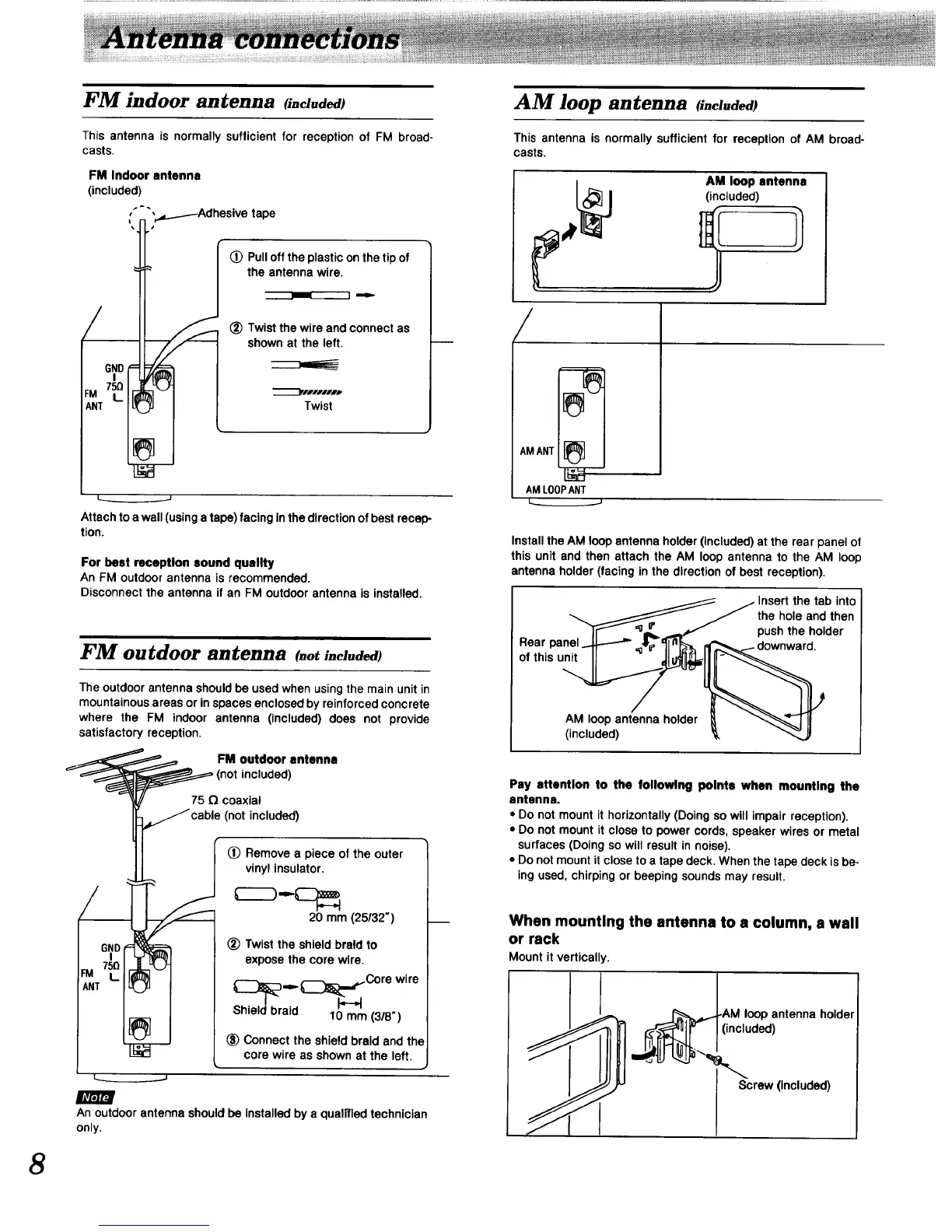

FM indoor antenna (i.clude_j
This antenna is normally sufficient for reception of FM broad-
casts.
FM Indoor antenna
(included)
_'", __.._Adhesive tape
(_) Pull off the plastic on the tip of
the antenna wire.
(_) Twist the wire and connect as
shown at the left.
__ _ _YJOBBfBB_
Twist
Attach to a wall (using a tape) facing Inthe direction of best recep-
tion.
For best reception sound quality
An FM outdoor antenna is recommended.
Disconnect the antenna if an FM outdoor antenna is installed.
FM outdoor antenna (rot ineJu_ed)
The outdoor antenna should be used when using the main unit in
mountainous areas or in spaces enclosed by reinforced concrete
where the FM indoor antenna (included) does not provide
satisfactory reception.
FM outdoor antenna
(not included)
75 £1coaxial
(notincluded)
(_ Remove a piece of the outer
vinyl insulator.
20 mm (25132")
(_) Twist the shield braid to
expose the core wire.
,,,.. Core wire
Shie_l braid 10/_mm(3/8")
_) Connect the shield braid and thq
core wire as shown at the left.
L. ...J
W
An outdoor antenna should be Installed by a qualified technician
only.
AM loop antenna (i.cl.de )
This antenna is normally sufficient for reception of AM broad-
casts.
(included)
[
/
AM ANT
AM LOOPANT
k..._.__.___.J
Install the AM loop antenna holder (Included) at the rear panel of
this unit and then attach the AM loop antenna to the AM loop
antenna holder (facing in the direction of best reception).
tab into
the hole and then
push the holder
of this unit
AM loop antenna holder
(included)
Pay attention to the following points when mounting the
antenna.
• Do not mount it horizontally (Doing so will impair reception).
• Do not mount it close to power cords, speaker wires or metal
surfaces (Doing so will result in noise).
• Do not mount it close to a tape deck. When the tape deck is be-
ing used, chirping or beeping sounds may result.
When mounting the antenna to a column, a wall
or rack
Mount it vertically.
loopantennaholder
(included)
Screw (included)
To Next Page
