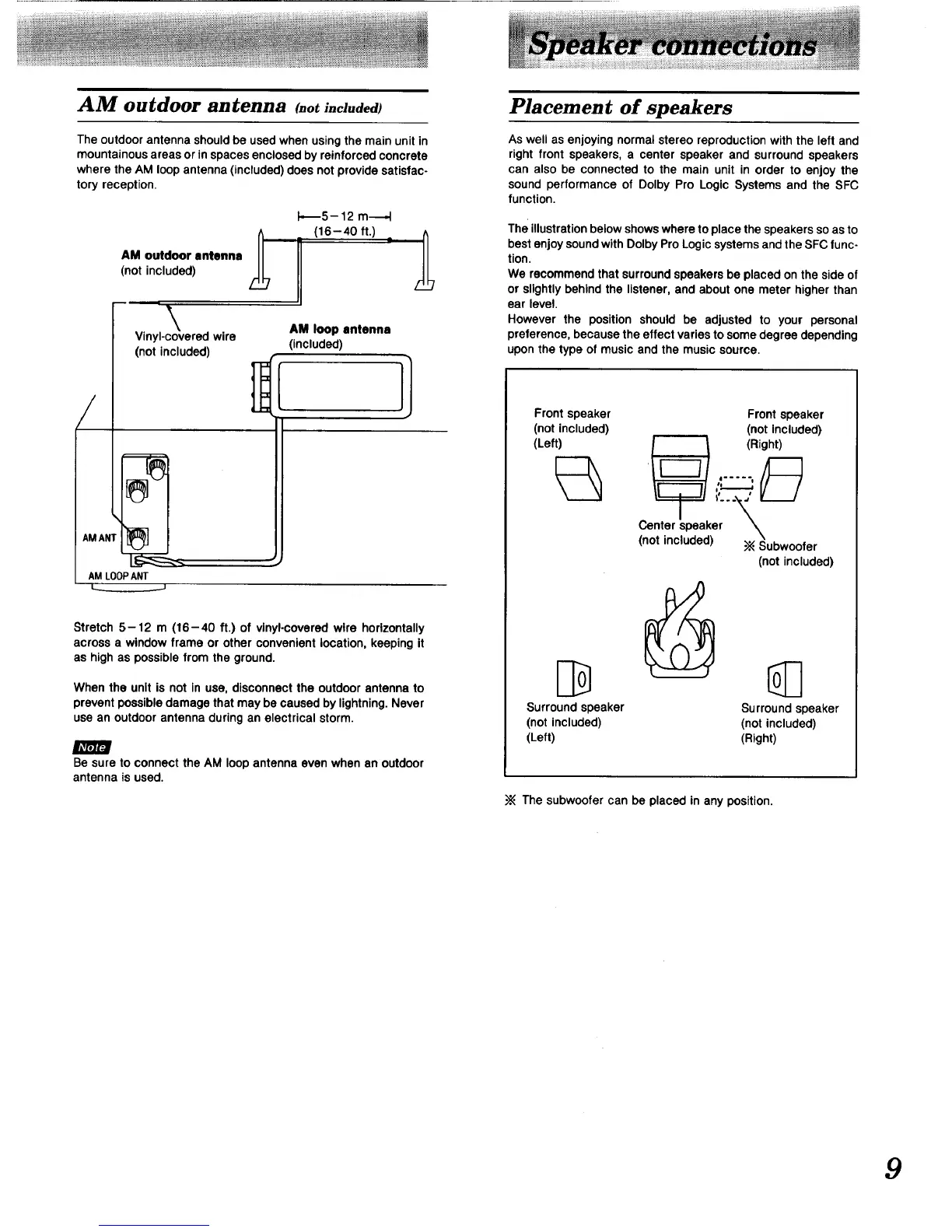

AM outdoor antenna ( ot i,,ol., em
The outdoor antenna should be used when using the main unit in
mountainous areas or in spaces enclosed by reinforced concrete
where the AM loop antenna (included) does not provide satisfac-
tory reception.
/
AM AI_
AM LOOPANT
t.
AM outdoor antenna
(not included)
V _ loop antenna
inyl-covered wire AM
(not included) (included)
Stretch 5-12 m (16-40 ft.) of vinyl-coveredwtre horizontally
across a windowframe or other convenientlocation,keepingit
as highas possiblefrom the ground.
When the unit is not in use, disconnect the outdoor antenna to
prevent possible damage that may be caused by lightning. Never
use an outdoor antenna during an electrical storm.
Be sure to connect the AM loop antenna even when an outdoor
antenna is used.
Placement of speakers
As well as enjoying normal stereo reproduction with the left and
right front speakers, a center speaker and surround speakers
can also be connected to the main unit in order to enjoy the
sound performance of Dolby Pro Logic Systems and the SFC
function.
The illustration below shows where to place the speakers so as to
best enjoy sound with Dolby Pro Logic systems and the SFC func-
tion.
We recommend that surround speakers be placed on the side of
or slightly behind the listener, and about one meter higher than
ear level.
However the position should be adjusted to your personal
preference, because the effect varies to some degree depending
upon the type of music and the music source.
Front speaker
(not included)
(Left)
Front speaker
(not Included)
t.. o_ L_......._
Center speaker
(not included) -_ Subwoofer
(not included)
Surround speaker
(not included)
(Left)
Surround speaker
(not included)
(Right)
•_ The subwoofer can be placed in any position.
9
