Technics SB-AS40 User Manual

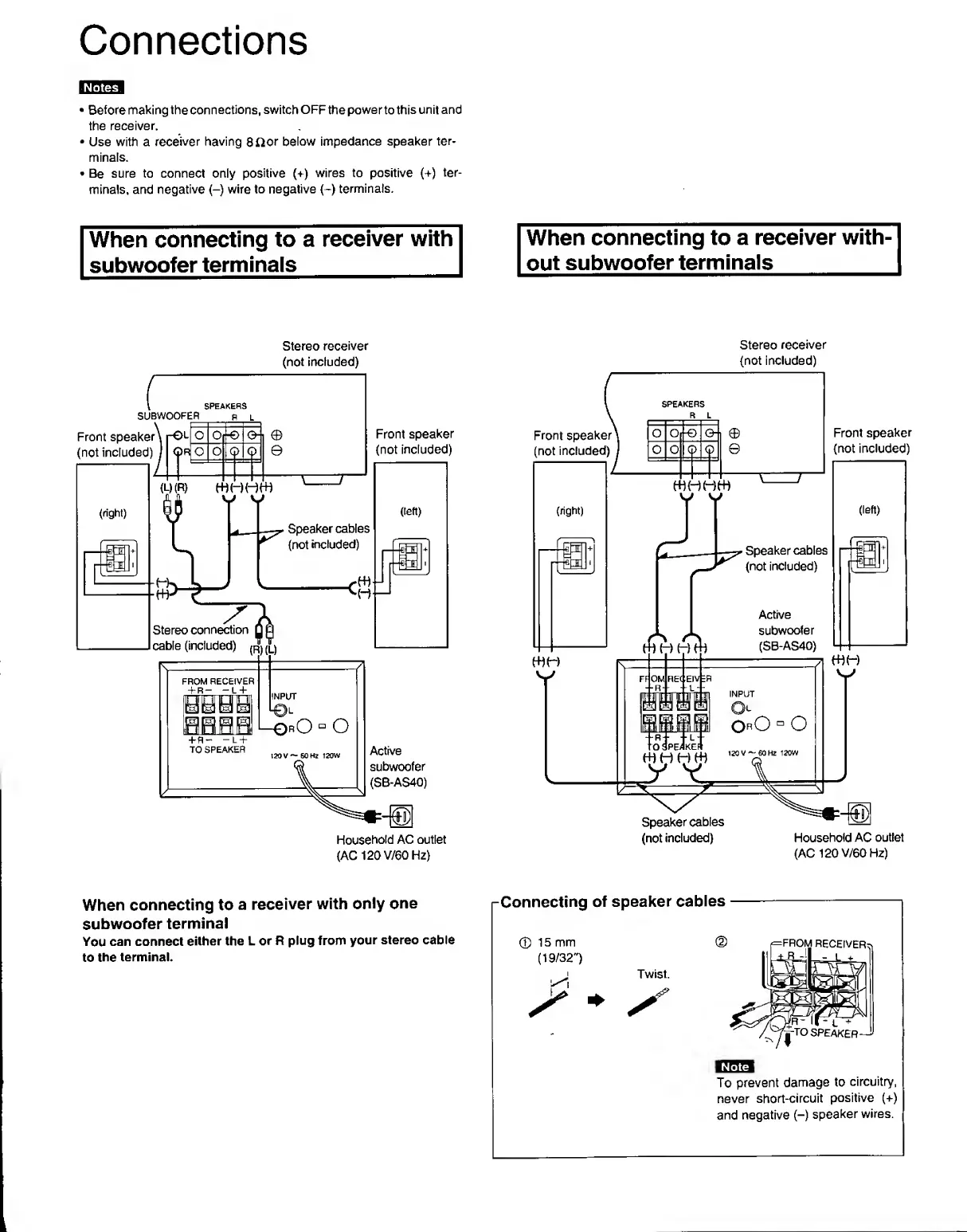

Connections
CQ33
• Before making the connections, switch OFF the power to this unit and
the receiver.
• Use with a receiver having 8ftor below impedance speaker ter¬
minals.
• Be sure to connect only positive (+) wires to positive (+) ter¬
minals, and negative (-) wire to negative (-) terminals.
When connecting to a receiver with
subwoofer terminals
When connecting to a receiver with¬
out subwoofer terminals

Technics SB-AS40 Specifications

Amplifier Section

continuous power output	50 W (4 ft)
input sensitivity/impedance (RCA-type pin-plug Jack)	54 mV/10 kft
input sensitivity/impedance (Push-type terminals)	1.1 V/4.7 kft

Power

power consumption	60 W
power supply	AC 120 V, 60 Hz

Speaker Section

woofer size	17 cm (6-11/16")
impedance	4 ft
frequency range (-16 dB)	32 Hz-350 Hz

General

dimensions (WxHxD)	384 x 284 x 294 mm
dimensions (WxHxD in inches)	15- /a x^'3/i6 x ^'9/ie
weight	8.5 kg (18.7 lb)
