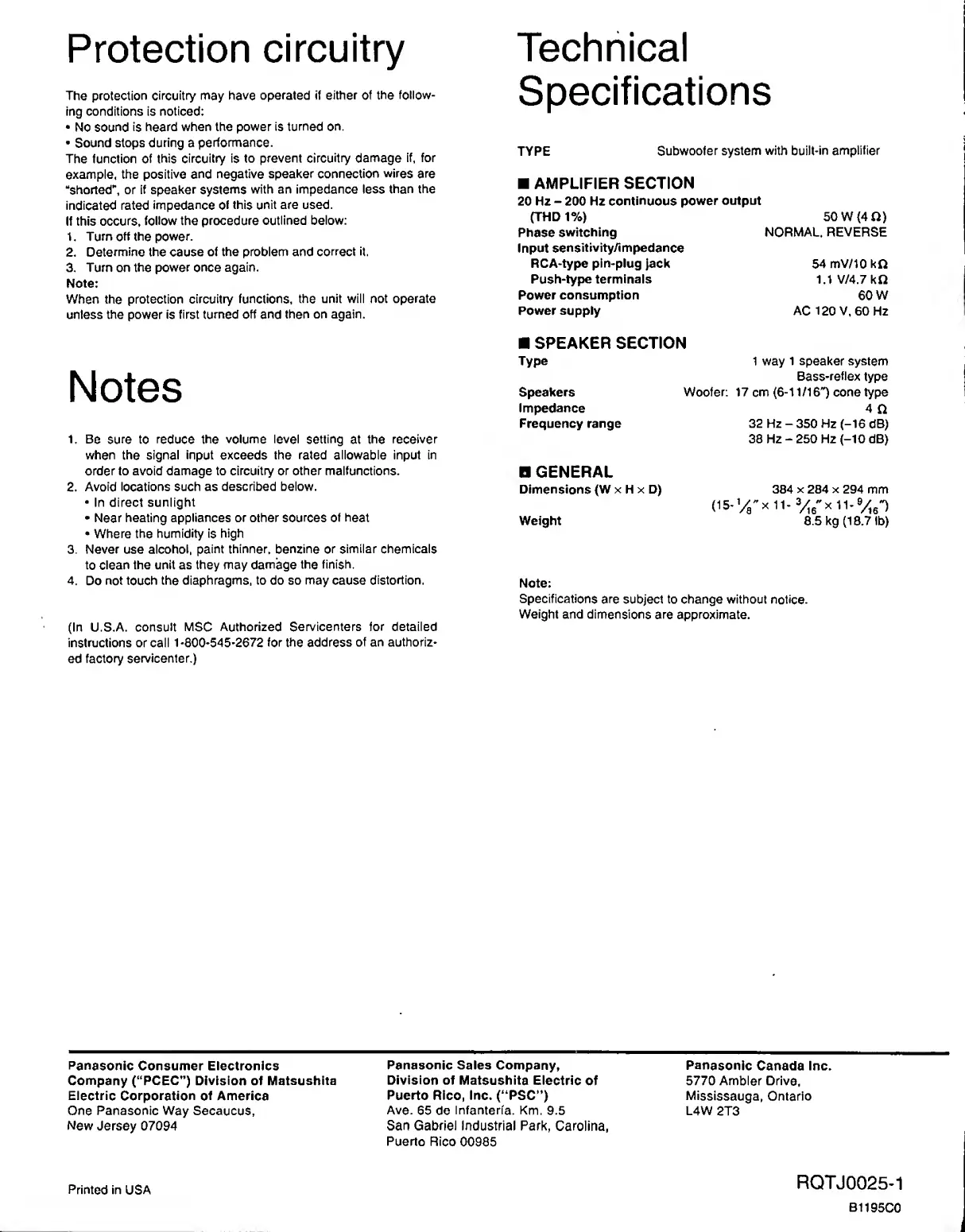

Protection
circuitry
The
protection
circuitry
may
have
operated
if
either
of
the
follow¬
ing
conditions
is
noticed:
•
No
sound
is
heard
when
the
power
is
turned
on.
•
Sound
stops
during
a
performance.
The
function
of
this
circuitry
is
to
prevent
circuitry
damage
if,
for
example,
the
positive
and
negative
speaker
connection
wires
are
“shorted",
or
if
speaker
systems
with
an
impedance
less
than
the
indicated
rated
impedance
of
this
unit
are
used.
If
this
occurs,
follow
the
procedure
outlined
below:
1.
Turn
off
the
power.
2.
Determine
the
cause
of
the
problem
and
correct
it.
3.
Turn
on
the
power
once
again.
Note:
When
the
protection
circuitry
functions,
the
unit
will
not
operate
unless
the
power
is
first
turned
off
and
then
on
again.
Notes
1.
Be
sure
to
reduce
the
volume
level
setting
at
the
receiver
when
the
signal
input
exceeds
the
rated
allowable
input
in
order
to
avoid
damage
to
circuitry
or
other
malfunctions.
2.
Avoid
locations
such
as
described
below.
•
In
direct
sunlight
•
Near
heating
appliances
or
other
sources
of
heat
•
Where
the
humidity
is
high
3.
Never
use
alcohol,
paint
thinner,
benzine
or
similar
chemicals
to
clean
the
unit
as
they
may
damage
the
finish.
4.
Do
not
touch
the
diaphragms,
to
do
so
may
cause
distortion.
(In
U.S.A.
consult
MSC
Authorized
Servicenters
for
detailed
instructions
or
call
1*800-545*2672
for
the
address
of
an
authoriz¬
ed
factory
servicenter.)
Technical
Specifications
TYPE
Subwoofer
system
with
built-in
amplifier
■
AMPLIFIER
SECTION
20
Hz
-
200
Hz
continuous
power
output
(THD
1%)
50
W
(4
ft)
Phase
switching
Input
sensitivity/impedance
NORMAL.
REVERSE
RCA-type
pin-plug
Jack
54
mV/10
kft
Push-type
terminals
1.1
V/4.7
kft
Power
consumption
60
W
Power
supply
AC
120
V,
60
Hz
■
SPEAKER
SECTION
Type
1
way
1
speaker
system
Bass-reflex
type
Speakers
Woofer:
17
cm
(6-11/16")
cone
type
Impedance
4
ft
Frequency
range
32
Hz-350
Hz
(-16
dB)
38
Hz-250
Hz
(-10
dB)
BGENERAL
Dimensions
(WxHxD)
384
x
284
x
294
mm
(15-
/a
x
^
'
3
/i6
x
^'
9
/ie
)
Weight
8.5
kg
(18.7
lb)
Note:
Specifications
are
subject
to
change
without
notice.
Weight
and
dimensions
are
approximate.
Panasonic
Consumer
Electronics
Company
(“PCEC”)
Division
of
Matsushita
Electric
Corporation
of
America
One
Panasonic
Way
Secaucus,
New
Jersey
07094
Panasonic
Sales
Company,
Division
of
Matsushita
Electric
of
Puerto
Rico,
Inc.
(“PSC”)
Ave.
65
de
Infanteria.
Km.
9.5
San
Gabriel
Industrial
Park,
Carolina,
Puerto
Rico
00985
Panasonic
Canada
Inc.
5770
Ambler
Drive,
Mississauga,
Ontario
L4W
2T3
Printed
in
USA
RQTJ0025-1
B1195C0
