Technics SC-EH760 Service Manual

- Correction Procedure
1. To check for correct insertion of the flat cables.
- Insert each connector until you hear a click.
- Insert the flat cables at the back of the unit in the order
indicated. Refer to Fig. 7-2.
Make sure the white side of the cables is on your right side.
Refer to Fig. 7-3.

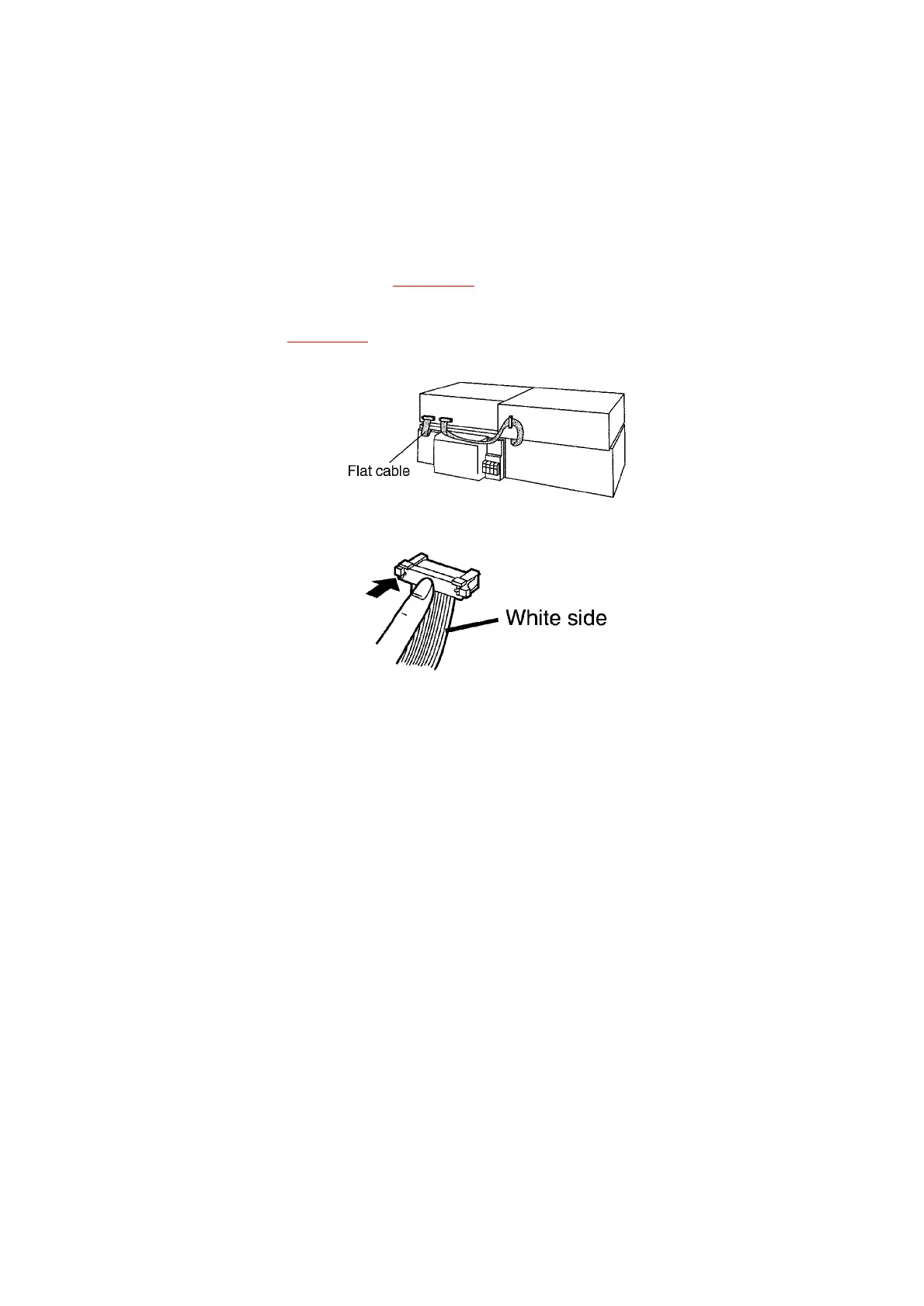

Fig. 7-2.
Fig. 7-3.
2. Breakage of the flat cables. (Check and replace.)
3. If the problem is not corrected by items 1 and 2 above, this
indicates a faulty IC.
SA-EH760:
IC901 (LC8A524A5N28)
SL-EH760:
IC451 (M38504M6200F)
RS-EH760:
IC701 (M38503M2400F)
Check these ICs and replace.
7.3.2. F61
- Problem or condition
When the power switch is switched on, it automatically switches
back off, making it impossible to switch power on.
- Correction procedure
Faulty Tuner/Amplifier (SA-EH760) output IC (IC601). (When a DC
