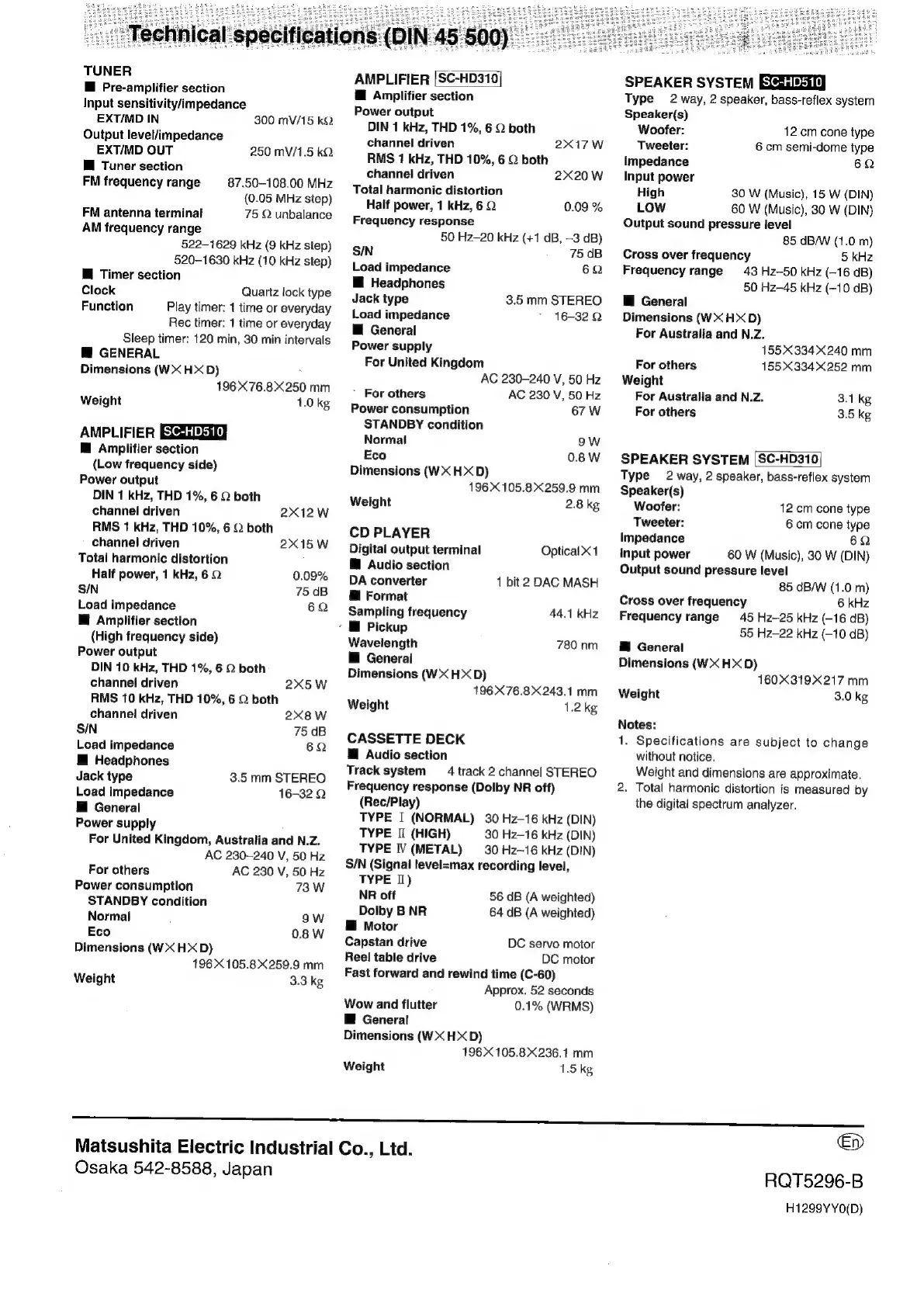

Technics SC-HD510 User Manual

TUNER
Hf Pre-amplifier section
Input sensitivity/impedance
EXT/MD IN 300 MV/15 kQ
Output level/impedance
EXT/MD OUT 250 mV/1.5 kQ
Mi Tuner section
FM frequency range 87.50-108.00 MHz
(0.05 MHz step)
FM antenna terminal 75 Q unbalance
AM frequency range
522-1629 kHz (9 kHz step)
520-1630 kHz (10 kHz step)
lf Timer section
Clock
Function
Quartz lock type
Play timer: 1 time or everyday
Rec timer: 1 time or everyday
Sleep timer: 120 min, 30 min intervals
@ GENERAL
Dimensions (WX HX D) .
196 X76.8X250 mm
Weight 1.0 kg
AMPLIFIER
M@ Amplifier section
(Low frequency side)
Power output
DIN 1 kHz, THD 1%, 6 Q both
channel driven 2X12 W
RMS 1 kHz, THD 10%, 6 2 both
channel driven 2x15 W
Total harmonic distortion
Half power, 1 kHz, 6 Q 0.09%
S/N 75 dB
Load impedance 6Q
Hf Amplifier section
(High frequency side)
Power output
DIN 10 kHz, THD 1%, 6 Q both
channel driven 2X5 W
RMS 10 kHz, THD 10%, 6 Q both
channel driven 2X8 W
S/N 75 dB
Load impedance 62
Ml Headphones
Jack type 3.5 mm STEREO
Load impedance 16-32 Q
I General
Power supply
For United Kingdom, Australia and N.Z.
AC 230-240 V, 50 Hz
For others AC 230 V, 50 Hz
Power consumption 73 W
STANDBY condition
Normal 9W
Eco 0.8 W
Dimensions (WX HX D)
196 X105.8X259.9 mm
Weight 3.3 kg
AMPLIFIER [SC-HD310|
@ Amplifier section
Power output
DIN 1 kHz, THD 1%, 6 Q both
channel driven
RMS 1 kHz, THD 10%, 6 © both
2X17W
channel driven 2X20 W
Total harmonic distortion
Half power, 1 kHz, 6 Q 0.09 %
Frequency response
50 Hz-20 kHz (+1 dB, -3 dB)
S/N 75 dB
Load impedance 6Q
Hi Headphones
Jack type 3.5 mm STEREO
Load impedance 16-32 QO
i General
Power supply
For United Kingdom
AC 230-240 V, 50 Hz
~ For others AC 230 V, 50 Hz
Power consumption 67 W
STANDBY condition
Normal 9W
Eco 0.8 W
Dimensions (WX HX D)
196 X105.8X259.9 mm
Weight 2.8kg
CD PLAYER
Digital output terminal OpticalX1
M@ Audio section
DA converter
@ Format
1 bit 2 DAC MASH
Sampling frequency 44.1 kHz
- MI Pickup
Wavelength 780 nm
i General
Dimensions (WX HX D)
196X76.8X243.1 mm
Weight 1.2 kg
CASSETTE DECK
i Audio section
Track system 4 track 2 channel STEREO
Frequency response (Dolby NR off)
(Rec/Play)
TYPE I (NORMAL) 30 Hz-16 kHz (DIN)
TYPE II (HIGH) 30 Hz-16 kHz (DIN)
TYPE WV (METAL) 30 Hz—-16 kHz (DIN)
S/N (Signal level=max recording level,
TYPE II)
NR off 56 dB (A weighted)
Dolby B NR 64 dB (A weighted)
Bi Motor
Capstan drive DC servo motor
Reel table drive DC motor
Fast forward and rewind time (C-60)
Approx. 52 seconds
Wow
and
flutter
0.1%
(WRMS)
@
General
Dimensions
(WX
HX
D)
196 X 105.8X236.1 mm
Weight 1.5 kg
SPEAKER SYSTEM
Type 2 way, 2 speaker, bass-reflex system
Speaker(s)
Woofer: 12 cm cone type
Tweeter: 6 cm semi-dome type
impedance 6Q
Input power
High 30 W (Music), 15 W (DIN)
LOW 60 W (Music), 30 W (DIN)
Output sound pressure level
85 dB/W (1.0 m)
Cross over frequency 5 kHz
Frequency range 43 Hz--50 kHz (-16 dB)
50 Hz—-45 kHz (-10 dB)
Mi General
Dimensions (WX HX D)
For Australia and N.Z.
155 X 334240 mm
For others 155% 334X252 mm
Weight
For Australia and N.Z. 3.1 kg
For others 3.5 kg
SPEAKER SYSTEM [SC-HD310
Type 2 way, 2 speaker, bass-reflex system
Speaker(s)
Woofer: 12 cm cone type
Tweeter: 6 cm cone type
Impedance
6Q
Input power 60 W (Music), 30 W (DIN)
Output sound pressure level
85 dB/W (1.0 m)
Cross over frequency 6 kHz
Frequency range 45 Hz~25 kHz (-16 dB)
55 Hz-22 kHz (-10 dB)
@ General
Dimensions (WX HX D)
160319217 mm
Weight 3.0 kg
Notes:
1. Specifications are subject to change
without notice.
Weight and dimensions are approximate.
2. Total harmonic distortion is measured by
the digital spectrum analyzer.
CC
orl
Matsushita
Electric
Industrial
Co.,
Ltd.
Osaka 542-8588, Japan
Ep
RQT5296-B
H1299YY0(D)
