Adjusting the sound field and sound quality a
SIGNAL LEVEL. |
INPUT SELECTOR
SOURCE a.
TAPE a O

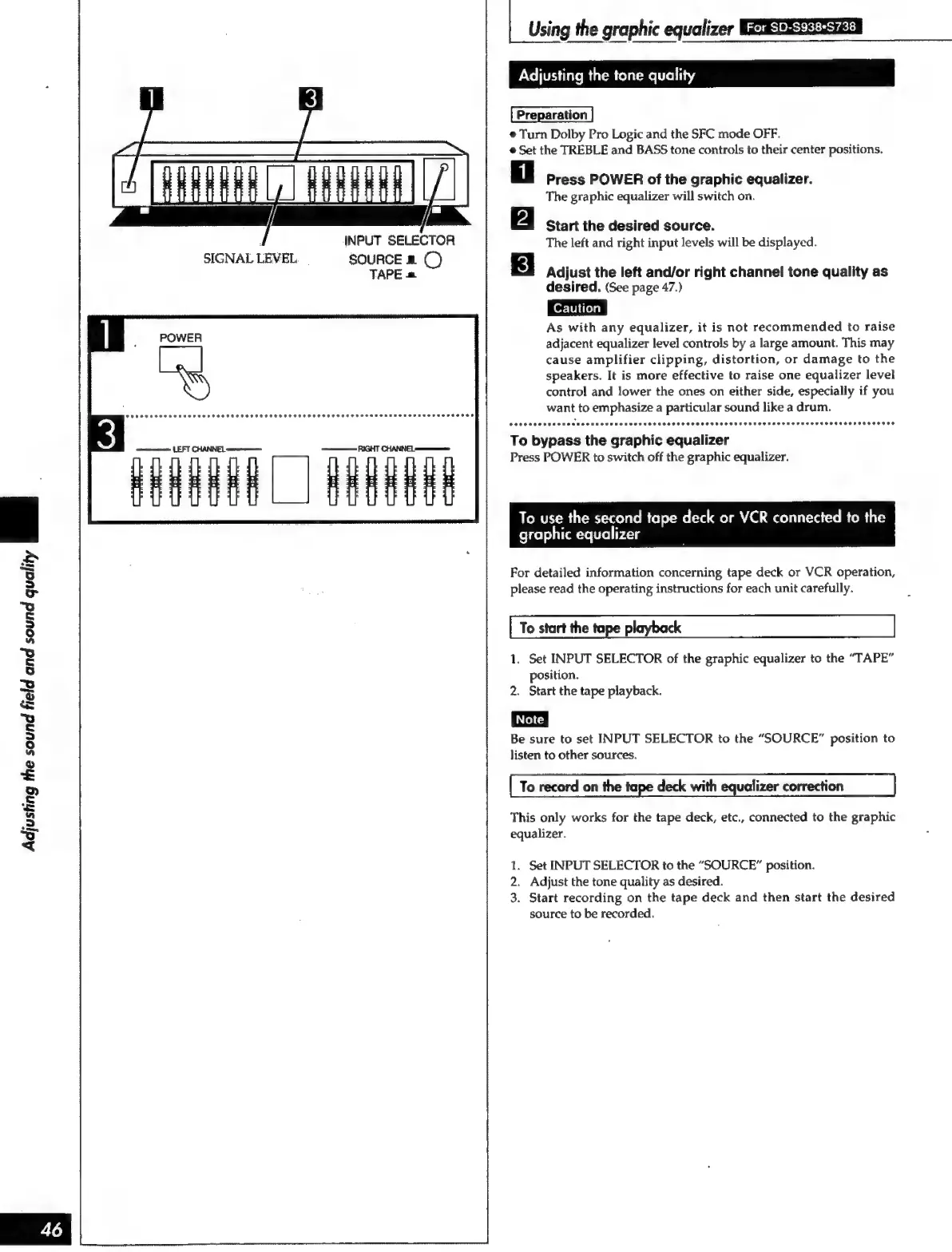

|_Using
the
graphic
equalizer
CEOS
Adjusting the tone quality
è Turn Dolby Pro Logic and the SFC mode OFF.
è Set the TREBLE and BASS tone controls to their center positions.
Press POWER of the graphic equalizer.
The graphic equalizer will switch on.
Start the desired source.
The left and right input levels will be displayed.
Adjust the left and/or right channel tone quality as
desired. (See page 47.)
As with any equalizer, it is not recommended to raise
adjacent equalizer level controls by a large amount. This may
cause amplifier clipping, distortion, or damage to the
speakers. It is more effective to raise one equalizer level
control and lower the ones on either side, especially if you
want to emphasize a particular sound like a drum.
To bypass the graphic equalizer
Press POWER to switch off the graphic equalizer.
To use the second tape deck or VCR connected to the
graphic equalizer l
For detailed information concerning tape deck or VCR operation,
please read the operating instructions for each unit carefully.
To start the tape playback
1. Set INPUT SELECTOR of the graphic equalizer to the “TAPE”
position.
2. Start the tape playback.
Be sure to set INPUT SELECTOR to the “SOURCE” position to
listen to other sources.
To record on the tape deck with equalizer correction
This only works for the tape deck, ete., connected to the graphic
equalizer.
1. Set INPUT SELECTOR to the “SOURCE” position.
Adjust the tone quality as desired.
Start recording on the tape deck and then start the desired
source to be recorded.
