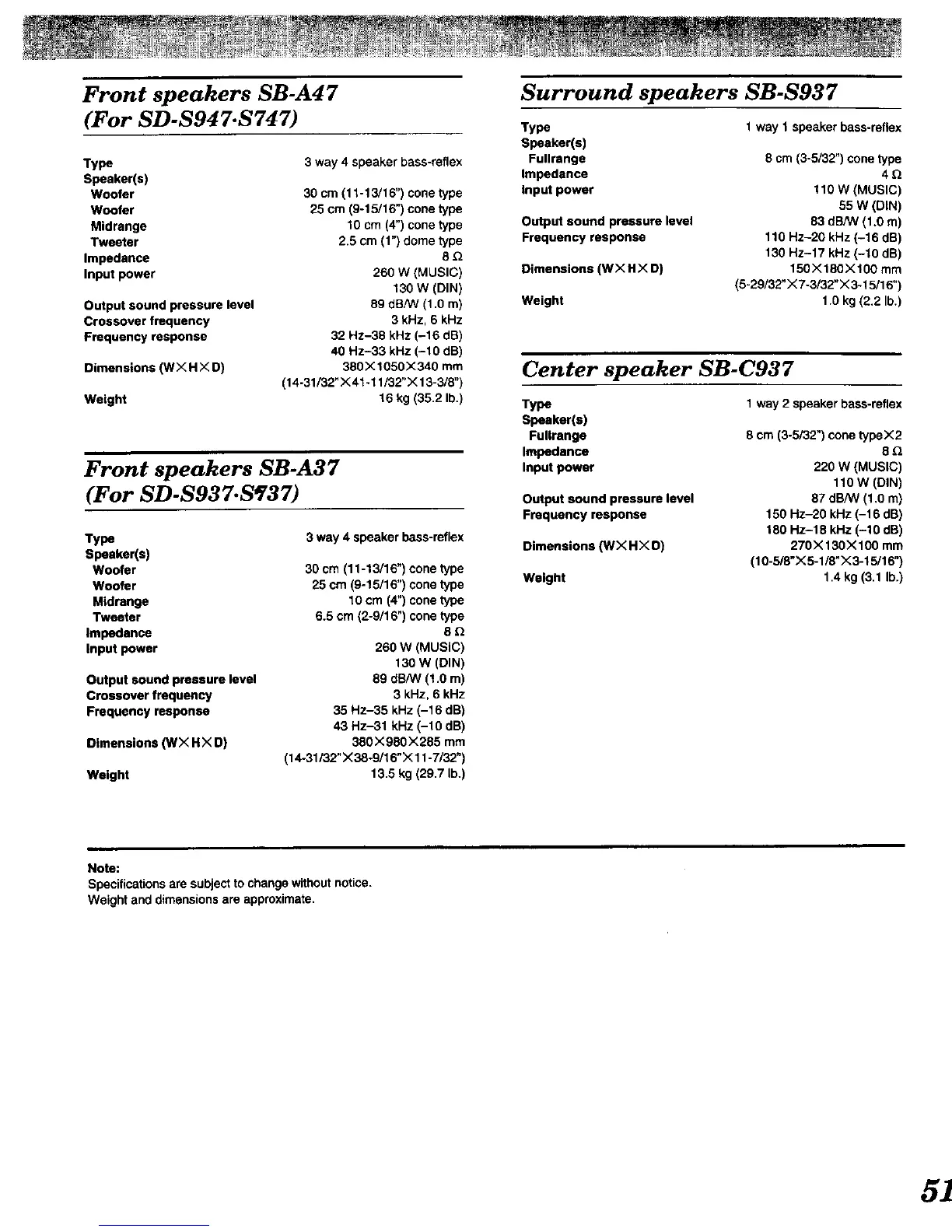

Technics SD-S747

Front speakers SB-A47
(For SD-$947.$747)
Type 3 way 4 speaker bass-reflex
Speaker(s)
Woofer
Woofer
Midrange
Tweeter
Impedance
Input power
Output sound pressure level
Crossover frequency
Frequency response
Dimensions (WX H X D)
Weight
30 cm (11-13/16") cone type
25 cm (9-15/16") cone type
10 cm (4") cone type
2.5 cm (1") dome type
8_
260 W (MUSIC)
130 W (DIN)
89 dB/W (1.0 m)
3 kHz, 6 kHz
32 Hz-38 kHz (-16 dB)
40 Hz-33 kHz (-10 dB)
380X1050X340 mm
(14-31/32" X41-11/32"X 13-3/8")
16 kg (35.2 lb.)
Front speakers SB-A37
(For SD-$937.S 37)
Type 3 way 4 speaker bass-reflex
Speaker(s)
Woofer
Woofer
Midrenge
Tweeter
Impedance
Input power
Output sound pressure level
Crossover frequency
Frequency response
Dimensions (WX H X D)
Weight
30 cm (11-13/16") cone type
25 cm (9-15/16") cone type
10 cm (4") cone type
6.5 cm (2-9/16") cone type
8Q
260 W (MUSIC)
130 W (DIN)
89 dB/W (1.0 m)
3 kHz, 6 kHz
35 Hz-35 kHz (-16 dB)
43 Hz-31 kHz (-10 dB)
380X980X285 mm
(14-31i32"X38*9/16"X 11-7/32")
13.5 kg (29.7 lb.)
Surround speakers SB-$937
Type
Speaker(s)
Fullrenge
Impedance
Input power
Output sound pressure level
Frequency response
Dimensions (WX HX D)
Weight
1 way 1 speaker bass-reflex
8 cm (3-5/32") cone type
4_
110 W (MUSIC)
55 W (DIN)
83 dB/W (1.0 m)
110 Hz-2O kHz (-16 dB)
130 Hz-17 kHz (-10 dB)
150Xt80X100 mm
(5-29/32" X7-3/32" X 3-15/16")
1.0 kg (2.2 lb.)
Center speaker SB-C937
Type
Spseker(s)
Fullrange
Impedance
Input power
Output sound pressure level
Frequency response
Dimensions (WX HX D)
Weight
1 way 2 speaker bass-reflex
8 cm (3-5/32") cone typeX2
8Q
220 W (MUSIC)
110 W (DIN)
87 dB/W (1,0 m)
150 Hz-20 kHz (-16 dB)
180 Hz-18 kHz (-10 dB)
270X 130X100 mm
(10-5/8"X5-1/8"X3-15/16")
1,4 kg (3,1 lb.)
Note:
Specifications are subject to change without notice,
Weight and dimensions are approximate,
51
