Front " Center Front
speaker(L) speaker speaker(R)
speaker(L) speaker(R)
=[ ] °Oo
ifl|llll
[lllllJ
DOLBY
PRO LOGIC
For SURROUND mode
For 3 STEREO mode
CENTER MODE

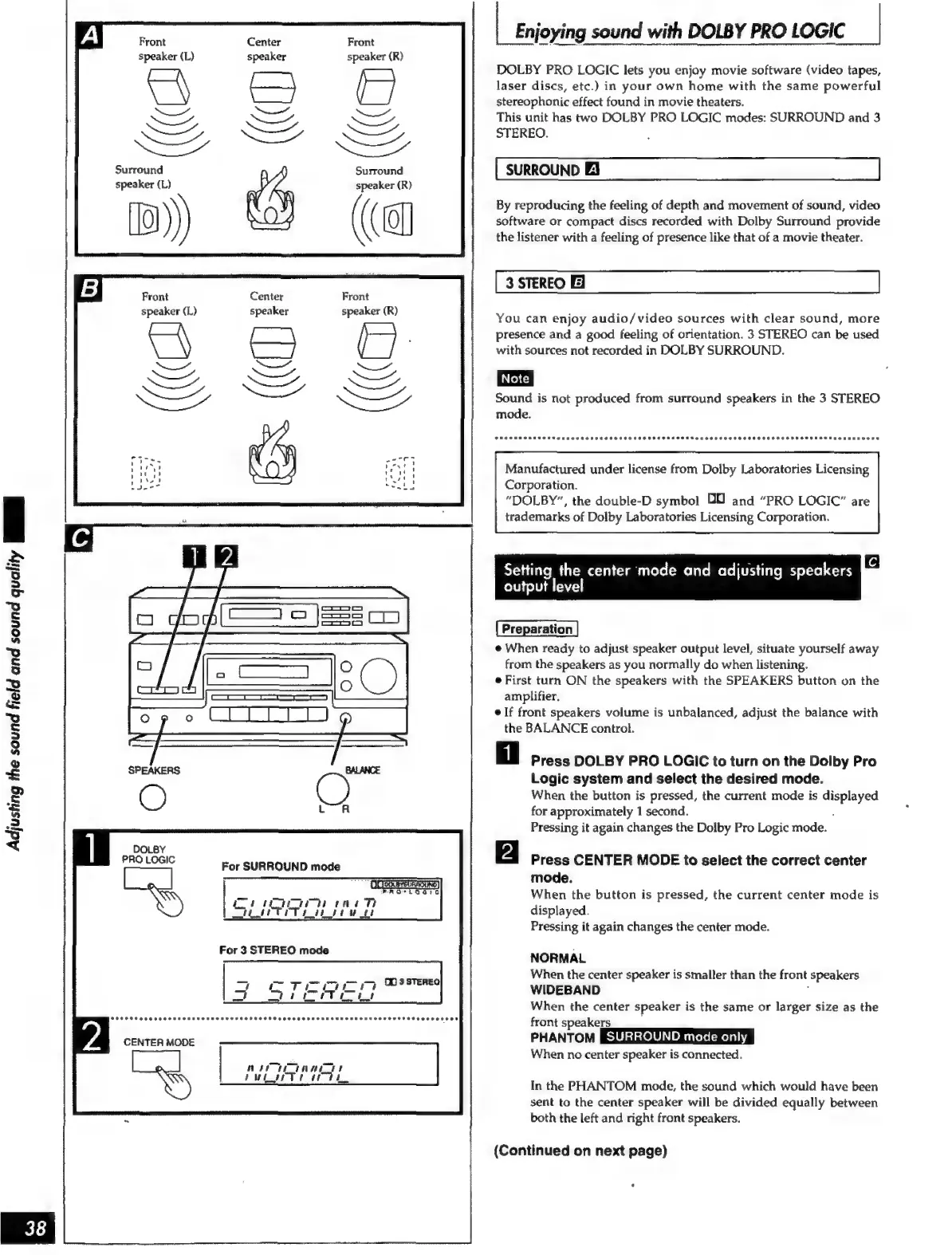

DOLBY PRO LOGIC letsyou enjoy movie software(videotapes,
laserdiscs,etc.)in your own home with the same powerful
stereophoniceffectfound inmovie theaters.
Thisunit has two DOLBY PRO LOGIC modes: SURROUND and 3
STEREO.
ISUnOUND[] I
By reproducing the feeling of depth and movement of sound, video
software or compact discs recorded with Dolby Surround provide
the listener with a feeling of presence like that of a movie theater.
You can enjoy audio/video sources with clear sound, more
presence and a good feeling of orientation. 3 STEREO can be used
with sources not recorded in DOLBY SURROUND.
mm
Sound is not produced from surround speakers in the 3 STEREO
mode.
Manufactured under license from Dolby Laboratories Licensing
Corporation.
"DOLBY", the double-D symbol [13 and "PRO LOGIC" are
trademarks of Dolby Laboratories Licensing Corporation.
[]
JPreparationJ
• When ready to adjustspeakeroutput level,situateyourselfaway
from thespeakersasyou normallydo when listening.
• Firstturn ON the speakers with the SPEAKERS button on the
amplifier.
•Iffrontspeakersvolume isunbalanced,adjustthe balancewith
theBALANCE control.
El Press DOLBY PRO LOGIC to turn on the Dolby Pro
Logic system and select the desired mode.
When the button is pressed, the current mode is displayed
for approximately 1 second.
Pressing it again changes the Dolby Pro Logic mode.
B Press CENTER MODE to select the correct center
mode.
When the button is pressed, the current center mode is
displayed.
Pressing it again changes the center mode.
NORMAL
When the center speaker is smaller than the front speakers
WIDEBAND
When the center speaker is the same-6_"_rgliS'_ize as the
front speakers
PHANTOM ;:* _s ,..-.,
When no centerspeakerisconnected.
In thePHANTOM mode, thesound which would have beam
sent to the centerspeaker;willbe divided equallybetween.
both theleftand rightfrontspeakers.
(Continued on next page)
