Technics SH-AC300

Front speaker fo Center Front speaker
(C)
(=!
CI — Y
Subwoofer
Before use be
Surround speaker Surround speaker
(L5)
Center speaker
Surround Surround
speaker speaker
(Left) (Right)
Front speaker Subwoofer
(Left)
Front speaker
(Right)

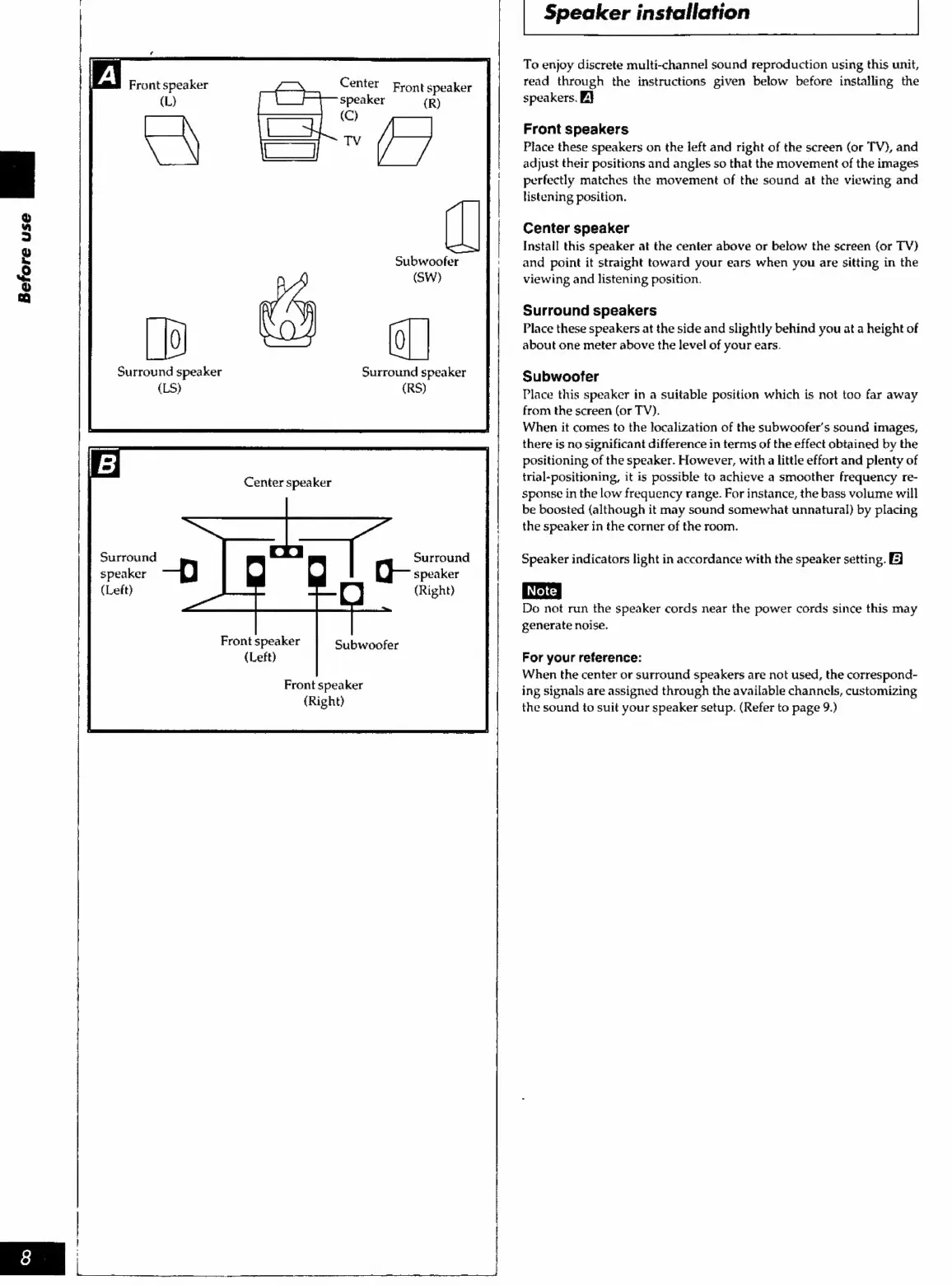

| Speaker installation |
To enjoy discrete multi-channel sound reproduction using this unit,
read through the instructions given below before installing the
speakers. EJ
Front speakers
Place these speakers on the left and right of the screen (or TV), and
adjust their positions and angles so that the movement of the images
perfectly matches the movement of the sound at the viewing and
listening position.
Center speaker
Install this speaker at the center above or below the screen (or TV)
and point it straight toward your ears when you are sitting in the
viewing and listening position.
Surround speakers
Place these speakers at the side and slightly behind you at a height of
about one meter above the level of your ears.
Subwoofer
Place this speaker in a suitable position which is not too far away
from the screen (or TV).
When it comes to the localization of the subwoofer’s sound images,
there is no significant difference in terms of the effect obtained by the
positioning of the speaker. However, with a little effort and plenty of
trial-positioning, it is possible to achieve a smoother frequency re-
sponse in the low frequency range. For instance, the bass volume will
be boosted {although it may sound somewhat unnatural} by placing
the speaker in the corner of the room.
Speaker indicators light in accordance with the speaker setting. E
Do not run the speaker cords near the power cords since this may
generate noise.
For your reference:
When the center or surround speakers are not used, the correspond-
ing signals are assigned through the available channels, customizing
the sound to suit your speaker setup. (Refer to page 9.)
