Technics SH-AC500D

| SH-AC500D

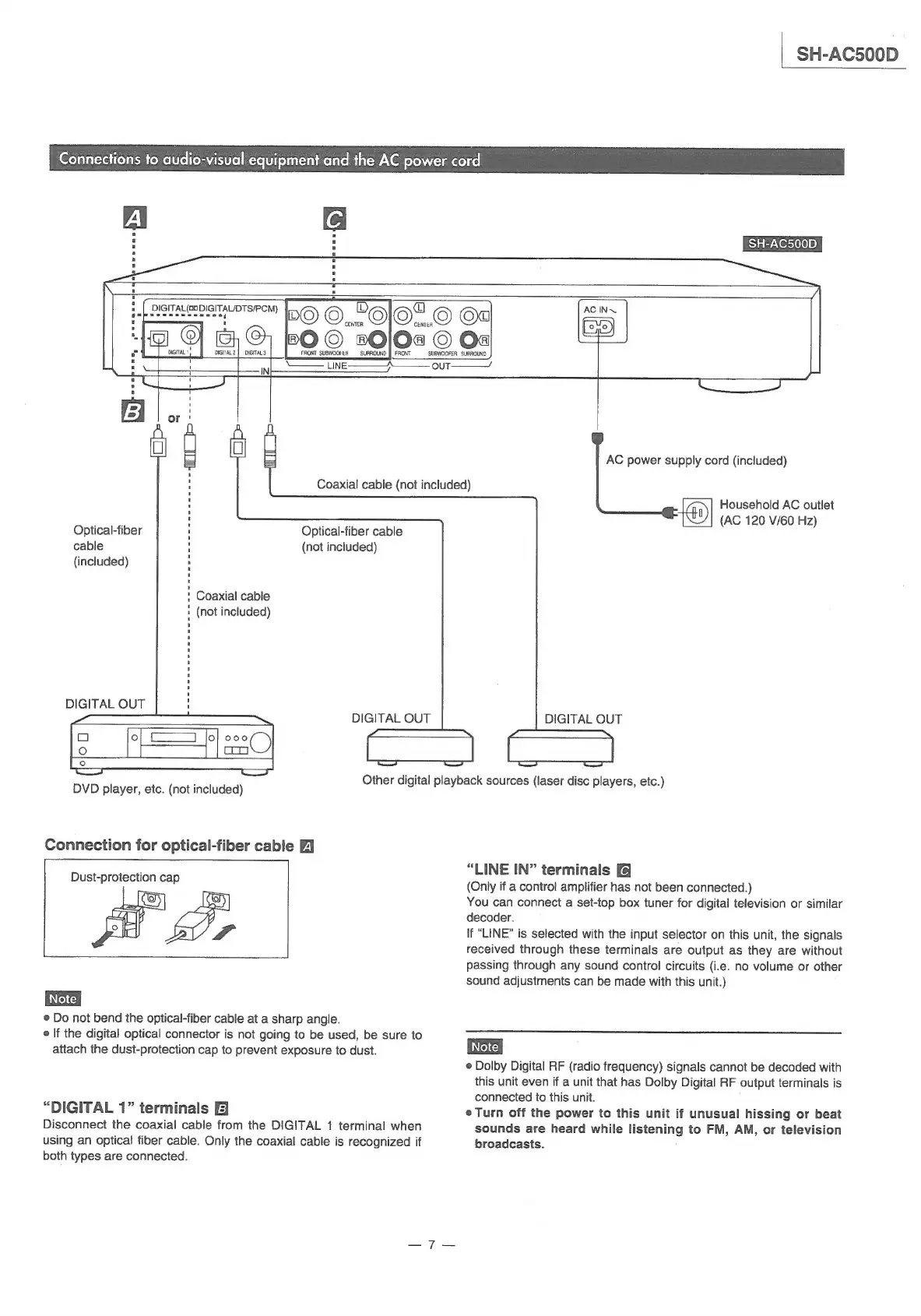

Connections to audio-visual equipment and the AC power cord
Sak Nesayols)
Pata mDaTALDTEFCM 1G) 6)
CENT
PO© 20
FRONT SUBWOOFER
SURROUND j} FRONT
“6|O*_.©
Oa © Oa
SUBWOOFER SURROUND
Optical-fiber Optical-fiber cable
cable (not included)
(included)
Coaxial cable
(not included)
DIGITAL OUT
DVD player, etc. (not included)
Connection for optical-fiber cable
Dust-protection cap
© Do not bend the optical-fiber cable at a sharp angle.
@ If the digital optical connector is not going to be used, be sure to
attach the dust-protection cap to prevent exposure to dust.
“DIGITAL 1” terminals 8
Disconnect the coaxial cable from the DIGITAL 1 terminal when
using an optical fiber cable. Only the coaxial cable is recognized if
both types are connected.
Coaxial cable (not included)
DIGITAL OUT
AC power supply cord (included)
4) Household AC outlet
: (AC 120 V/60 Hz)
DIGITAL OUT
Other digital playback sources (laser disc players, etc.)
“LINE IN” terminals
(Only if a control amplitier has not been connected.)
You can connect a set-top box tuner for digital television or similar
decoder.
If “LINE” is selected with the input selector on this unit, the signals
received through these terminals are output as they are without
passing through any sound control circuits (i.e. no volume or other
sound adjustments can be made with this unit.)
@ Dolby Digital RF (radio frequency) signals cannot be decoded with
this unit even if a unit that has Dolby Digital RF output terminals is
connected to this unit.
Turn off the power to this unit if unusual hissing or beat
sounds are heard while listening to FM, AM, or television
broadcasts.
