Technics SH-AC500D

SH-AC500D

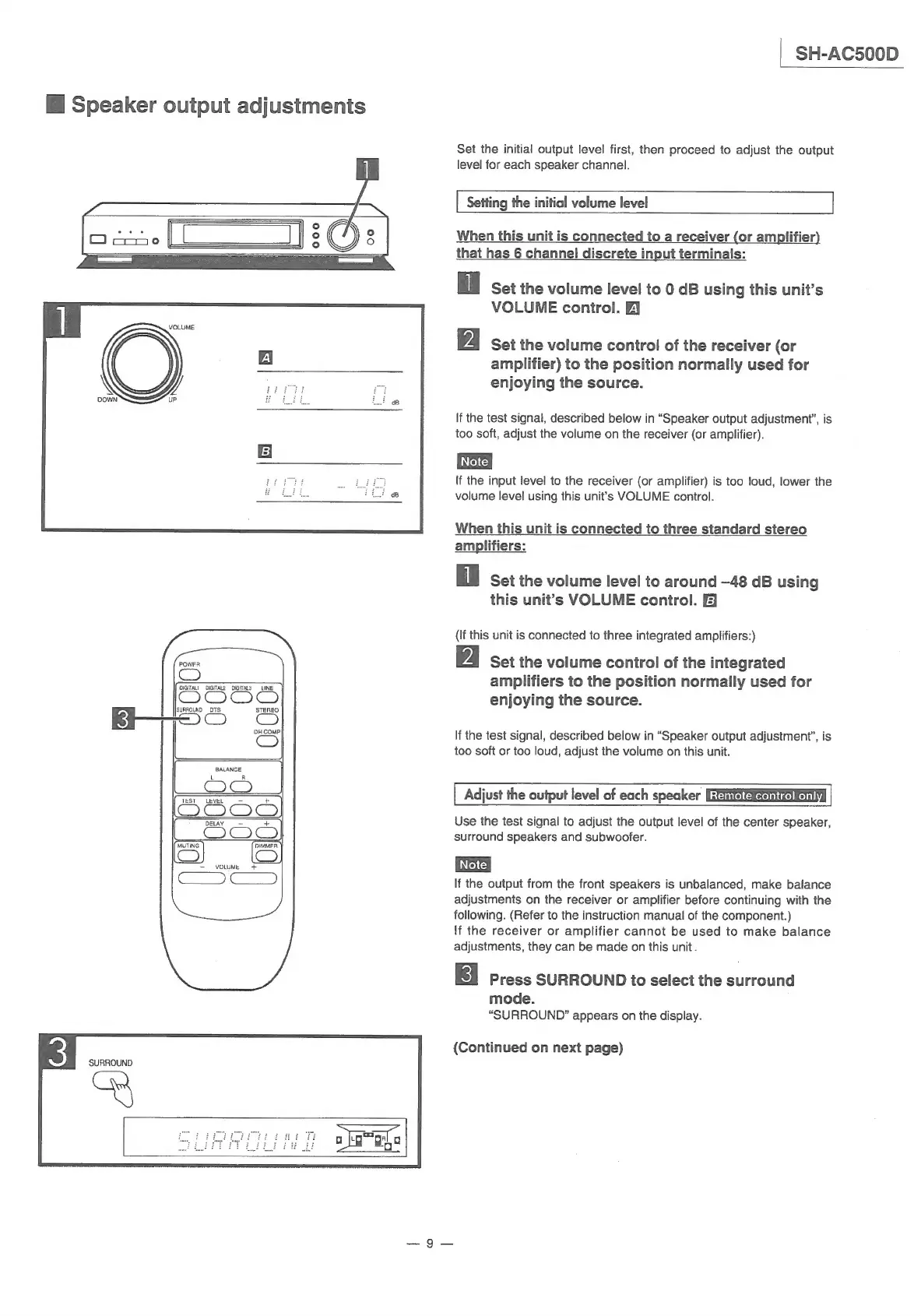

li Speaker output adjustments
Set the initial output level first, then proceed to adjust the output
level for each speaker channel.
| Setting the initial volume level
When this unit is connected to a receiver (or amplifier)
that has 6 channel! discrete input terminals:
Set the volume level to 0 dB using this unit’s
VOLUME control.
Set the volume control of the receiver (or
amplifier) to the position normally used for
yf . #4 enjoying the source.
If the test signal, described below in “Speaker output adjustment”, is
too soft, adjust the volume on the receiver (or amplifier).
If the input level to the receiver (or amplifier) is too loud, lower the
volume level using this unit’s VOLUME control.
When this unit is connected to three standard stereo
amplifiers:
Set the volume level to around -48 dB using
this unit’s VOLUME control. Ej
(If this unit is connected to three integrated amplifiers:)
owen Set the volume control of the integrated
amplifiers to the position normally used for
enjoying the source.
If the test signal, described below in “Speaker output adjustment’, is
too soft or too loud, adjust the volume on this unit.
Adjust the output level of each speaker G@intatkecntmlmen
Use the test signal to adjust the output level of the center speaker,
surround speakers and subwoofer.
MUTING
CO) VOLUME CO Note]
ae | ae If the output from the front speakers is unbalanced, make balance
adjustments on the receiver or amplifier before continuing with the
following. (Refer to the instruction manual of the component.)
If the receiver or amplifier cannot be used to make balance
adjustments, they can be made on this unit.
Press SURROUND to select the surround
mode.
“SURROUND?” appears on the display.
(Continued on next page)
SURROUND
‘
