Technics SH-AV22

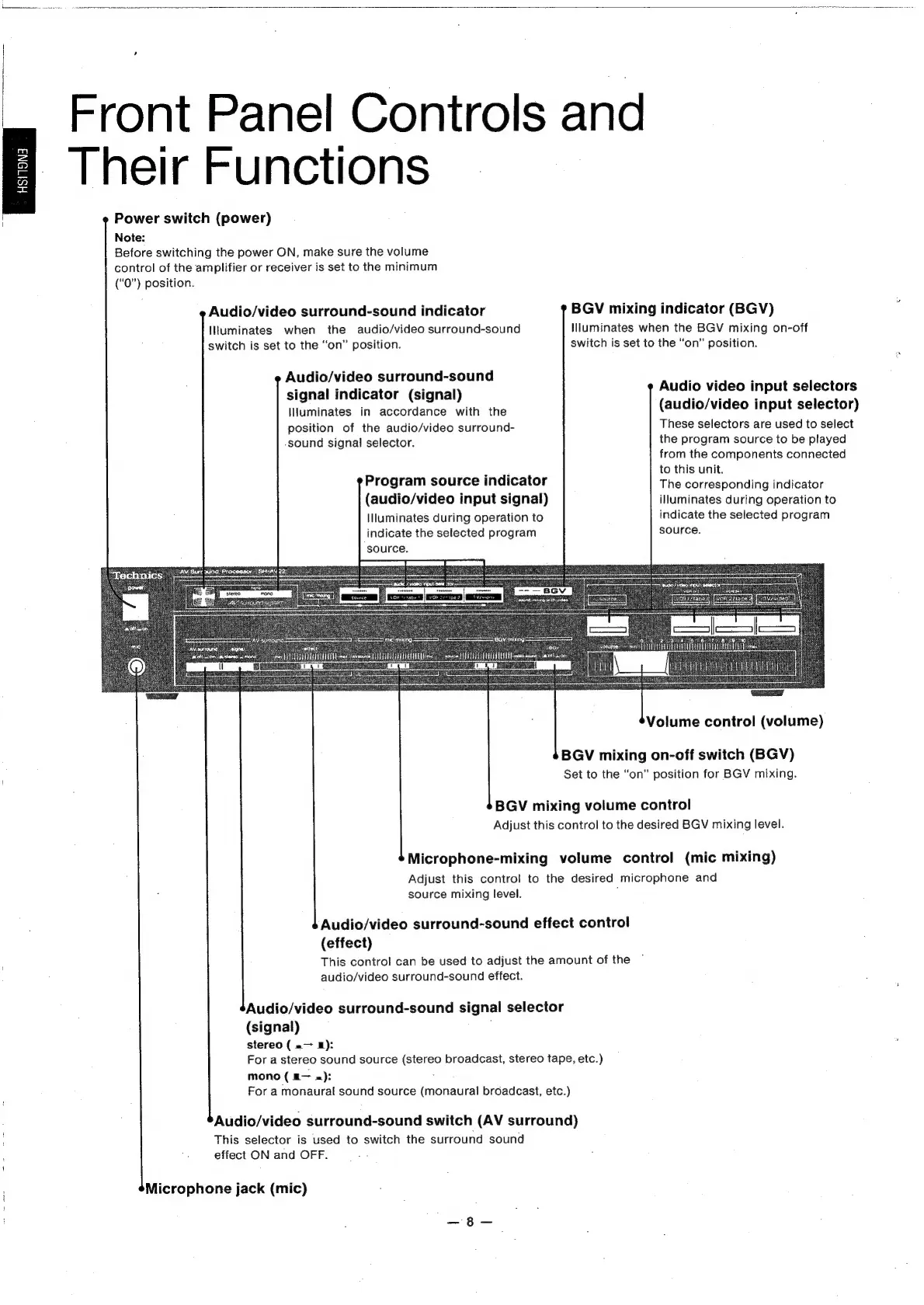

Front Panel Controls and
— Their Functions
Power switch (power)
Note:
Before switching the power ON, make sure the volume
control of the amplifier or receiver is set to the minimum
HS!ONA
(“0”) position.
Audio/video
surround-sound
indicator
BGV
mixing
indicator
(BGV)
illuminates
when
the
audio/video
surround-sound
Iluminates
when
the
BGV
mixing
on-off
switch
is
set
to
the
“on”
position.
switch
is
set
to
the
“on”
position.
Audio/video surround-sound
signal indicator (signal)
IHuminates in accordance with the
position of the audio/video surround-
-sound signal selector.
Program source indicator
(audio/video input signal)
Illuminates during operation to
indicate the selected program
source.
ILALIULIL{ oom tona a aoe
e we Sate Si sae Meet Neb
BBV es: Swoluine some TTT THIELE ELLE irs
i : % i :
o_o 9 m i LU
Audio video input selectors
(audio/video input selector)
These selectors are used to select
the program source to be played
from the components connected
to this unit.
The corresponding indicator
illuminates during operation to
indicate the selected program
source.
Volume control (volume)
BGV mixing on-off switch (BGV)
Set to the “on” position for BGV mixing.
BGV mixing volume control
Adjust this control to the desired BGV mixing level.
Microphone-mixing volume control (mic mixing)
Adjust this control to the desired microphone and
source mixing level.
Audio/video surround-sound effect control
(effect)
This control can be used to adjust the amount of the
audio/video surround-sound effect.
Audio/video surround-sound signal selector
(signal) :
stereo ( .— E):
For a stereo sound source (stereo broadcast, stereo tape, etc.)
mono ( #— =): ar
For a monaural sound source (monaural broadcast, etc.)
Audio/video surround-sound switch (AV surround)
This selector is used to switch the surround sound
effect ON and OFF.
Microphone jack (mic)
